Left Side

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.
  • When removing or installing body side welts, do not allow butyl seal to come in contact with pillar finisher.

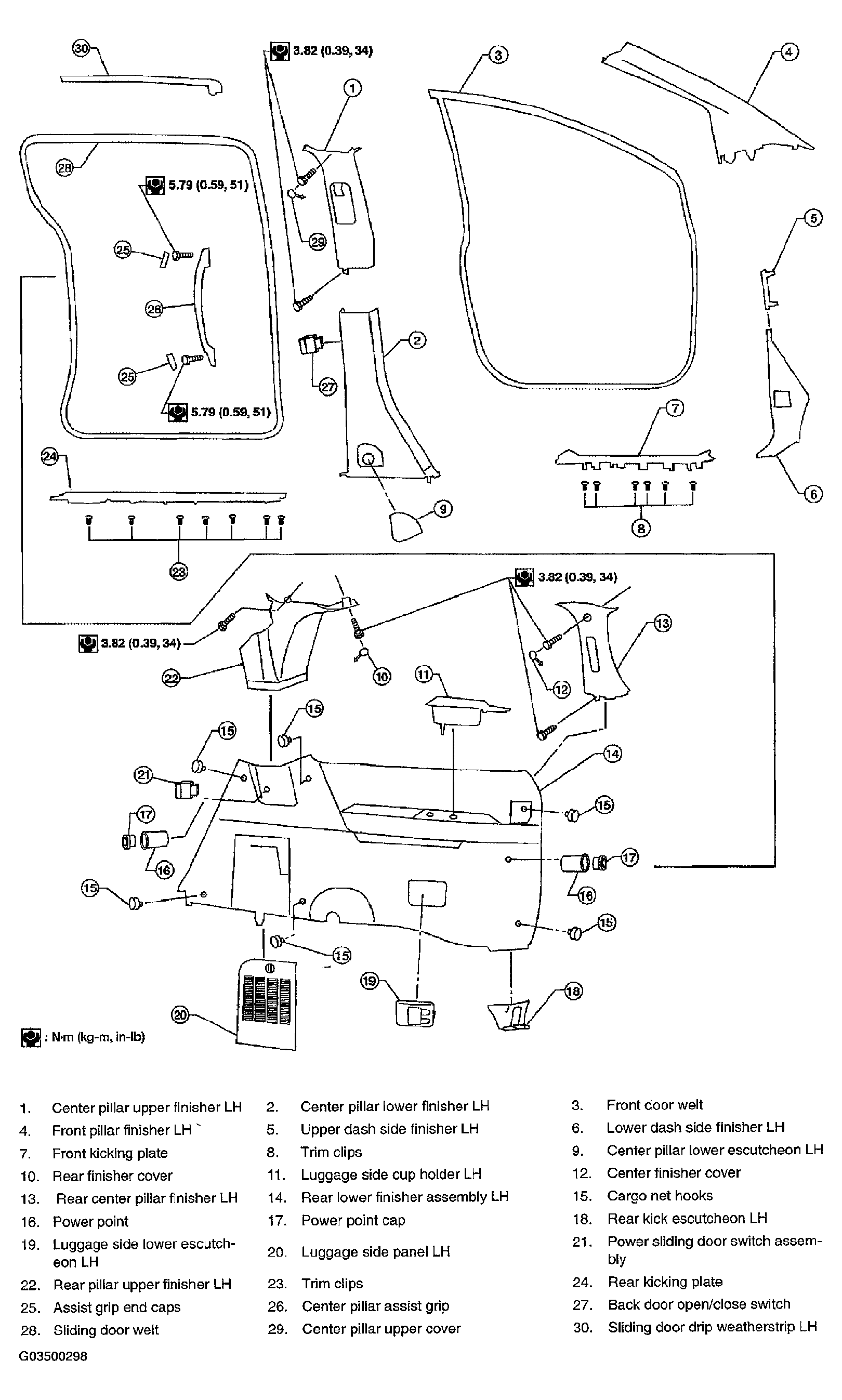

Fig 1: Removing Body Side Trim (Left Side)
G03500298Courtesy of NISSAN MOTOR CO., U.S.A.
