Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sunroof.
  2. Remove screws from left and right sides of wind deflector holder.
  3. Remove the wind deflector from the frame assembly.
  4. Install in the reverse order of removal.

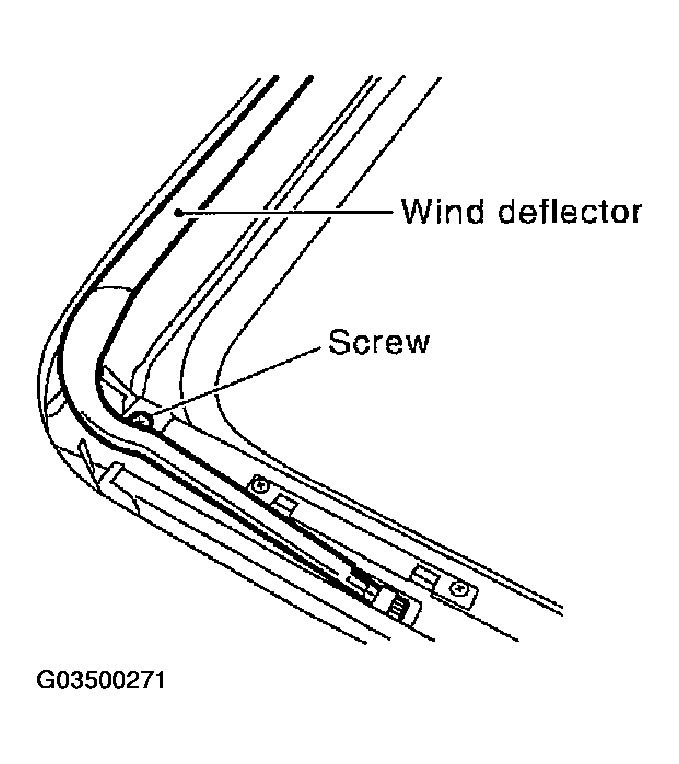

    Fig 1: Removing Screws From Left And Right Sides Of Wind Deflector Holder
    G03500271Courtesy of NISSAN MOTOR CO., U.S.A.
