Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove the sunroof assembly. Refer to "SUNROOF UNIT ".
Remove the shade stoppers (2 points) from the rear end of the sunroof frame assembly.
Remove the shade assembly from the rear end of the sunroof frame assembly.
Install in the reverse order of removal.

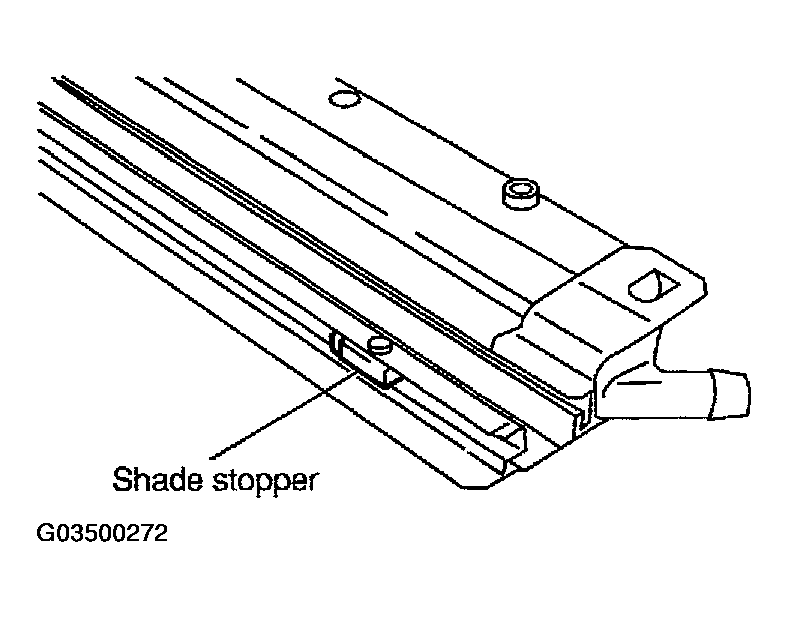

Fig 1: Removing Shade Stoppers
Courtesy of NISSAN MOTOR CO., U.S.A.
