Sunroof Motor: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When removing the sunroof motor, be sure that the sunroof is in the fully closed position.
  • Never run the removed motor as a single unit.
  1. Position the sunroof assembly in the fully closed position.
  2. Remove the front roof console assembly. Refer to "HEADLINING ".
  3. Disconnect the harness connector.
  4. Remove the mounting screws and motor assembly.

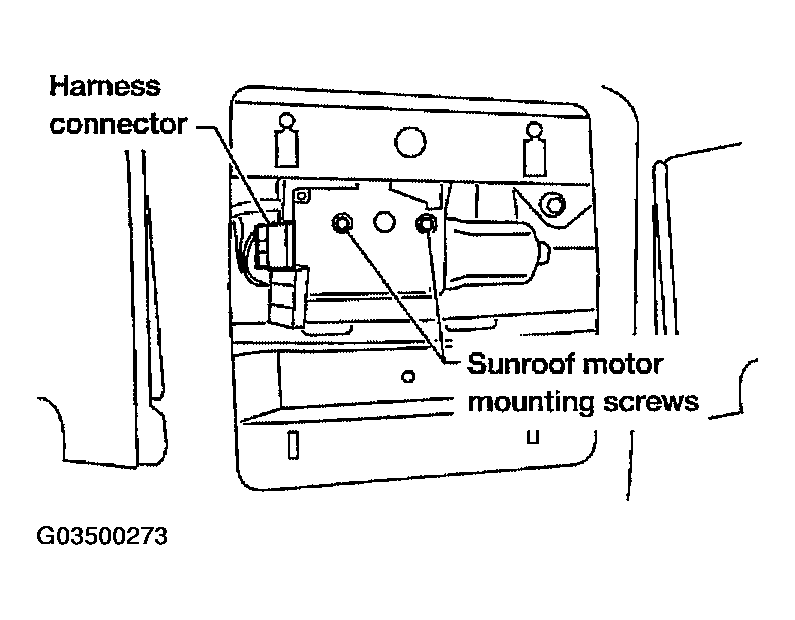

    Fig 1: Removing Sunroof Motor Assembly
    G03500273Courtesy of NISSAN MOTOR CO., U.S.A.
