Sunroof Motor: Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before installing the motor, be sure to place the link and wire assembly in the symmetrical and fully closed position.
  1. Move the motor laterally little by little so that the gear is completely engaged into the wire on the sunroof unit and the mounting surface becomes parallel. Then secure the motor with bolts.
  2. Connect the wire harness.

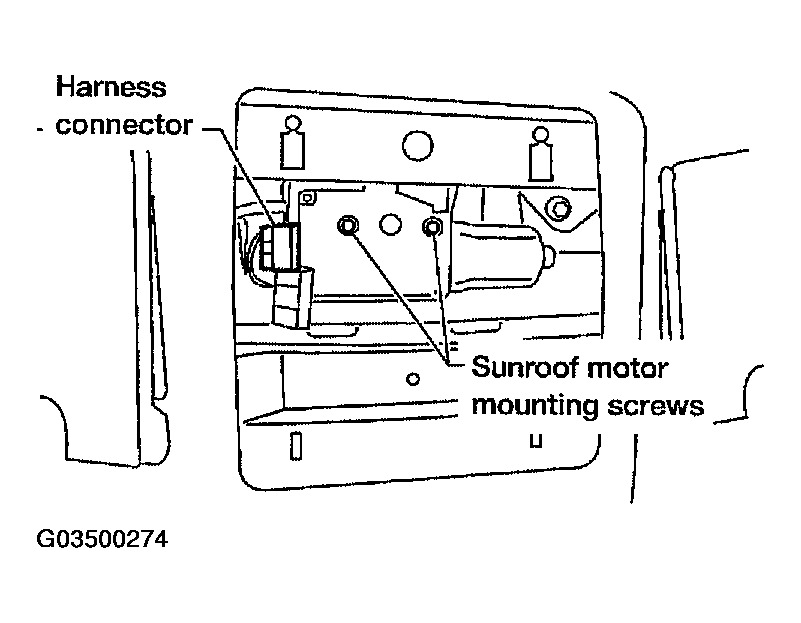

    Fig 1: Installing Sunroof Motor Assembly
    G03500274Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install the roof console assembly, refer to "HEADLINING ".
  4. Check sunroof for proper operation.
