Glass Lid: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open sunroof shade.
  2. Ensure glass lid is closed.
  3. Remove the screws securing glass lid to sunroof assembly
  4. Remove the glass lid assembly.

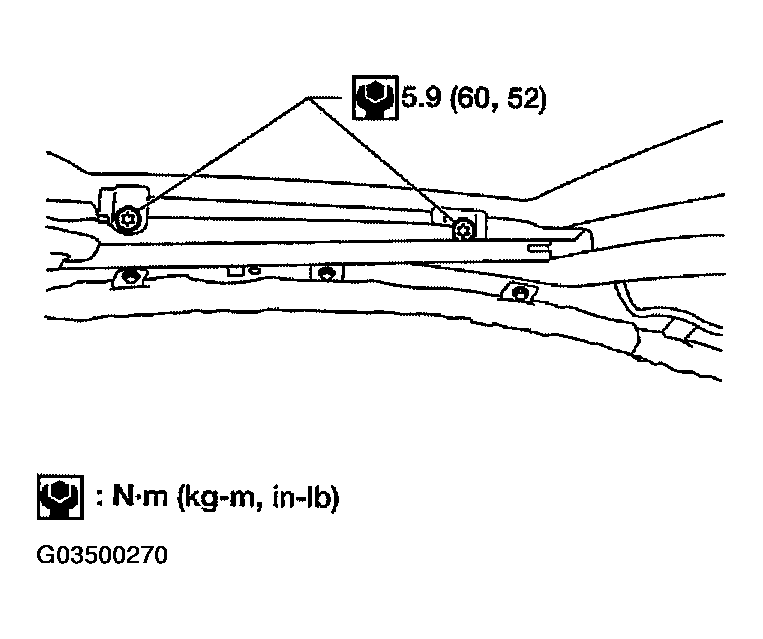

    Fig 1: Removing Screws Securing Glass Lid To Sunroof Assembly with Torque Specs
    G03500270Courtesy of NISSAN MOTOR CO., U.S.A.
