BCM Power Supply and Ground Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSE
- Check 10A fuse [No.1, located in fuse block (J/B)]
- Check 50A fusible link (letter j located in the fuse and fusible link box)
NOTE: Refer to "COMPONENT PARTS AND HARNESS CONNECTOR LOCATION ".

OK or NG
1. OK: GO TO 2.
2. NG: If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to POWER DISTRIBUTION or GROUND DISTRIBUTION .
CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M18, M19 terminal 38, 55 and ground.
  1. 55 (W/B) - Ground: Battery voltage
  2. 38 (R) - Ground: Battery voltage
  OK or NG

  OK: GO TO 3.

  NG: Repair or replace harness.

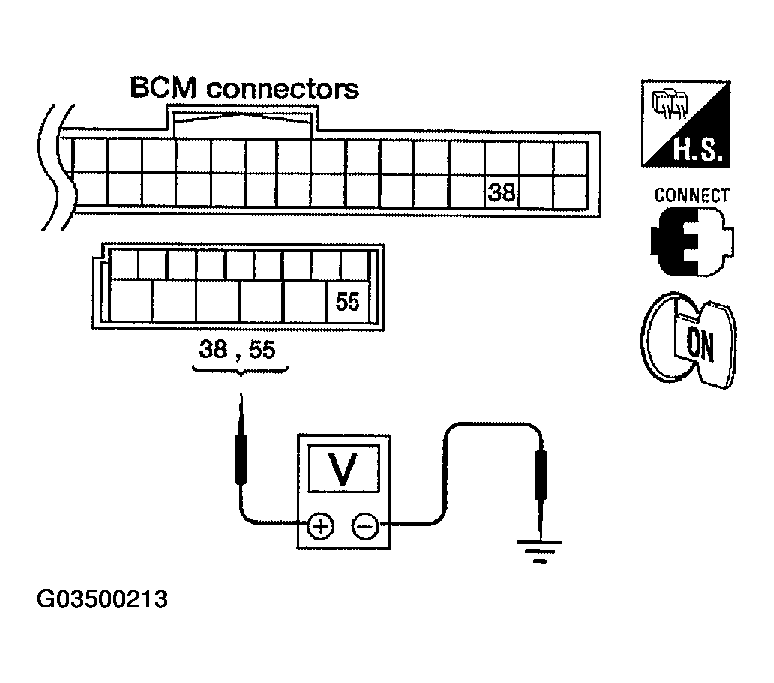

  Fig 1: Checking Voltage Between BCM Connector M18, M19 Terminal 38, 55 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM.
3. Check continuity between BCM connector M19 terminals 49, 52 and ground.
  1. 49 (B) - Ground: Continuity should exist.
  2. 52 (B/W) - Ground: Continuity should exist.

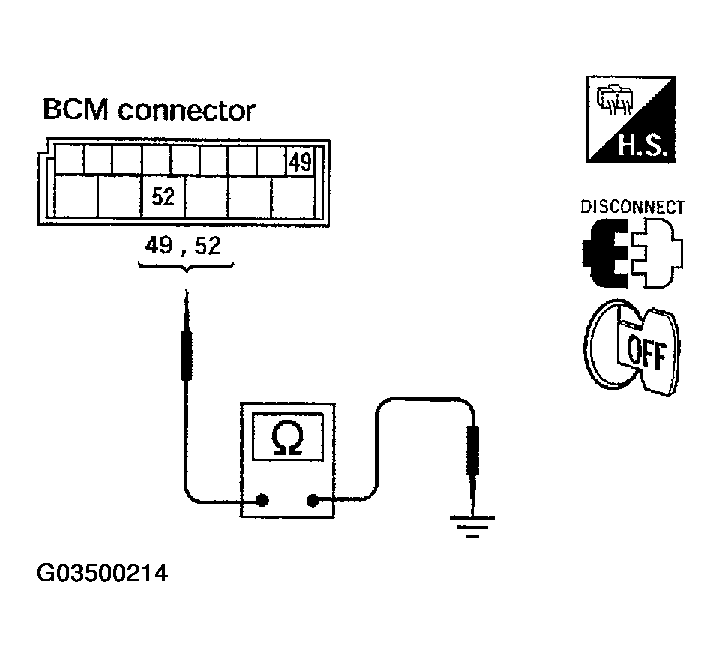

  Fig 2: Checking Continuity Between BCM Connector M19 Terminals 49, 52 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG
  1. OK: BCM power supply and ground circuit is OK.
  2. NG: Repair or replace harness.
