Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Insert NVIS (NATS) program card into CONSULT-II.
Program card : NATS (AEN02C)
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

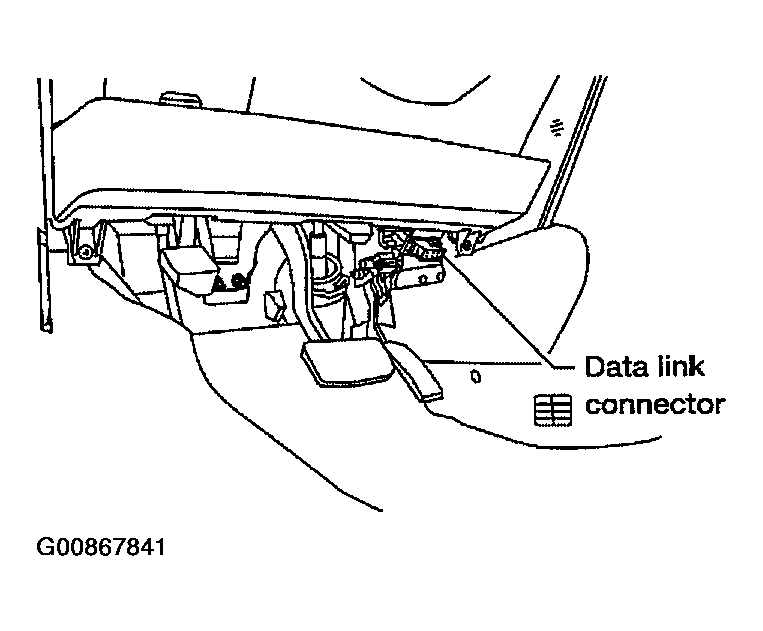

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START".

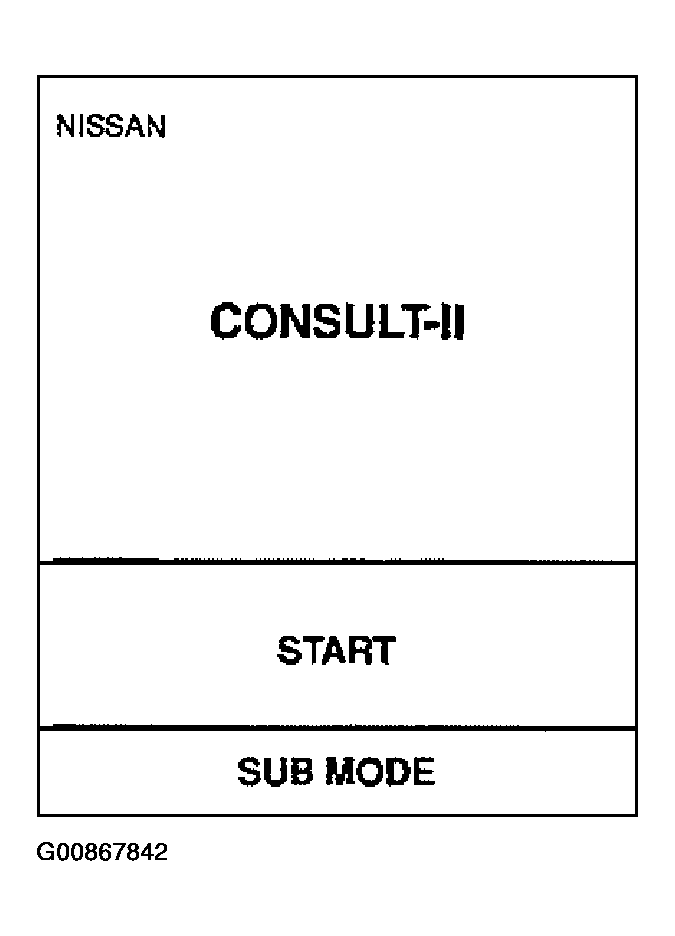

Fig 2: Scan Tool Display - Start Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "OTHER"

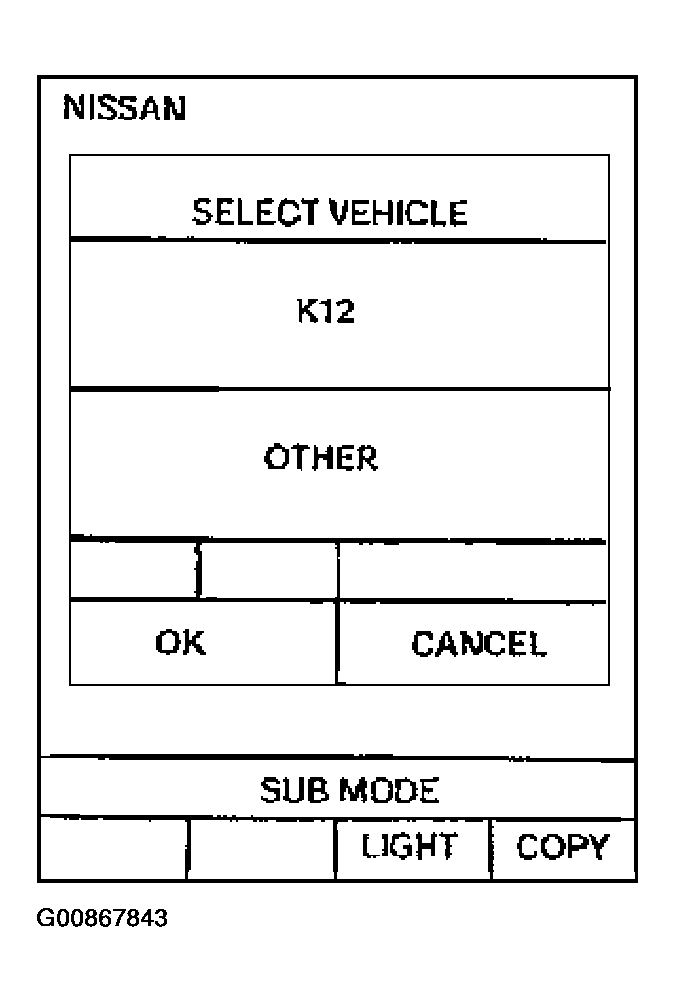

Fig 3: Scan Tool Display - SELECT VEHICLE
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "NATS V.5.0".
If "NATS V5.0" is not indicated, go to "CONSULT-II Data Link Connector (DLC) Circuit ".

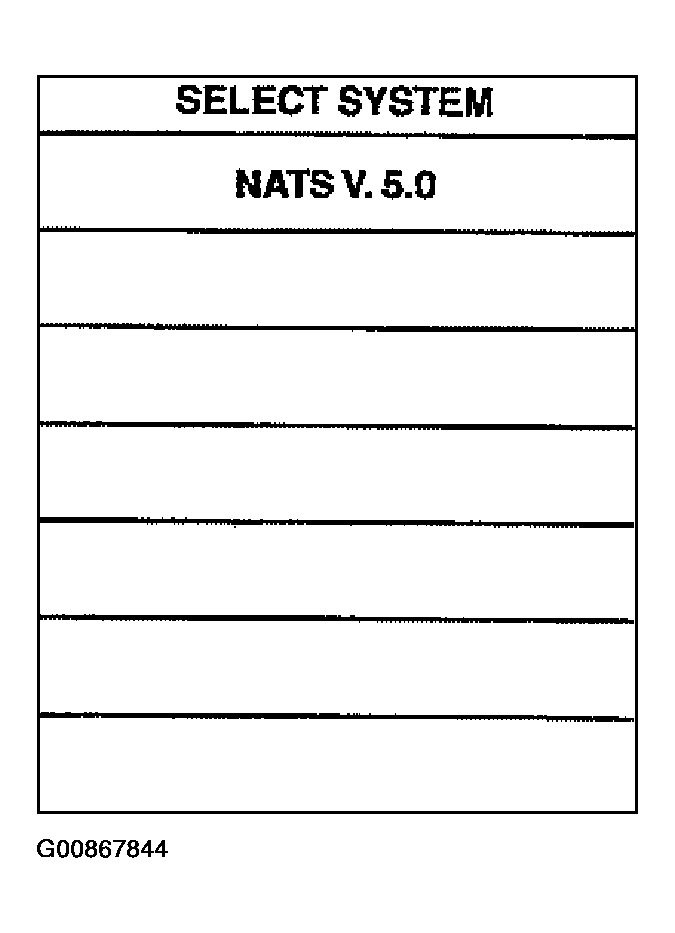

Fig 4: Scan Tool Display - SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.

For further information, see the CONSULT-II Operation Manual NATS-IVIS/NVIS.

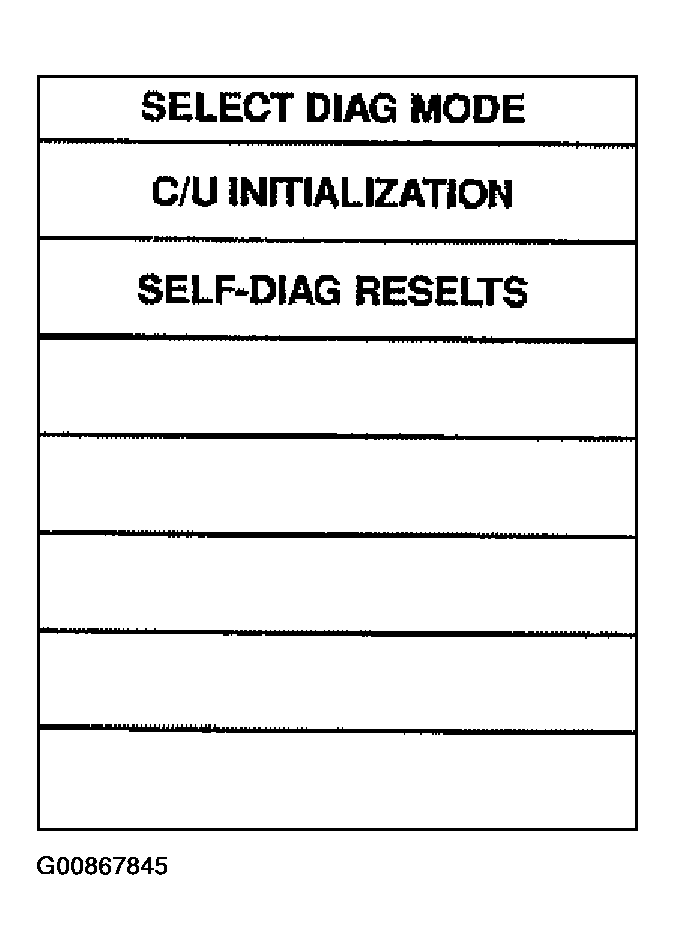

Fig 5: Scan Tool Display - SELECT DIAG MODE

Courtesy of NISSAN MOTOR CO., U.S.A.
