Wiring Diagram -BL-B/CLOS-

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

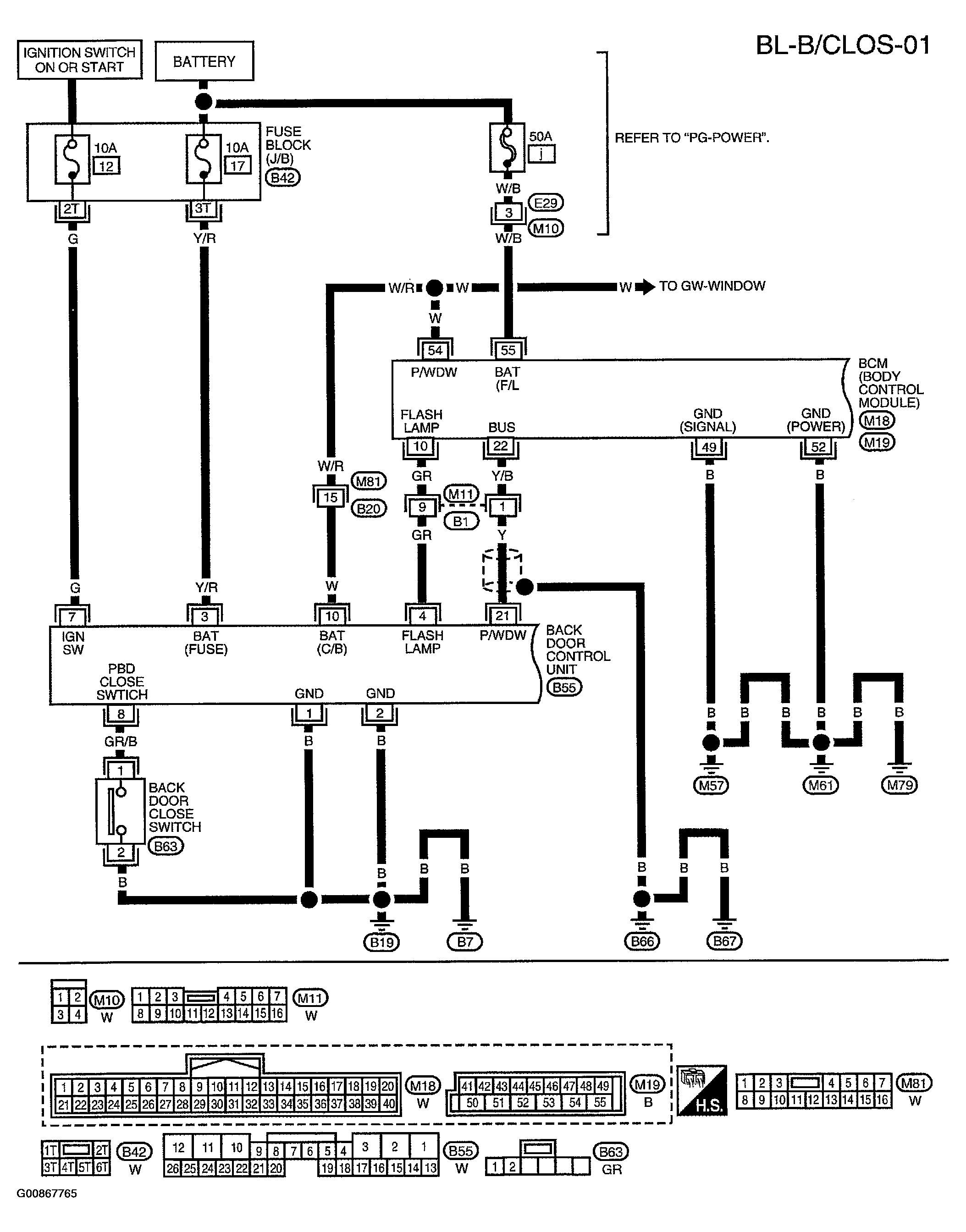

Fig 1: Wiring Diagram - BL-B/CLOS-01

G00867765

Courtesy of NISSAN MOTOR CO., U.S.A.

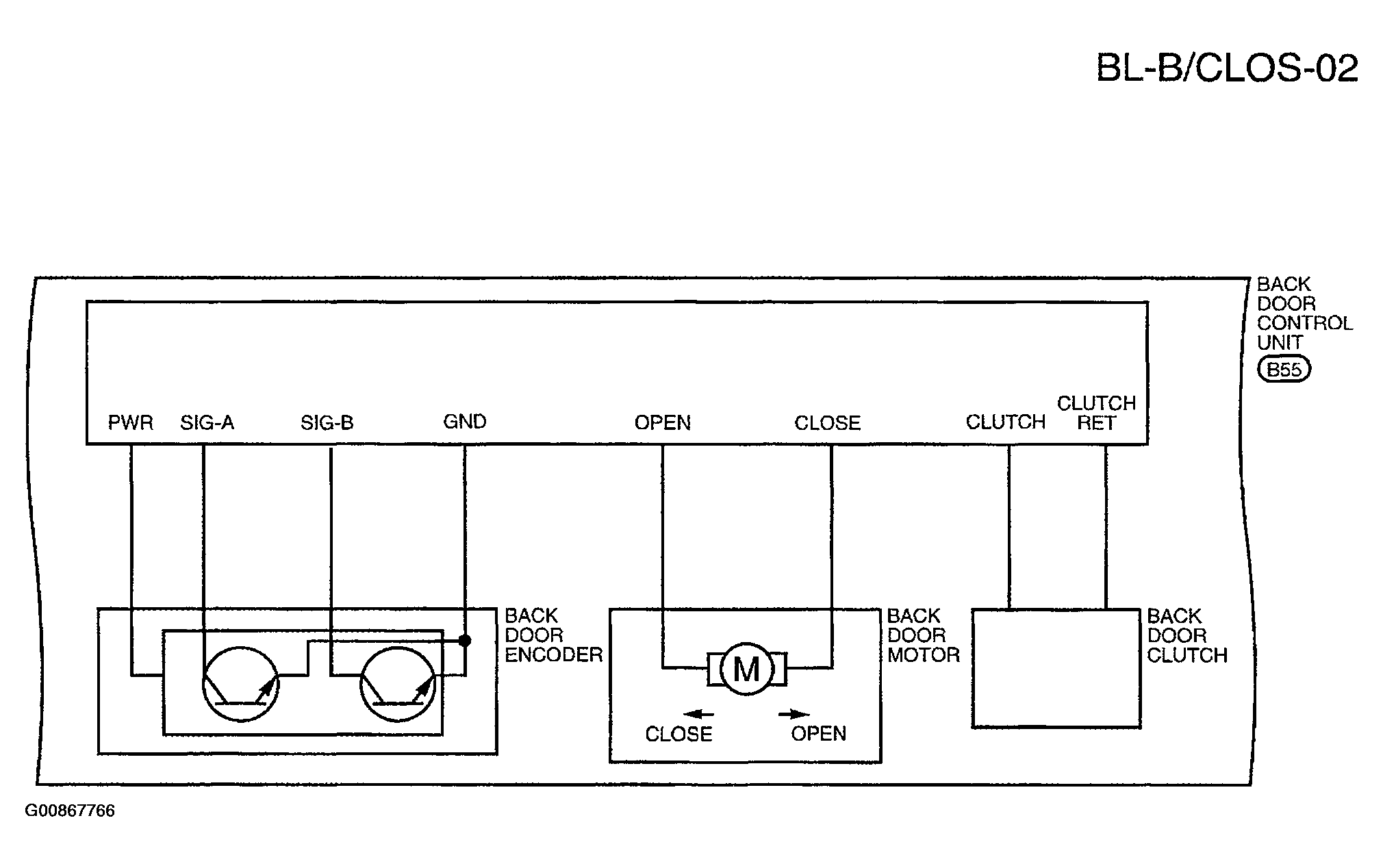

Fig 2: Wiring Diagram - BL-B/CLOS-02

G00867766

Courtesy of NISSAN MOTOR CO., U.S.A.

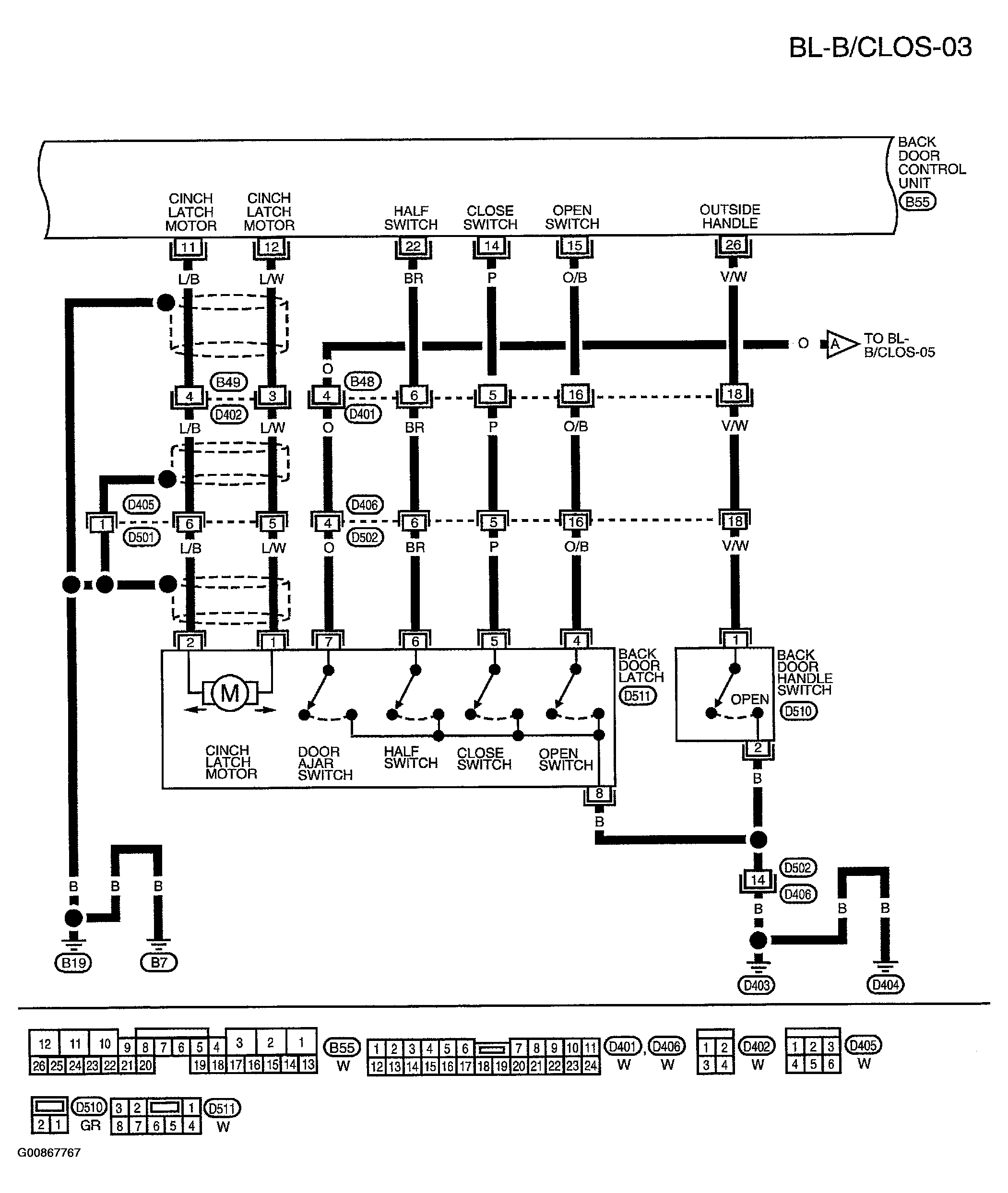

Fig 3: Wiring Diagram - BL-B/CLOS-03

G00867767

Courtesy of NISSAN MOTOR CO., U.S.A.

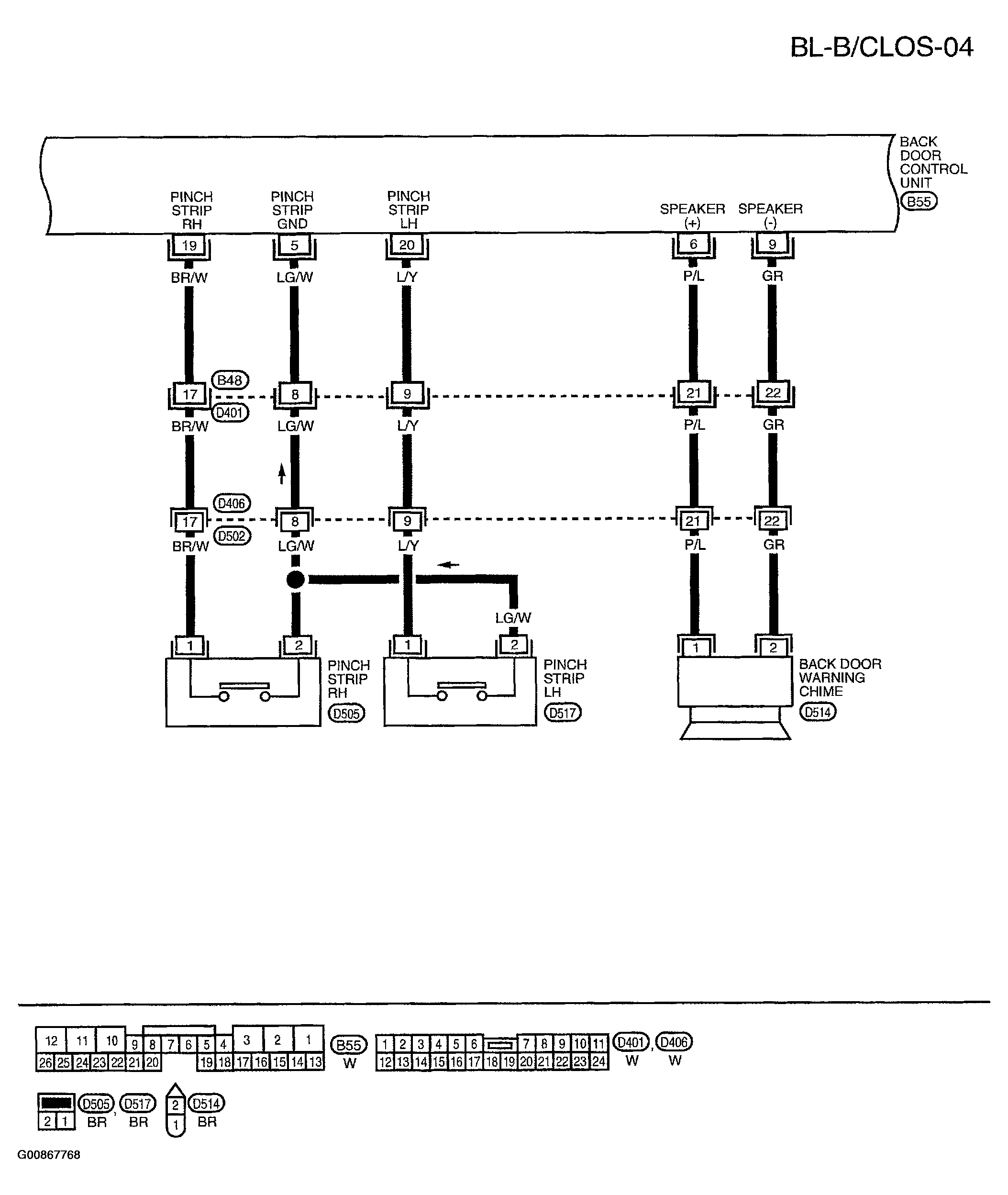

Fig 4: Wiring Diagram - BL-B/CLOS-04

G00867768

Courtesy of NISSAN MOTOR CO., U.S.A.

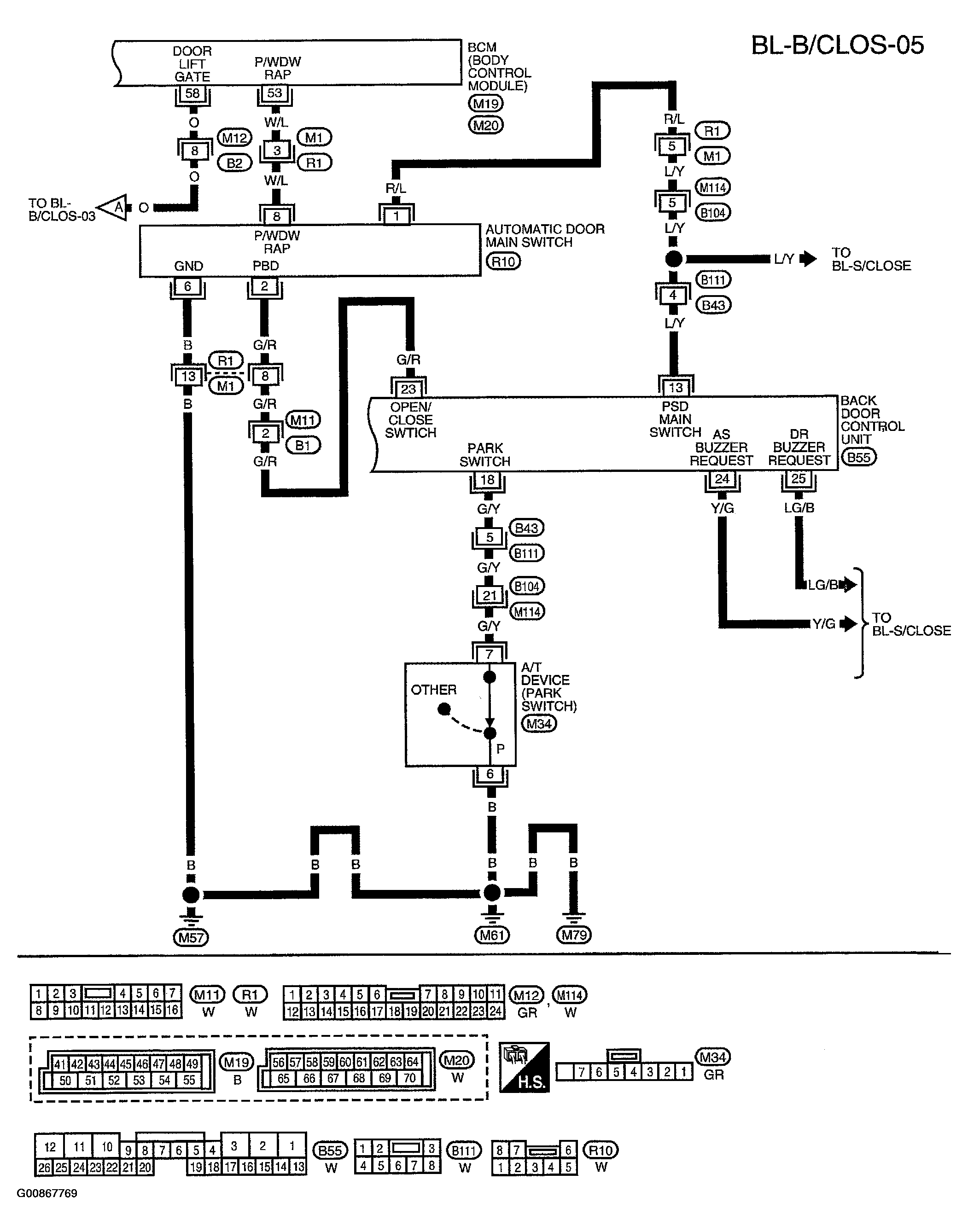

Fig 5: Wiring Diagram - BL-B/CLOS-05

G00867769

Courtesy of NISSAN MOTOR CO., U.S.A.
