With Right Hand Slide Door Auto Closure System: Notes

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

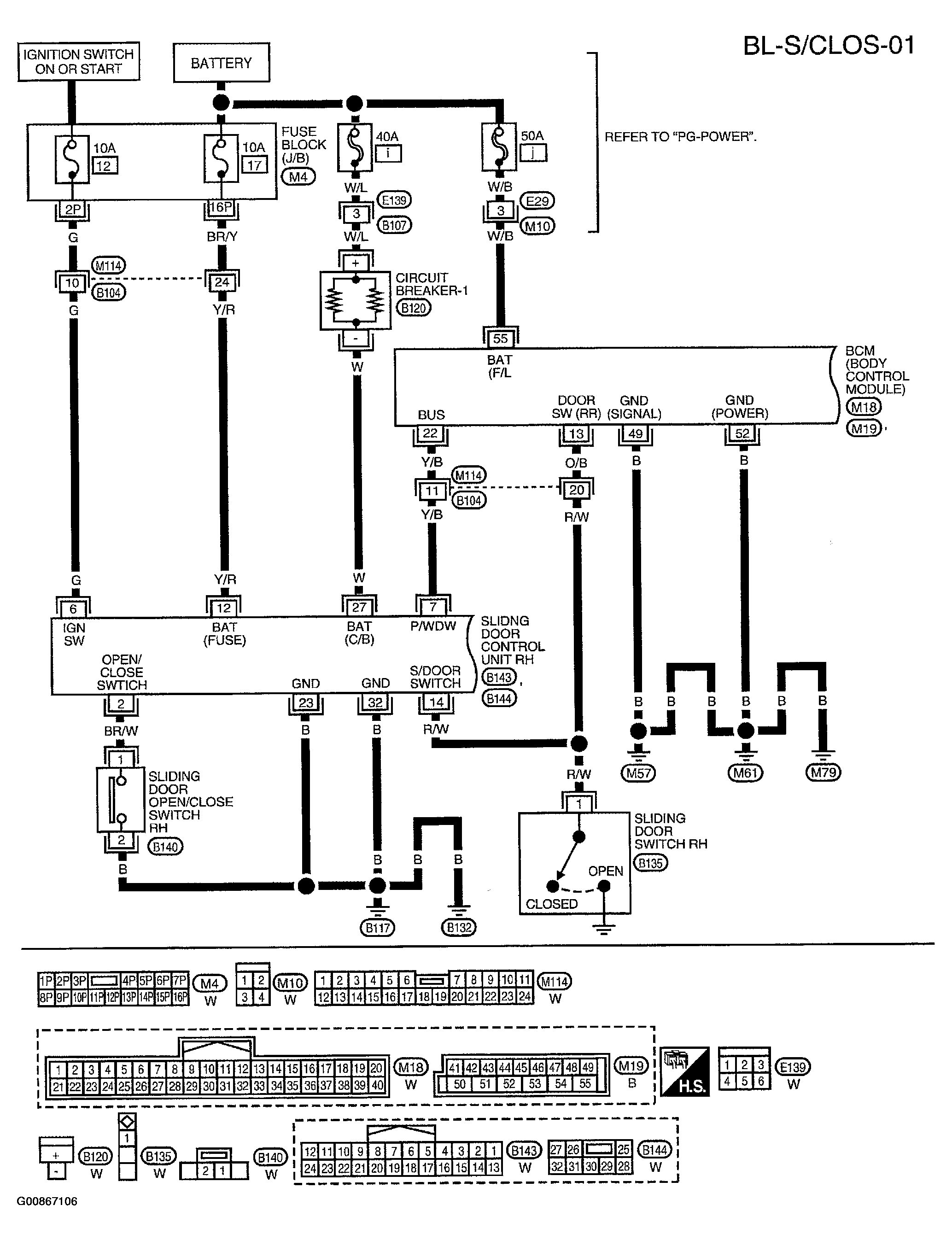

Fig 1: Wiring Diagram BL-S/CLOS-01

Courtesy of NISSAN MOTOR CO., U.S.A.

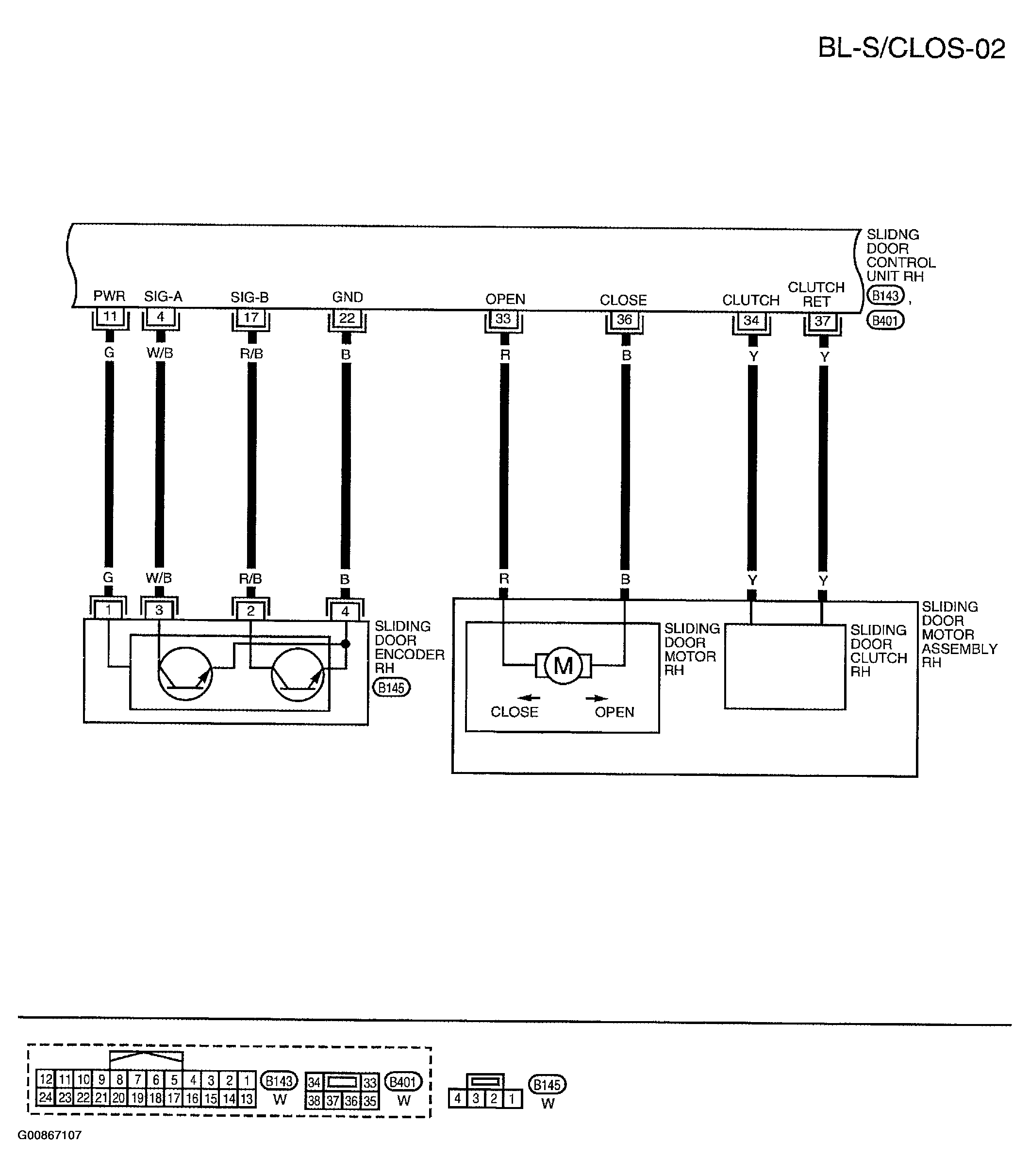

Fig 2: Wiring Diagram BL-S/CLOS-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

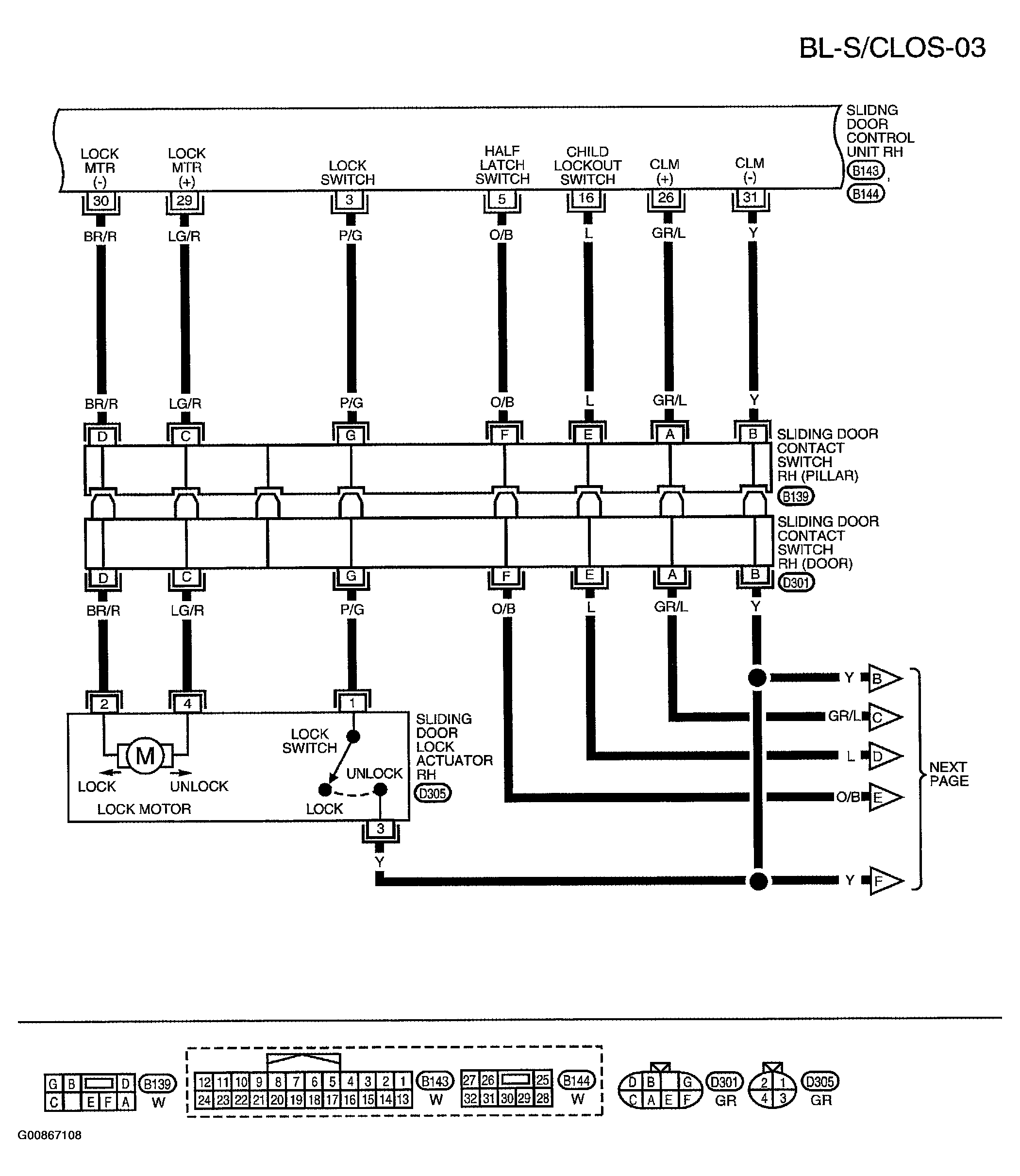

Fig 3: Wiring Diagram BL-S/CLOS-03)

Courtesy of NISSAN MOTOR CO., U.S.A.

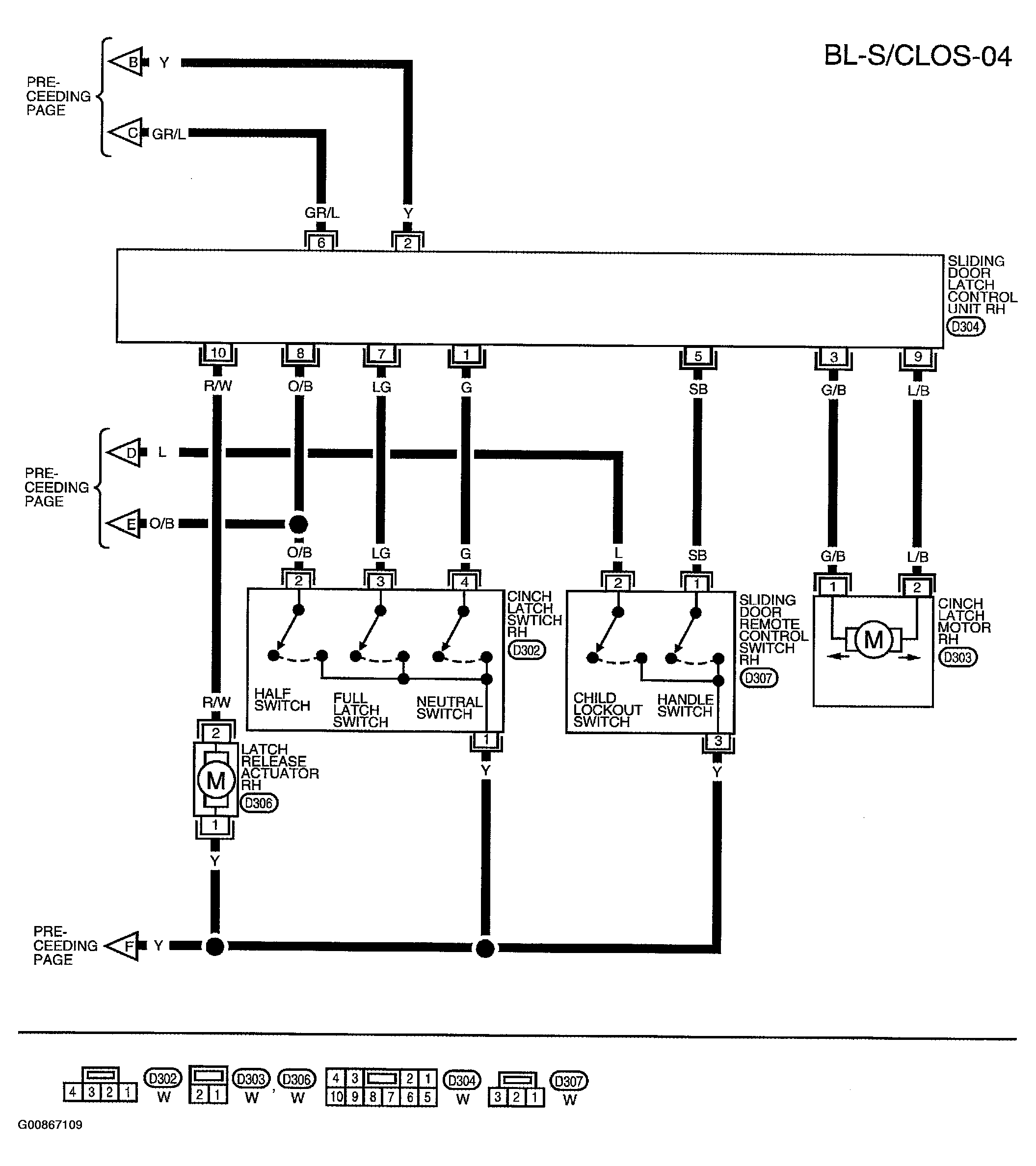

Fig 4: Wiring Diagram BL-S/CLOS-04)

Courtesy of NISSAN MOTOR CO., U.S.A.

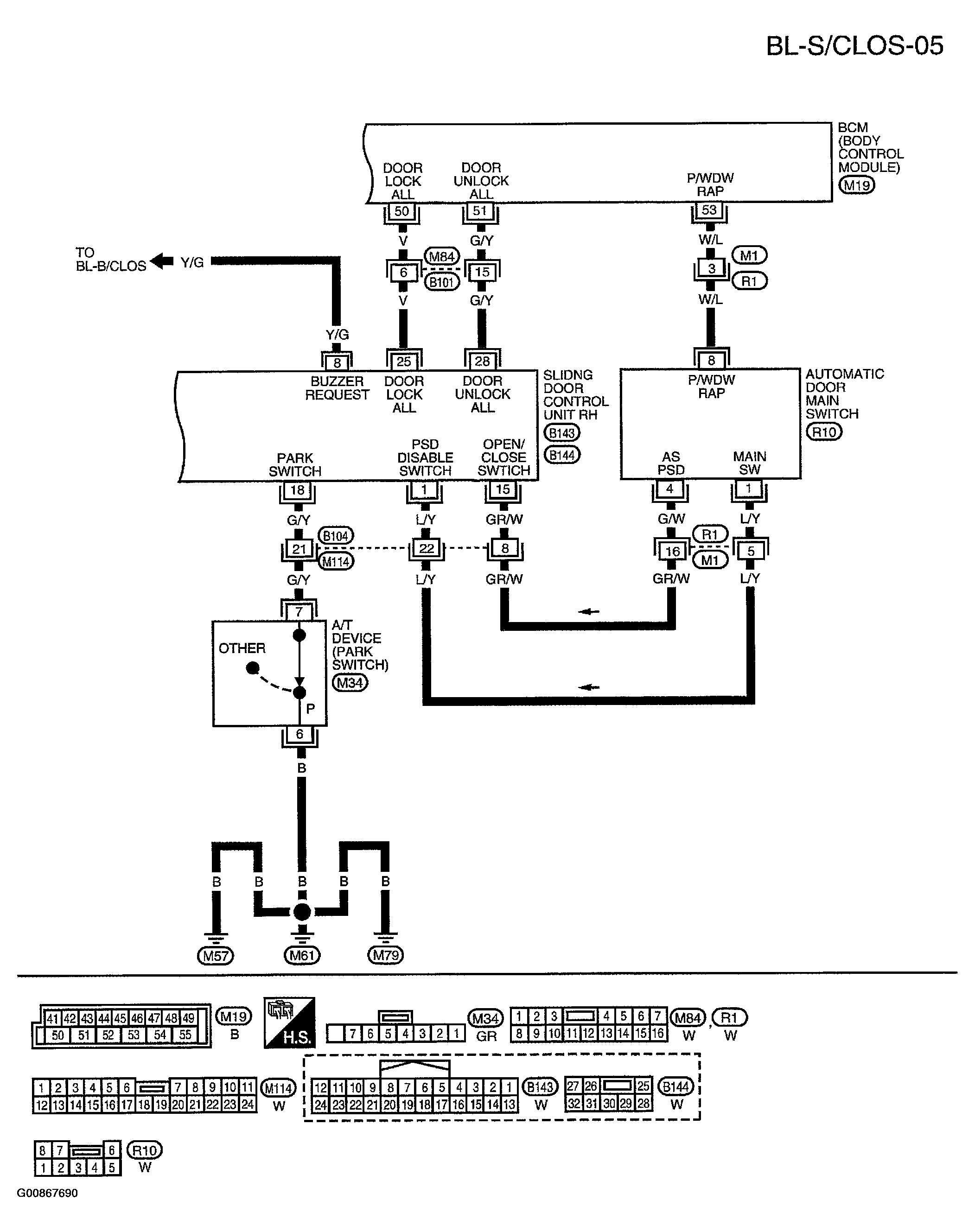

Fig 5: Wiring Diagram BL-S/CLOS-05)

Courtesy of NISSAN MOTOR CO., U.S.A.
