SLIDING DOOR REMOTE CONTROL SWITCH FUNCTION INSPECTION
Check sliding door remote control switch operation.

OK or NG
1. OK: Sliding door remote control switch is OK.
2. NG: GO TO 2.
SLIDING DOOR REMOTE CONTROL SWITCH SIGNAL INSPECTION
1. Turn ignition switch OFF.
2. While operating the sliding door remote control switch, check voltage between sliding door latch control unit connector terminals 5 and ground.

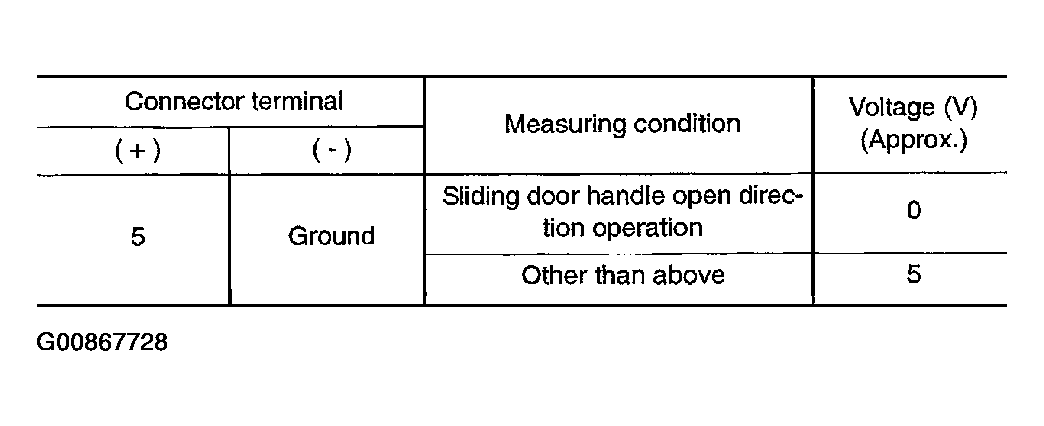

Fig 1: Connector Terminal Voltage Condition Table
Courtesy of NISSAN MOTOR CO., U.S.A.

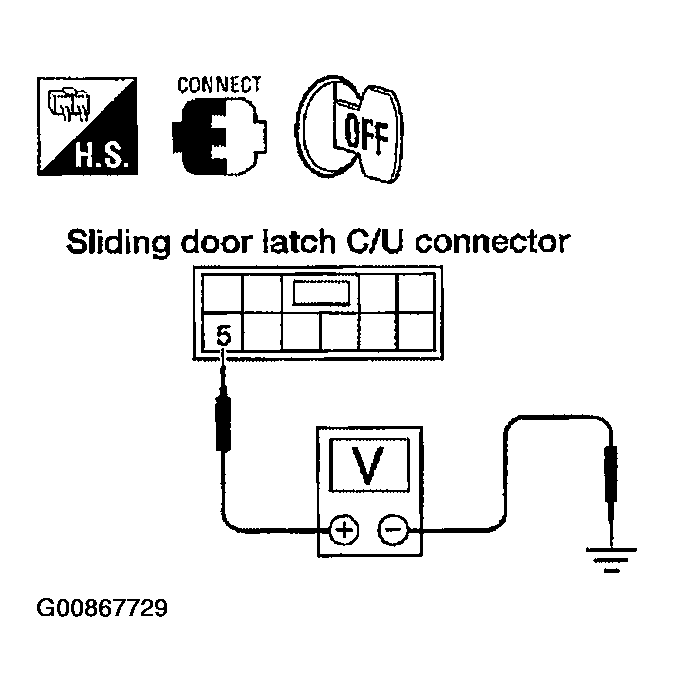

Fig 2: Checking Voltage Between Sliding Door Latch Control Unit Connector Terminals 5 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Switch is OK.
2. NG: GO TO 3.
SLIDING DOOR REMOTE CONTROL SWITCH CIRCUIT INSPECTION
1. Disconnect sliding door remote control switch and sliding door latch control unit connector.
2. Check continuity between sliding door remote control switch connector terminal 1 and sliding door latch control unit connector terminal 5.
  1 - 5: Continuity should exist.
OK or NG
1. OK: GO TO 4.
2. NG: Repair the harness between the sliding door remote control switch and the sliding door latch control unit.

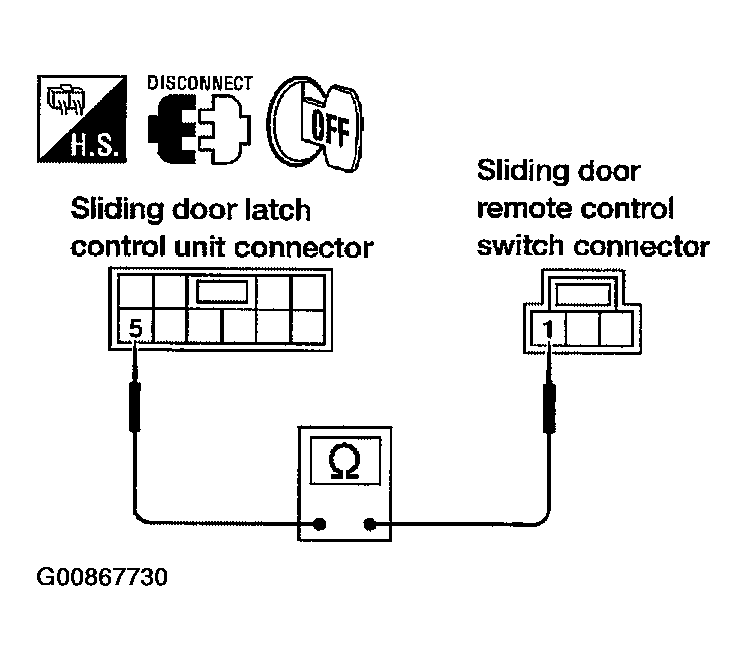

Fig 3: Checking Continuity Between Sliding Door Remote Control Switch And Sliding Door Latch Control Unit Connector Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
SLIDING DOOR REMOTE CONTROL SWITCH GROUND INSPECTION
Check continuity between sliding door remote control switch connector terminal 3 and ground.

3 - Ground: Continuity should exist.

OK or NG
1. OK: Replace the sliding door remote control switch.
2. NG: Repair the harness between the sliding door remote control switch and ground.

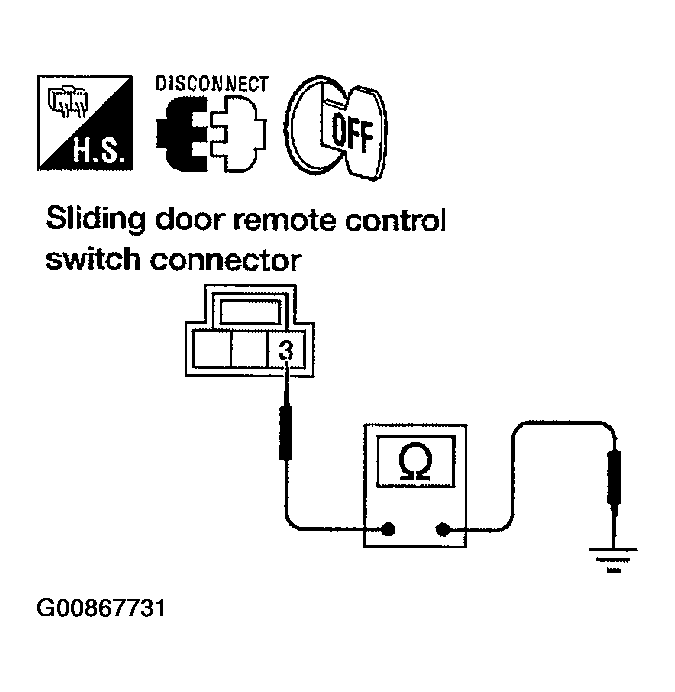

Fig 4: Checking Continuity Between Sliding Door Remote Control Switch Connector Terminal 3 And Ground
