Sliding Door Open/Close Switch System Inspection

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

SLIDING DOOR OPEN/CLOSE SWITCH FUNCTION INSPECTION
Check sliding door open/close switch using switch operation.

OK or NG
1. OK: Sliding door open/close switch is OK.
2. NG: GO TO 2.
SLIDING DOOR OPEN/CLOSE SWITCH SIGNAL INSPECTION
1. Turn ignition switch OFF.
2. While operating the sliding door open/close switch, check voltage between sliding door control unit (LH or RH) connector terminals 2 and ground.

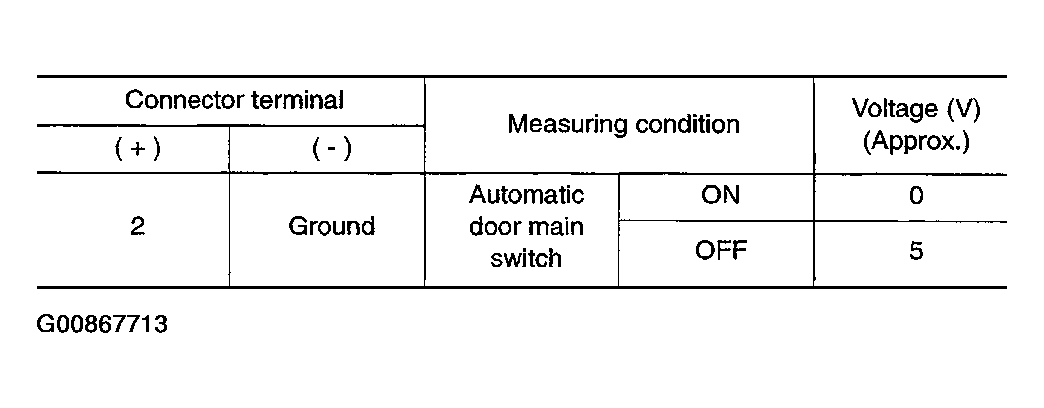

Fig 1: Connector Terminal Voltage Condition Table
Courtesy of NISSAN MOTOR CO., U.S.A.

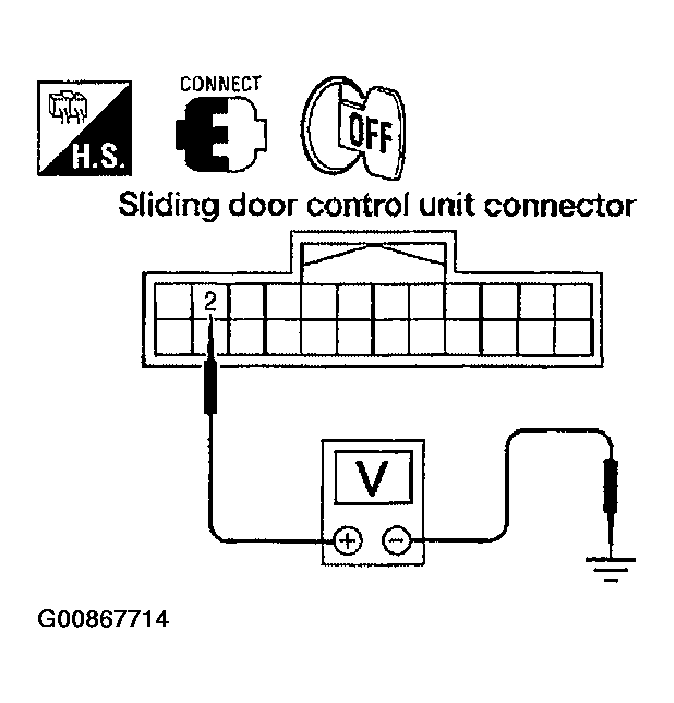

Fig 2: Checking Voltage Between Sliding Door Control Unit Connector Terminals 2 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Switch is OK.
2. NG: GO TO 3.
SLIDING DOOR OPEN/CLOSE SWITCH CIRCUIT INSPECTION
1. Disconnect sliding door open/close switch and sliding door control unit connector.
2. Check continuity between sliding door open/close switch connector terminal 1 and sliding door control unit connectors terminal 2.
  1 - 2: Continuity should exist.
OK or NG
1. OK: GO TO 4.
2. NG: Repair the harness between the sliding door main switch and the sliding door control unit.

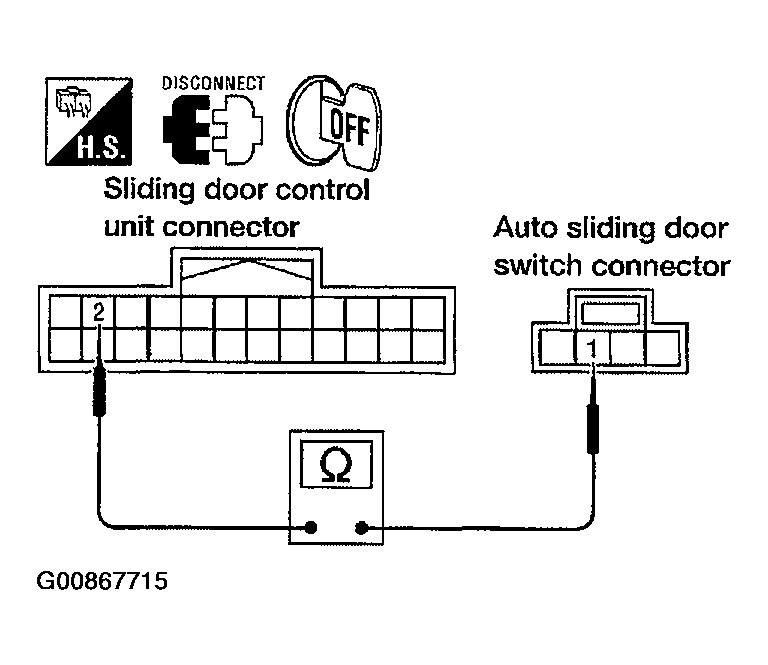

Fig 3: Checking Continuity Between Sliding Door Open/Close Switch And Sliding Door Control Unit Connectors Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
SLIDING DOOR OPEN/CLOSE SWITCH GROUND INSPECTION
Check continuity between sliding door open/close switch connector terminal 2 and ground.

2 - Ground: Continuity should exist.

OK or NG
1. OK: Replace the sliding door open/close switch.
2. NG: Repair the harness between the sliding door main switch and ground.

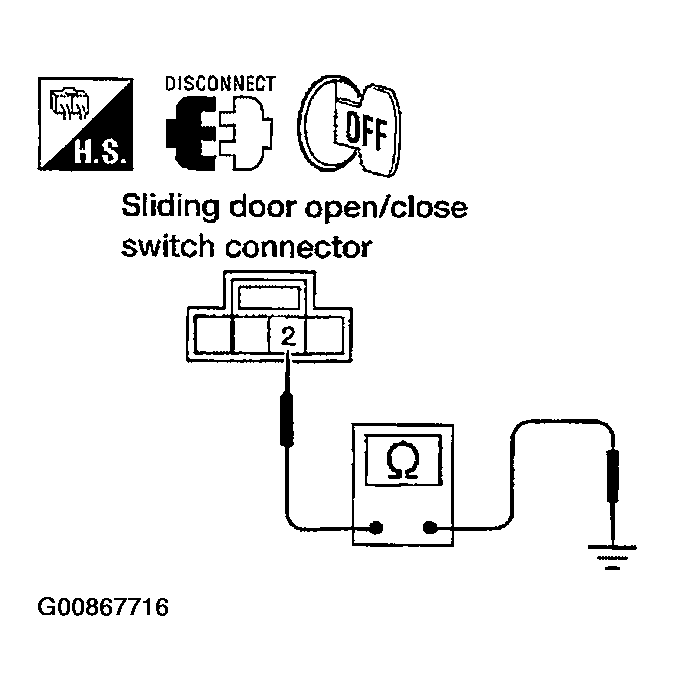

Fig 4: Checking Continuity Between Sliding Door Open/Close Switch Connector Terminal 2 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
