Sliding Door Motor System Inspection

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

SLIDING DOOR MOTOR SIGNAL INSPECTION
1. Turn ignition switch OFF.
2. Operate the sliding door fully open --> fully closed and check voltage between sliding door control unit connector terminals 33, 36 and ground.

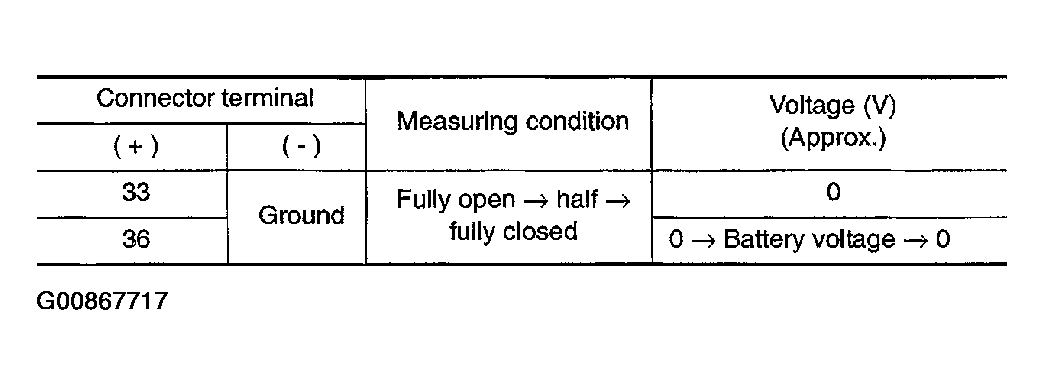

Fig 1: Connector Terminal Voltage Condition Table
Courtesy of NISSAN MOTOR CO., U.S.A.

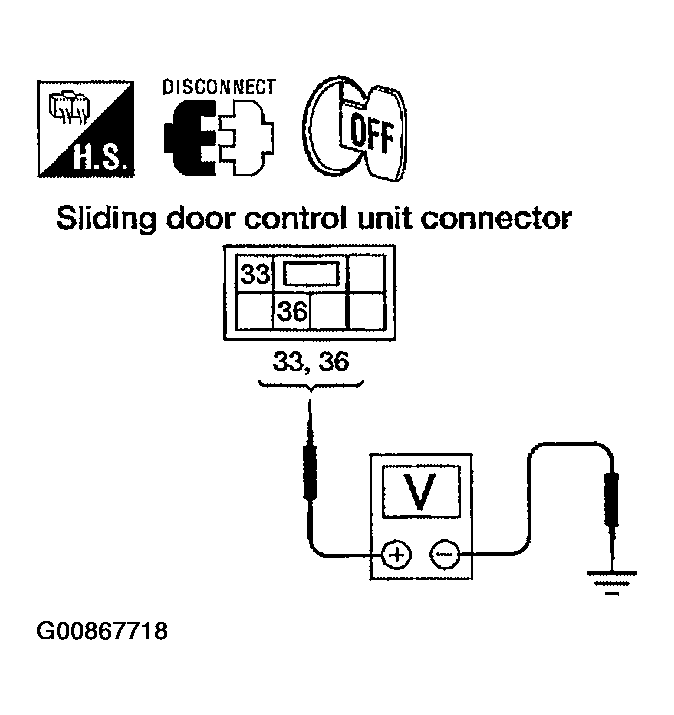

Fig 2: Checking Voltage Between Sliding Door Control Unit Connector Terminals 33, 36 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Go To 2.
2. NG: Replace sliding door control unit.
SLIDING DOOR MOTOR OPERATION INSPECTION
Connect battery power to terminals 33 and 36 on the sliding door control unit connector and check motor operation.

33 (+) -36 (-): It operates.

33 (-) -35 (+): It operates. (Reverse rotation)

OK or NG
1. OK: Motor is OK.
2. NG: Replace the sliding door motor.

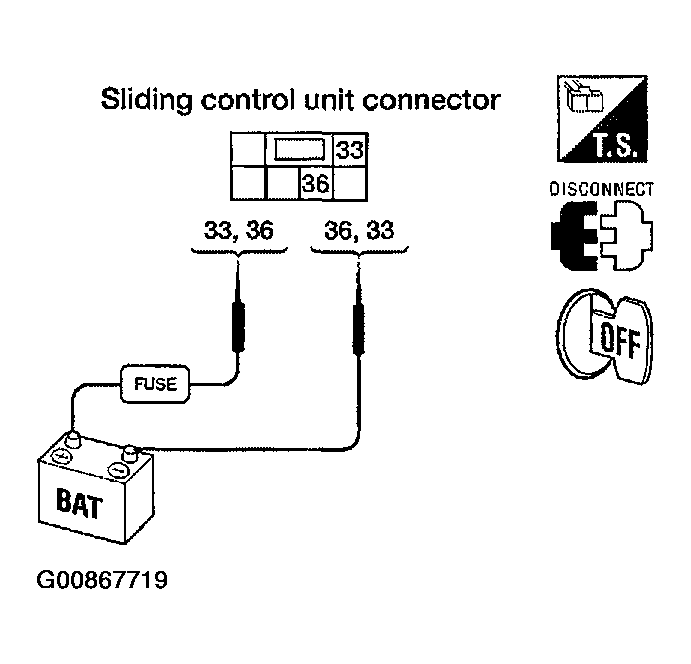

Fig 3: Connecting Battery Power To Terminals 33 And 36
Courtesy of NISSAN MOTOR CO., U.S.A.
