Child Lockout Switch System Inspection

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHILD LOCKOUT SWITCH SIGNAL INSPECTION
1. Turn ignition switch OFF.
2. Set child lockout switch in LOCK position and close door.
3. While operating the sliding door in the open direction, check voltage between sliding door control unit connector terminals 16 and ground.

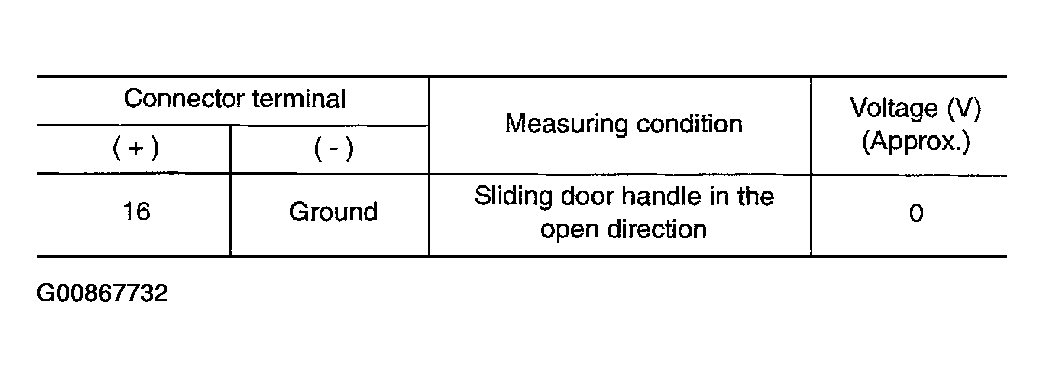

Fig 1: Connector Terminal Voltage Condition Table
Courtesy of NISSAN MOTOR CO., U.S.A.

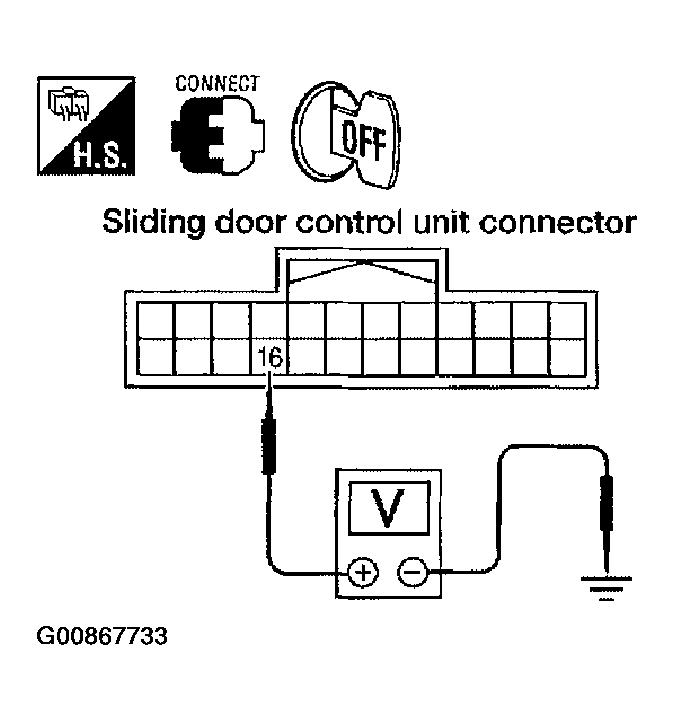

Fig 2: Checking Voltage Between Sliding Door Control Unit Connector Terminals 16 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Switch is OK.
2. NG: GO TO 2.
CHILD LOCKOUT SWITCH CIRCUIT INSPECTION
1. Disconnect sliding door remote control switch and sliding door control unit connector.
2. Check continuity between sliding door remote control switch connector terminal 2 and sliding door control unit connector terminal 16.
  2 - 16: Continuity should exist.
OK or NG
1. OK: GO TO 3.
2. NG: Repair the harness between the sliding door remote control switch and the sliding door control unit.

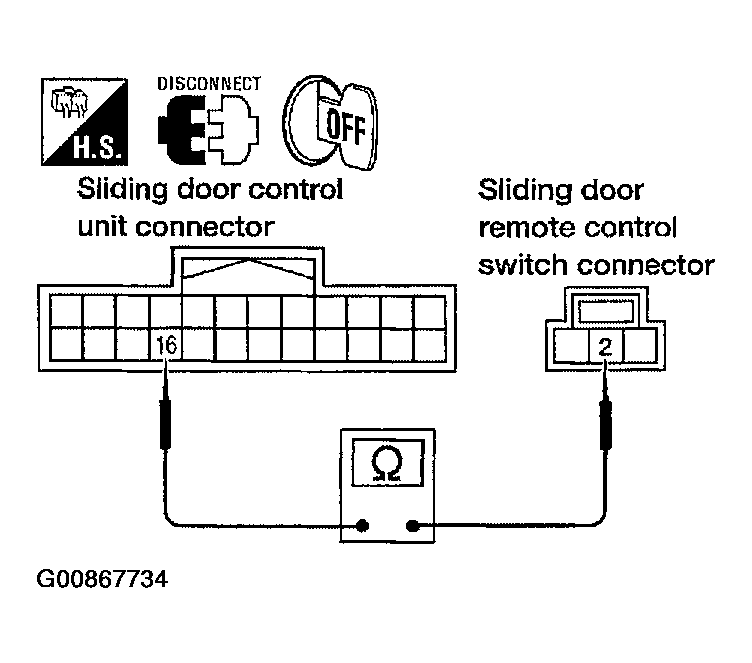

Fig 3: Checking Continuity Between Sliding Door Remote Control Switch And Sliding Door Control Unit Connector Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
CHILD LOCKOUT SWITCH GROUND INSPECTION
Check continuity between sliding door remote control switch connector terminal 3 and ground.

3 - Ground: Continuity should exist.

OK or NG
1. OK: Replace the sliding door remote control switch.
2. NG: Repair the harness between the sliding door remote control switch and ground.

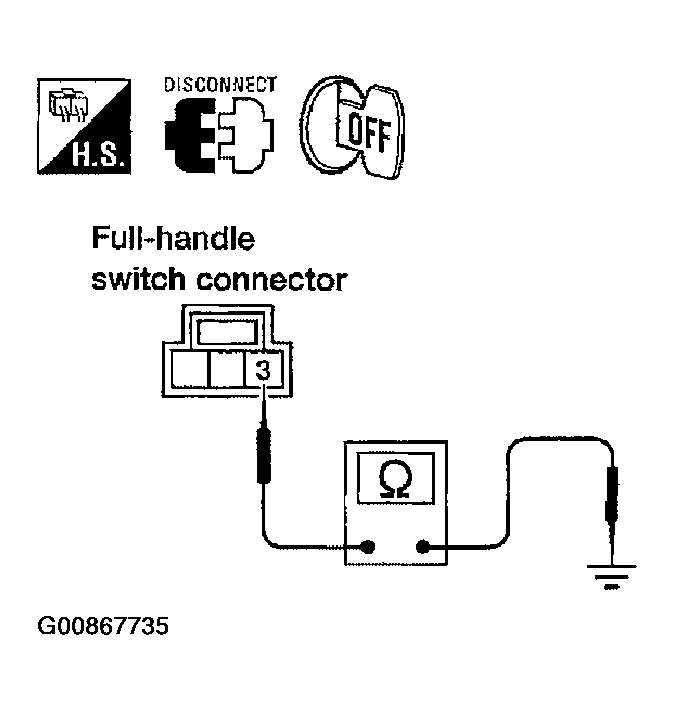

Fig 4: Checking Continuity Between Sliding Door Remote Control Switch Connector Terminal 3 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
