With Right And Left Hand Auto Slide Door Closure And Automatic Back Door System

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

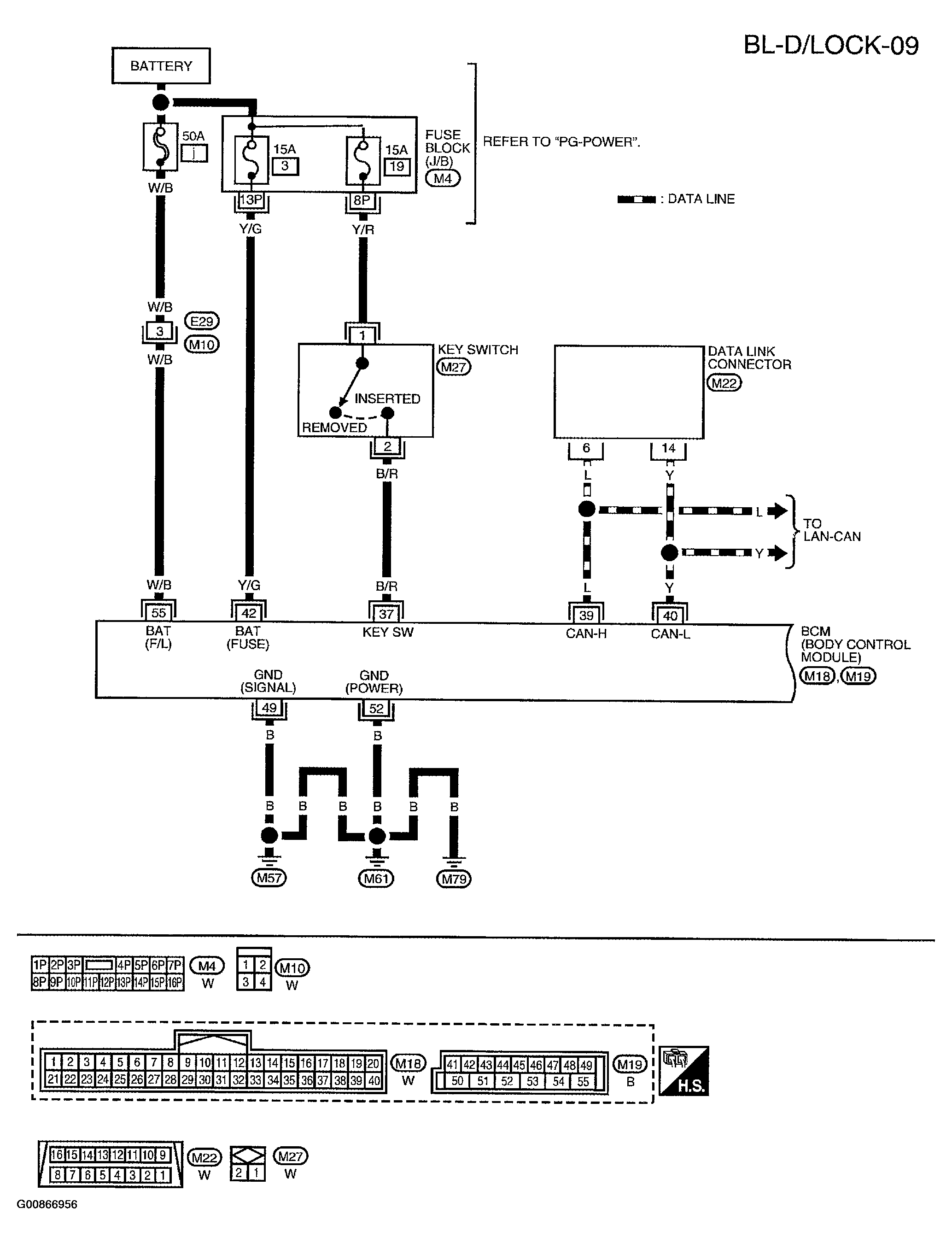

Fig 1: Wiring Diagram - BL-D/LOCK-09

Courtesy of NISSAN MOTOR CO., U.S.A.

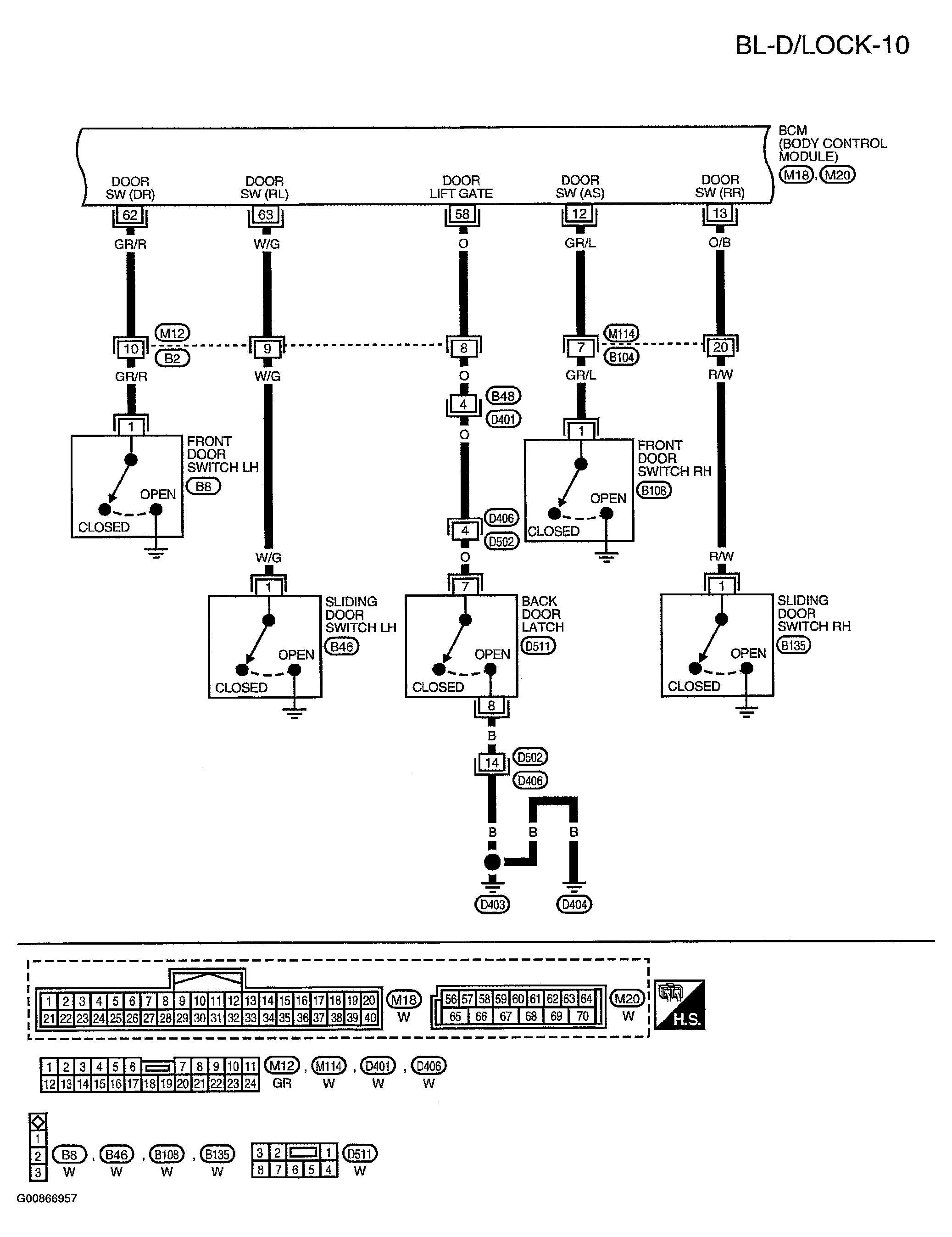

Fig 2: Wiring Diagram - BL-D/LOCK-10

Courtesy of NISSAN MOTOR CO., U.S.A.

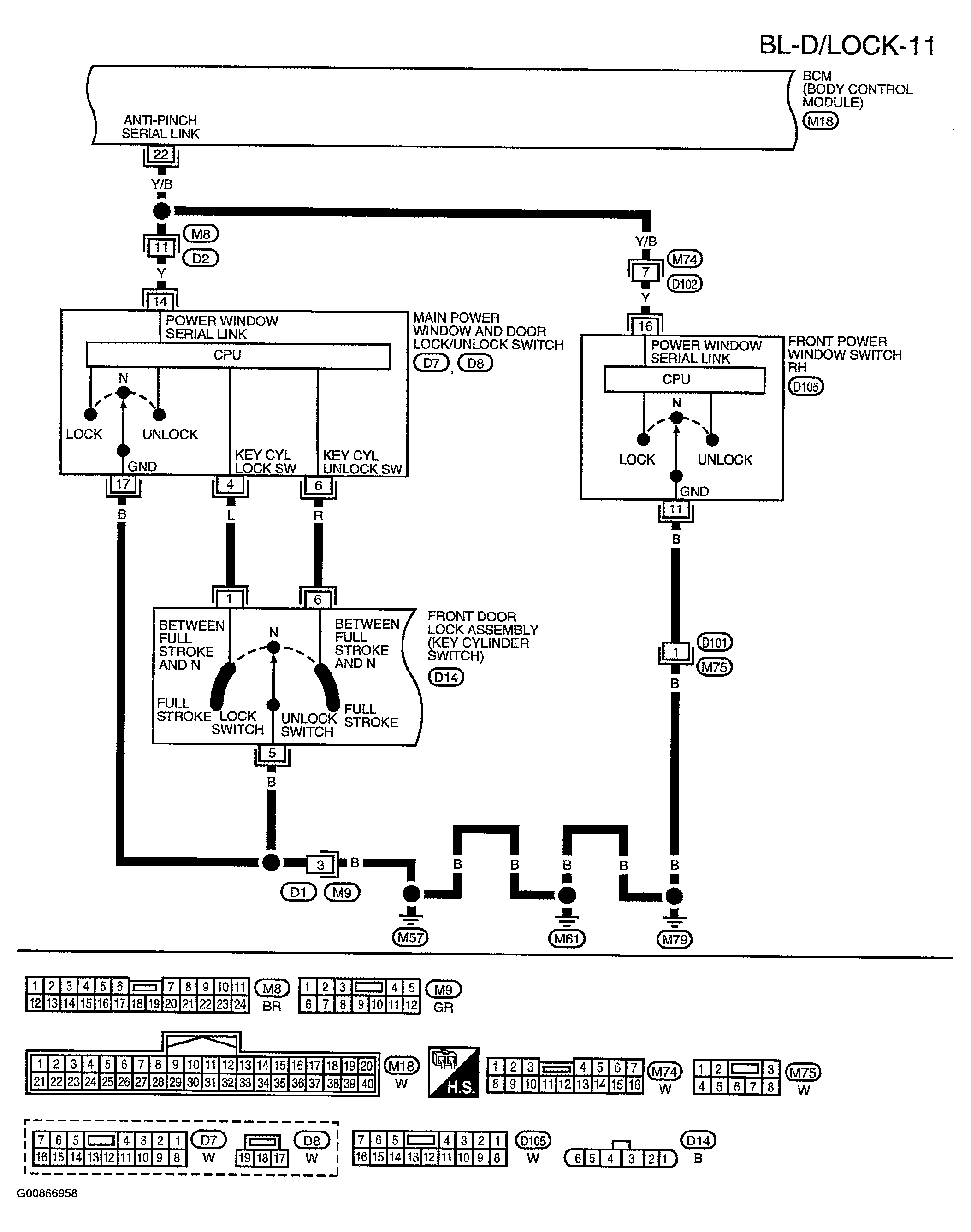

Fig 3: Wiring Diagram - BL-D/LOCK-11

Courtesy of NISSAN MOTOR CO., U.S.A.

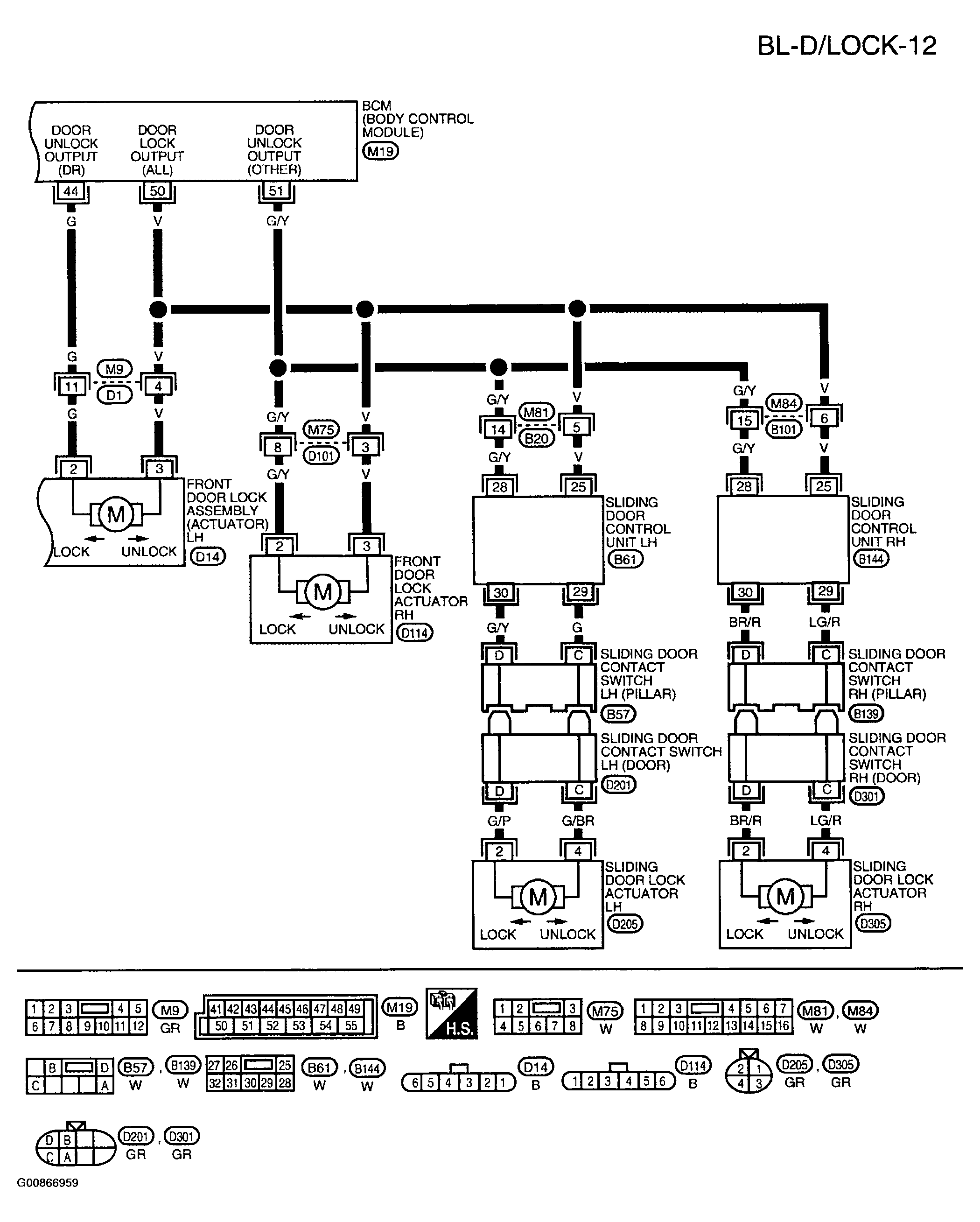

Fig 4: Wiring Diagram - BL-D/LOCK-12

Courtesy of NISSAN MOTOR CO., U.S.A.
