With Right And Left Hand Automatic Sliding Door System And Automatic Back Door System

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

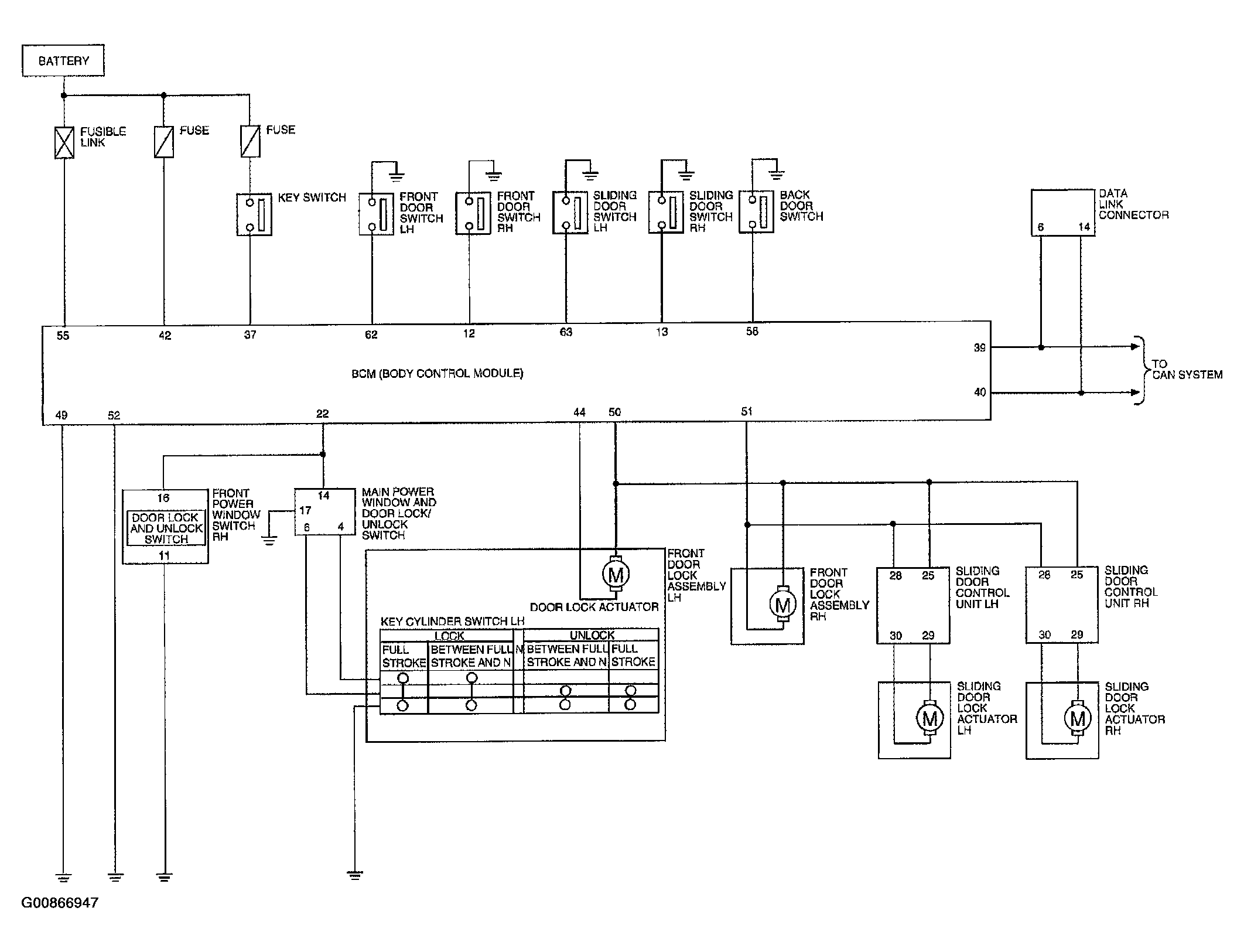

Fig 1: With Right & Left Hand Automatic Sliding Door System & Automatic Back Door System - Schematic Diagram
G00866947Courtesy of NISSAN MOTOR CO., U.S.A.
