Component Parts and Harness Connector Location

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

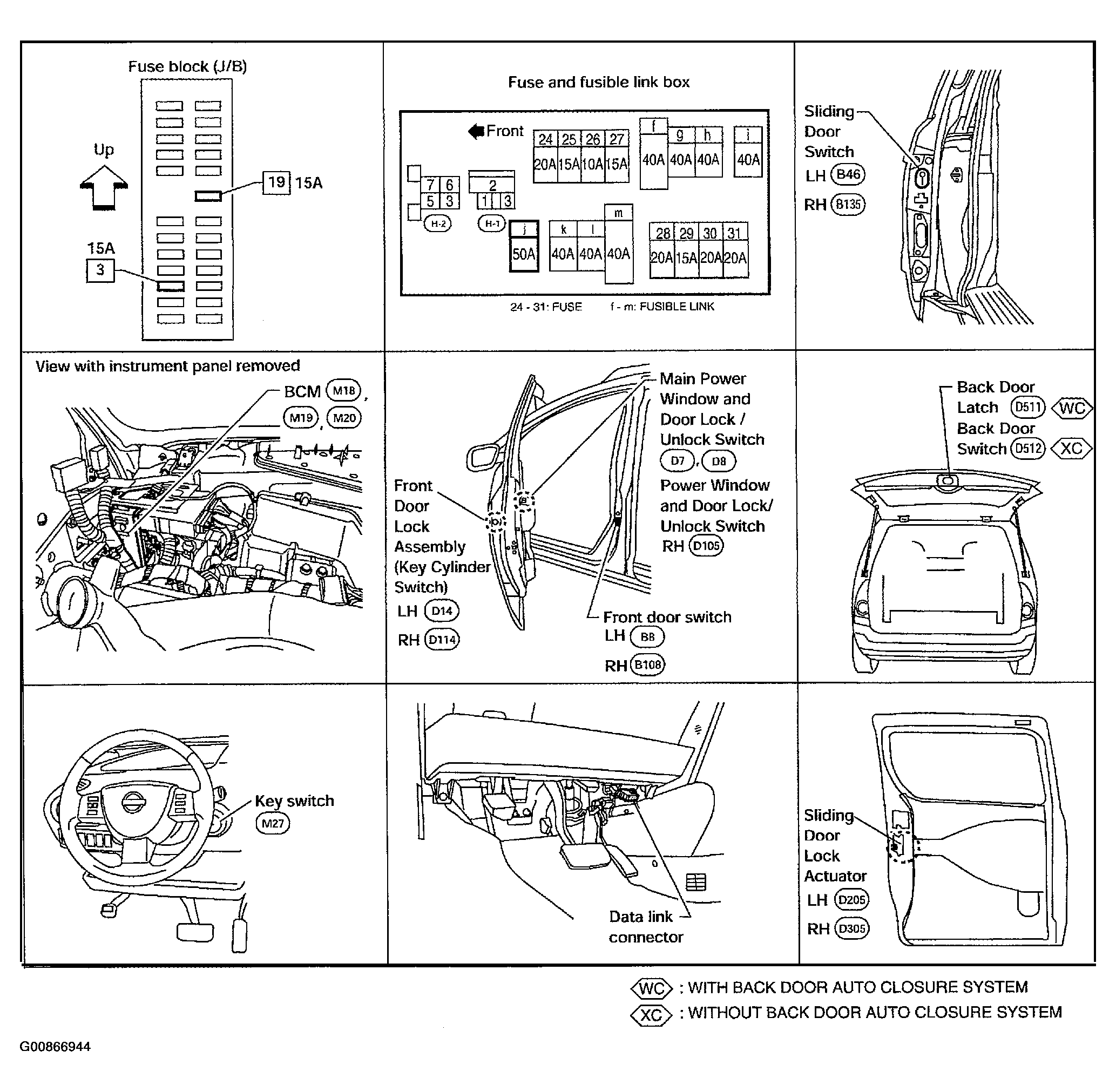

Fig 1: Identifying Component Parts & Harness Connector Location
G00866944Courtesy of NISSAN MOTOR CO., U.S.A.
