Removal Of Seat Belt Buckle

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to "REMOVAL AND INSTALLATION "
  2. Remove the screws and seat cushion inner finisher.
  3. Remove the anchor bolt and buckle.

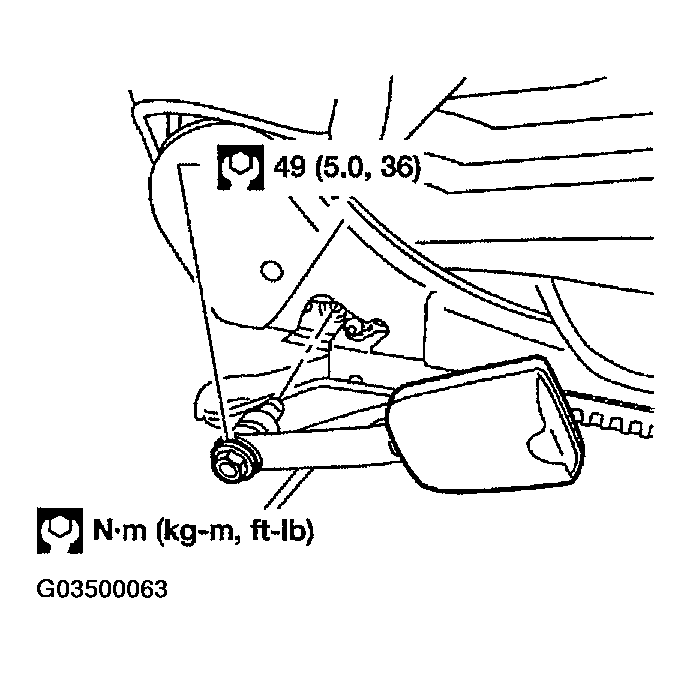

    Fig 1: Removing Seat Belt Buckle
    G03500063Courtesy of NISSAN MOTOR CO., U.S.A.
