Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front wheels in the straight-ahead position.
  2. Remove the driver air bag module. Refer to REMOVAL & INSTALLATION .
  3. Remove the steering wheel center nut.
  4. Remove the steering wheel using Tools.

    Tool number

    A : J-1859A

    B : J-42578

  5. Place a piece of tape across the spiral cable so it will not be rotated out of position.
  6. Inspect the steering wheel near the puller holes for damage. If damaged, replace the steering wheel.

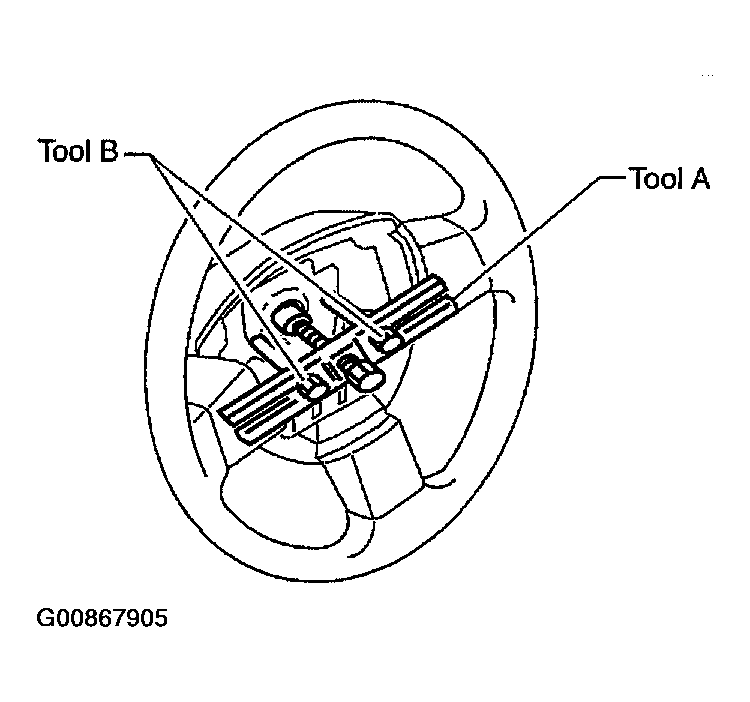

Fig 1: Removing Steering Wheel Using Tools
G00867905Courtesy of NISSAN MOTOR CO., U.S.A.
