Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wheel and tire using power tool.
  2. Remove side splash guard.
  3. Remove heat insulator.
  4. Loosen adjustment screw and oil pump mounting bolt, then remove belt.
  5. Drain power steering fluid.
  6. Remove oil pump union bolts and hose.
  7. Remove oil pump bracket mounting bolts.
  8. Remove power steering oil pump.

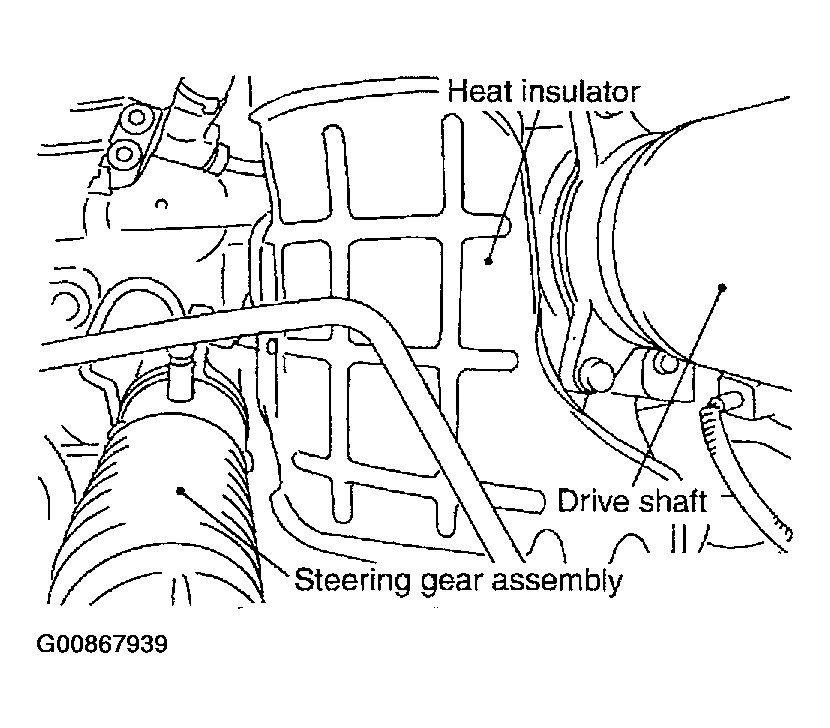

Fig 1: Identifying Steering Gear Assembly
G00867939Courtesy of NISSAN MOTOR CO., U.S.A.
