Checking Hydraulic System

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Before staring, check belt tension, driving pulley and tire pressure.

Set Tool. Open shut-off valve. Then bleed air. Refer to "BLEEDING HYDRAULIC SYSTEM ".

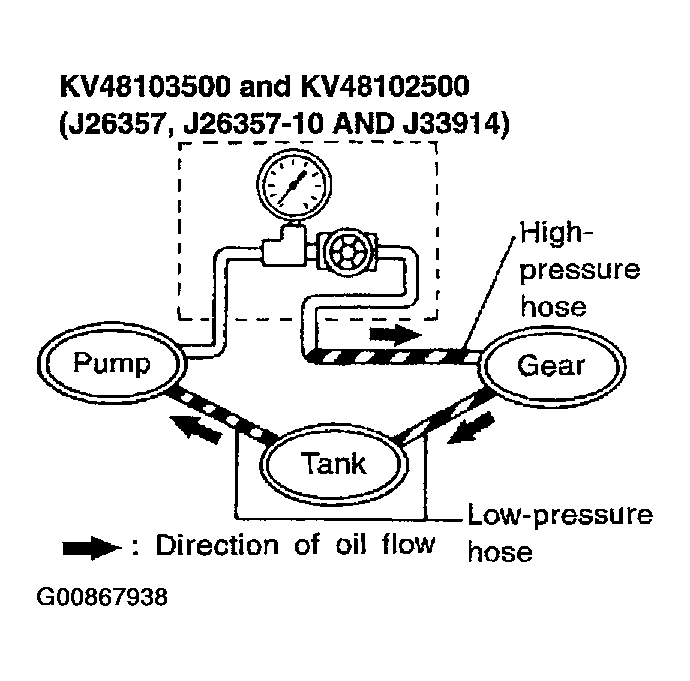

Fig 1: Checking Hydraulic System
Courtesy of NISSAN MOTOR CO., U.S.A.

Tool numbers : KV48103500 (J26357 and J26357-10)

KV48102500 (J33914)
Run engine at idle speed or 1, 00 rpm.
Make sure temperature of fluid in tank rises to 60 - 80°C (140 - 176°F).

WARNING: Warm up engine with shut-off valve fully opened. If engine is started with shut-off valve closed, fluid pressure in oil pump increases to maximum. This will raise oil temperature abnormally.
Check pressure with steering wheel fully turned to left and right positions with engine idling at 1, 00 rpm.
CAUTION: Do not hold the steering wheel in a locked position for more than 15 seconds.

Oil pump maximum standard pressure : 8, 00 kPa (89.76 kg/cm ² , 1, 76 psi)
- If pressure reaches maximum operating pressure, system is OK.
- If pressure increases above maximum operating pressure, check power steering pump flow control valve. Refer to " POWER STEERING " .
If power steering pressure is below the maximum operating pressure, slowly close shut-off valve and check pressure again.
CAUTION: Do not close shut-off valve for more than 15 seconds.
- If pressure increases to maximum operating pressure, gear is damaged. Refer to " REMOVAL AND INSTALLATION " .
- If pressure remains below maximum operating pressure, pump is damaged. Refer to " REMOVAL AND INSTALLATION " .
After checking hydraulic system, remove Tool and add fluid as necessary. Then completely bleed air out of system. Refer to "BLEEDING HYDRAULIC SYSTEM ".
