Inner and outer tie-rods
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

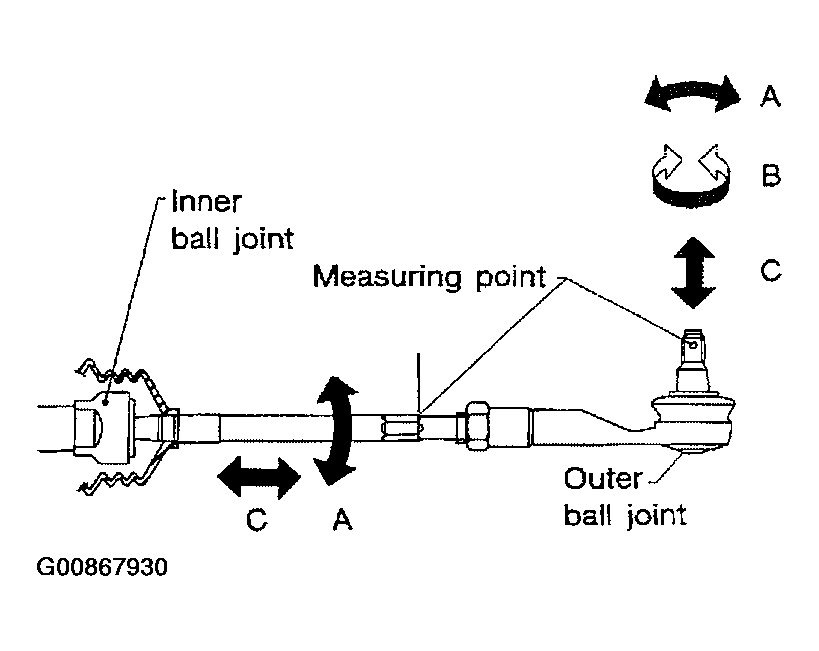

- Check ball joints for swinging force:
Tie-rod outer and inner ball joints swinging force A. Refer to "STEERING GEAR AND LINKAGE ".
- Check ball joint for rotating torque:
Tie-rod outer ball joint rotating torque B. Refer to "STEERING GEAR AND LINKAGE ".
- Check ball joints for axial end play:
Tie-rod outer and inner ball joints axial end play C. Refer to "STEERING GEAR AND LINKAGE ".
- Check condition of dust cover. If cracked, replace outer tie-rod.
