Adjustment for Rack Sliding Force: Decrease

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Decrease rack sliding force as follows:

Loosen adjusting screw two rotations counterclockwise.
CAUTION:
- Do not remove adjusting screw.
- Steering gear must replaced if adjusting screw is removed or loosened more than two rotations.
Tighten adjusting screw in 40° - 60° increments until rack sliding force is within specification.

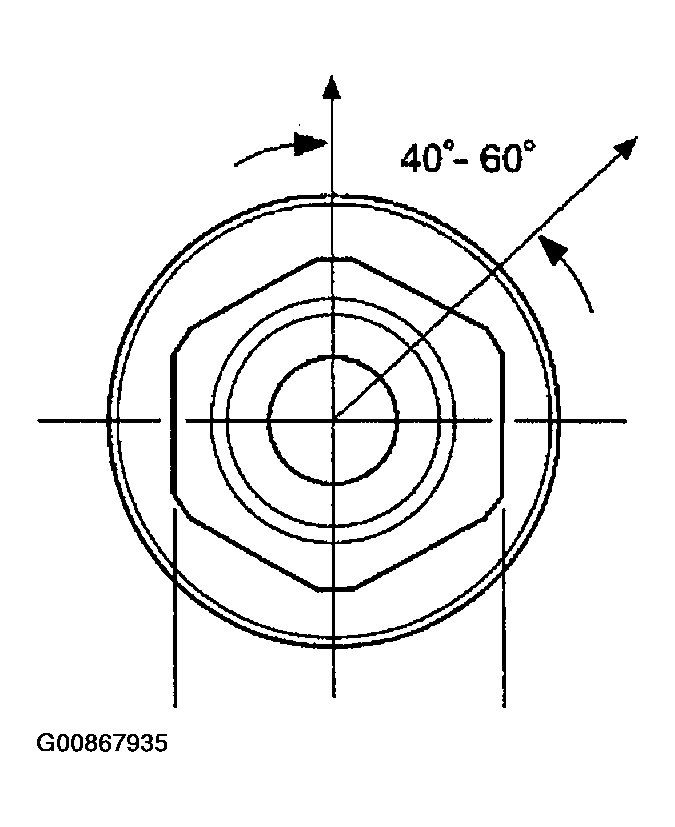

Fig 1: Identifying Adjusting Screw Tightening Angle
Courtesy of NISSAN MOTOR CO., U.S.A.

Average rack sliding force : 210.7 - 298.9 N (21.49 - 30.49 kg-f, 47.37 - 67.19 lb-f)

Maximum force deviation : 98 N (10 kg-f, 22 lb-f)

NOTE: Steering gear must be replaced if adjusting screw rotation torque is less than 5.0 N.m (0.9 kg-m, 44 in-lb).
Verify rack sliding force. Refer to "CHECKING RACK SLIDING FORCE ".
If rack sliding force is out of specification adjust rack sliding force again.
If rack sliding force cannot be adjusted within specification replace steering gear.
