NVH Troubleshooting Chart

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

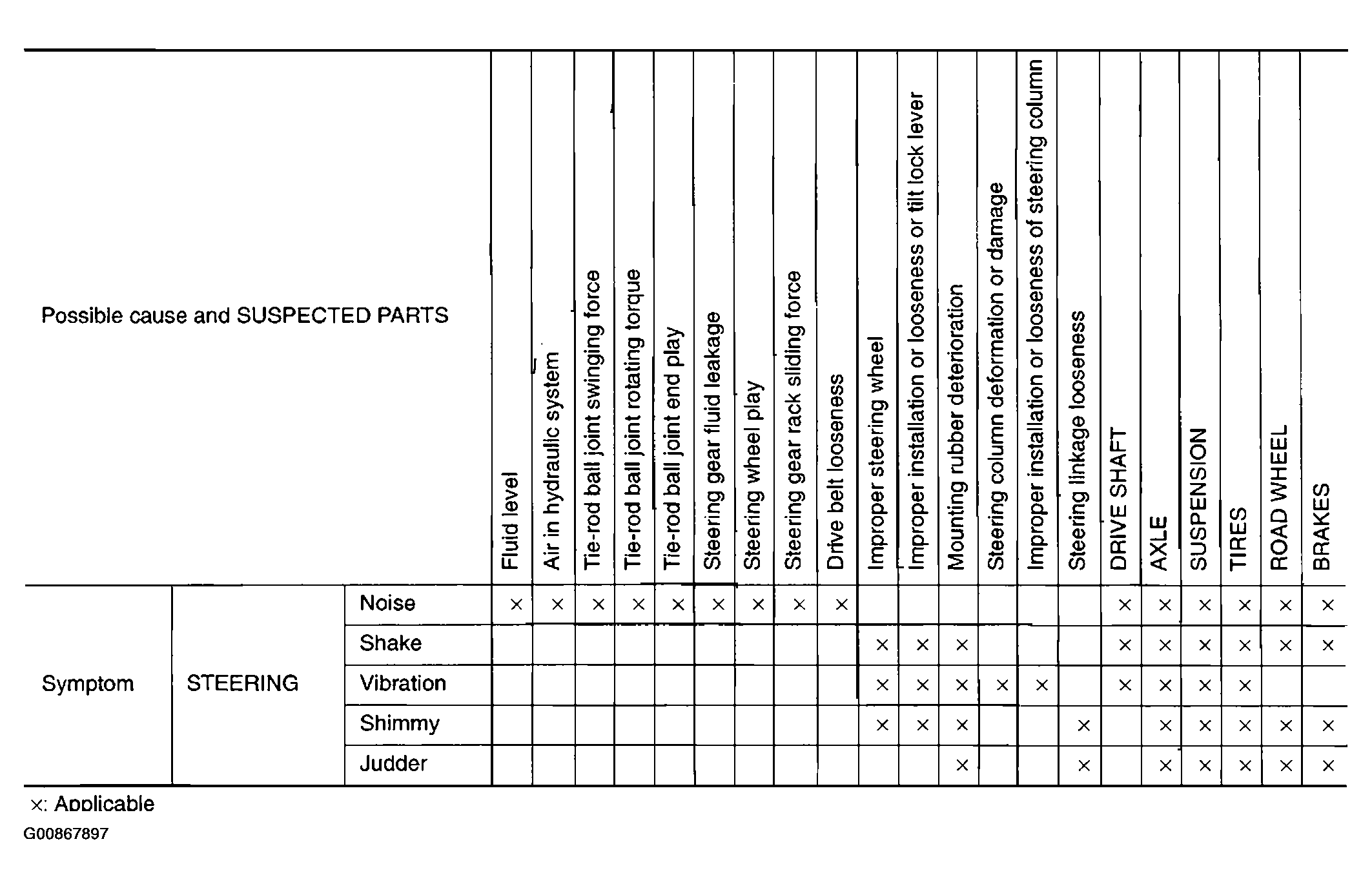

Fig 1: NVH Troubleshooting Chart
G00867897Courtesy of NISSAN MOTOR CO., U.S.A.
