Wiring Diagram -- VDC --

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

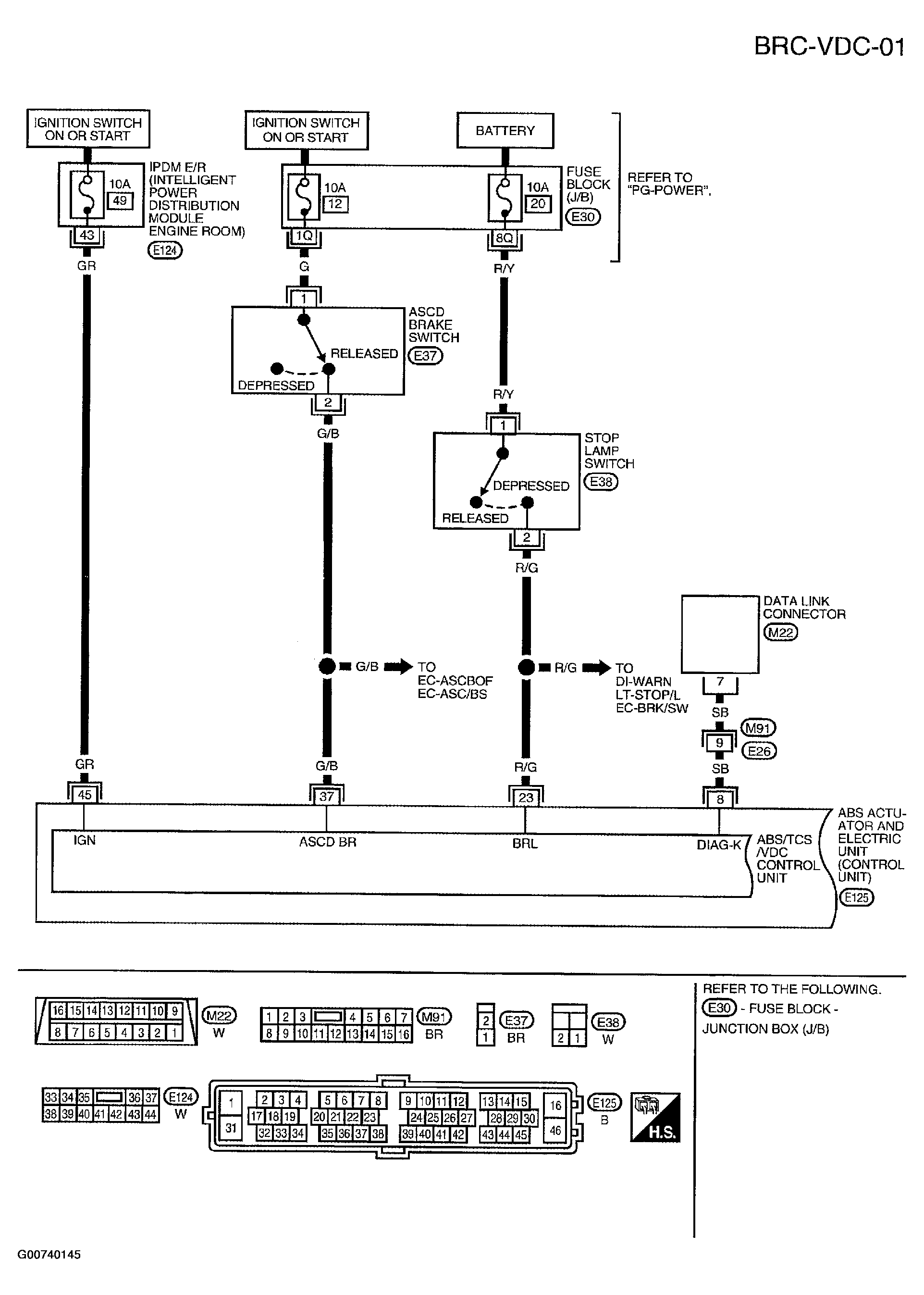

Fig 1: Wiring Diagram - BRC-VDC-01

Courtesy of NISSAN MOTOR CO., U.S.A.

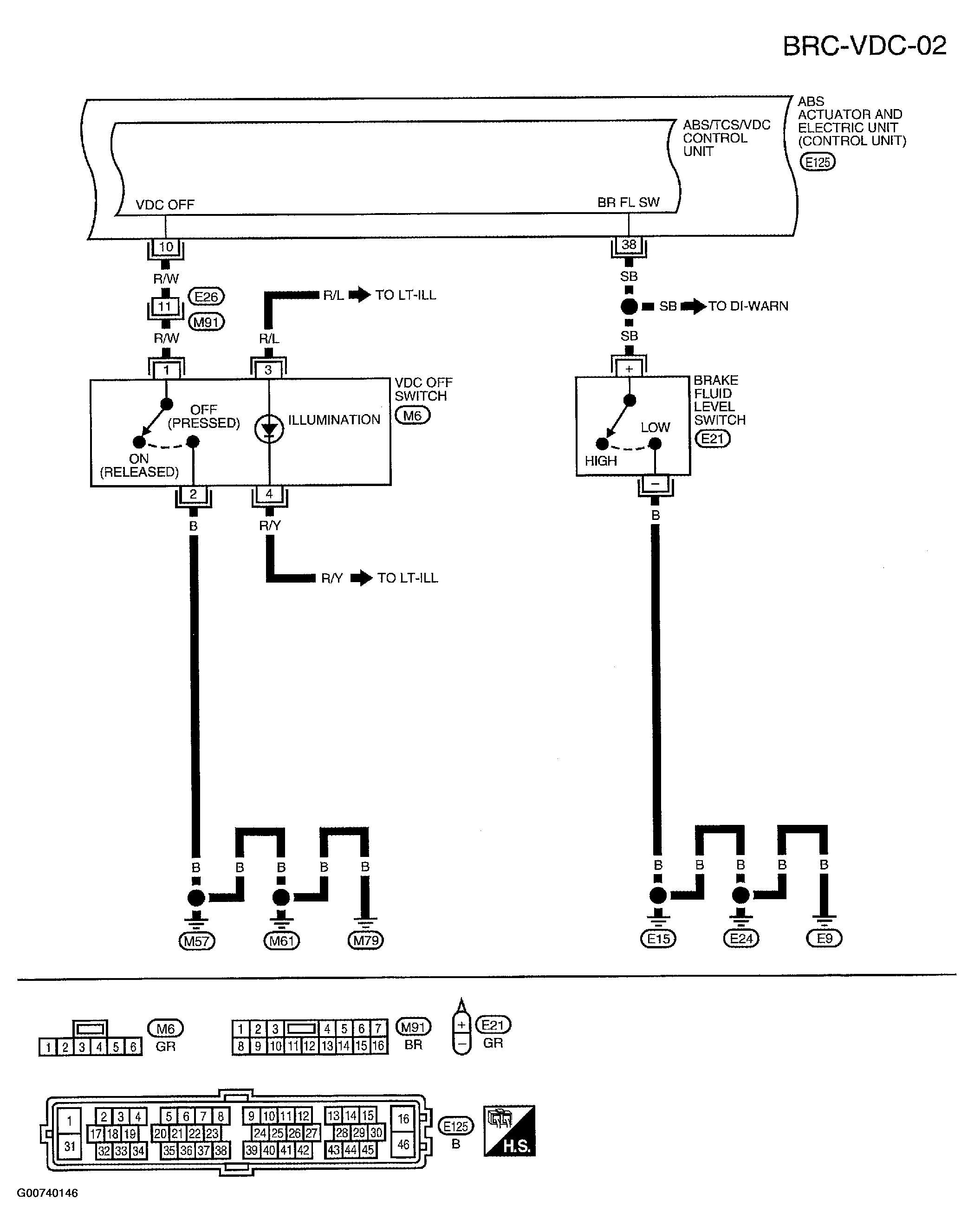

Fig 2: Wiring Diagram - BRC-VDC-02

Courtesy of NISSAN MOTOR CO., U.S.A.

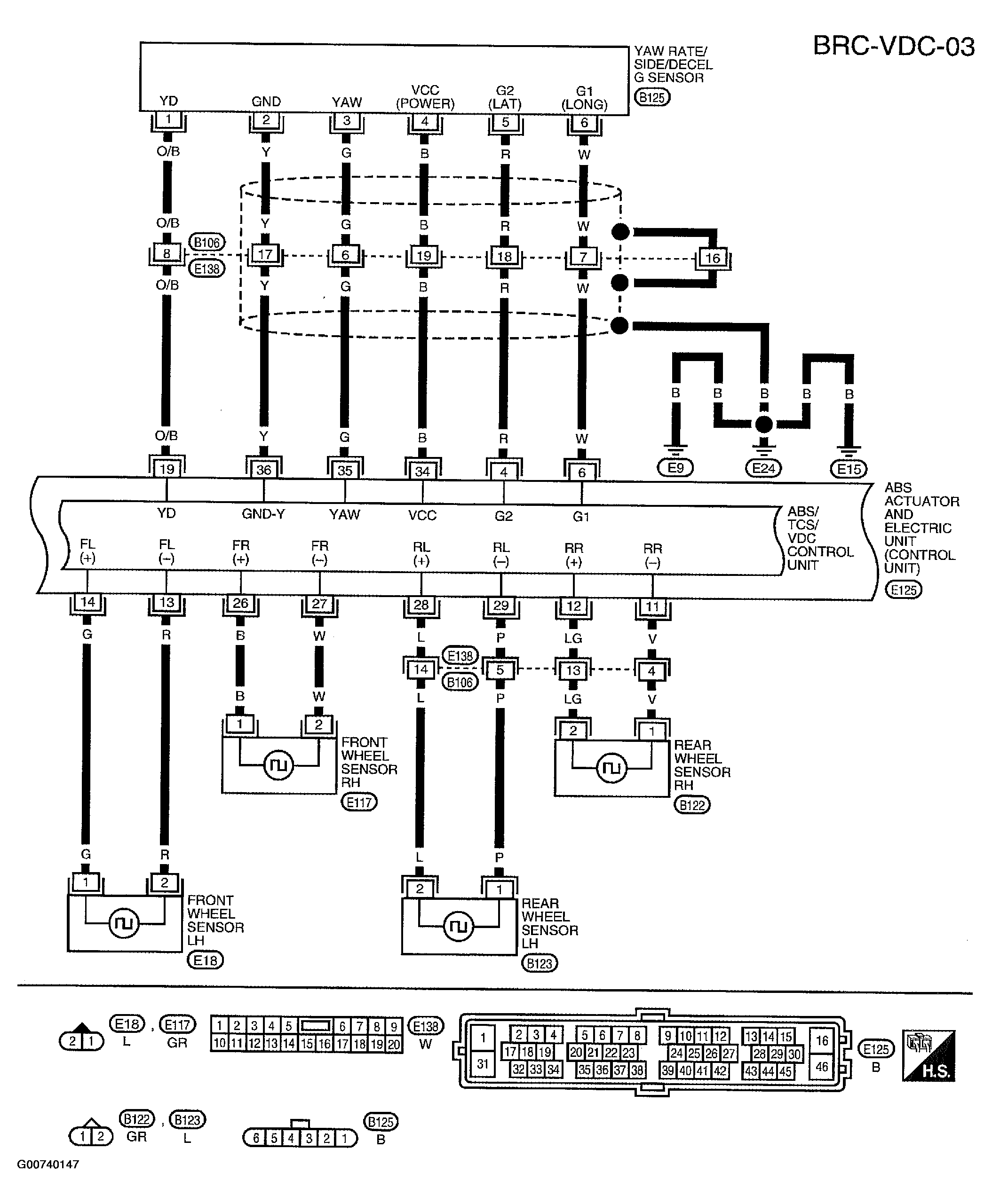

Fig 3: Wiring Diagram - BRC-VDC-03

Courtesy of NISSAN MOTOR CO., U.S.A.

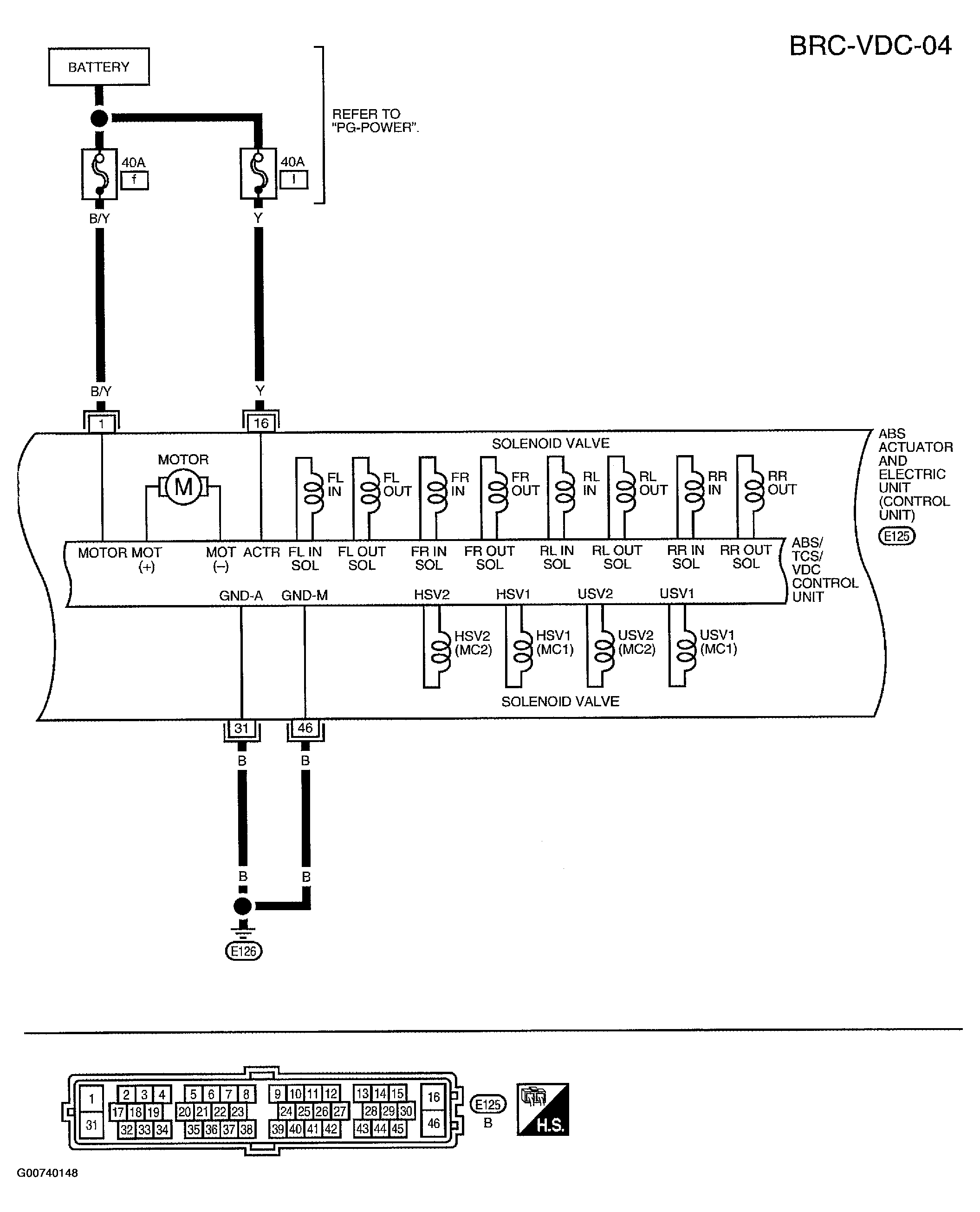

Fig 4: Wiring Diagram - BRC-VDC-04

Courtesy of NISSAN MOTOR CO., U.S.A.

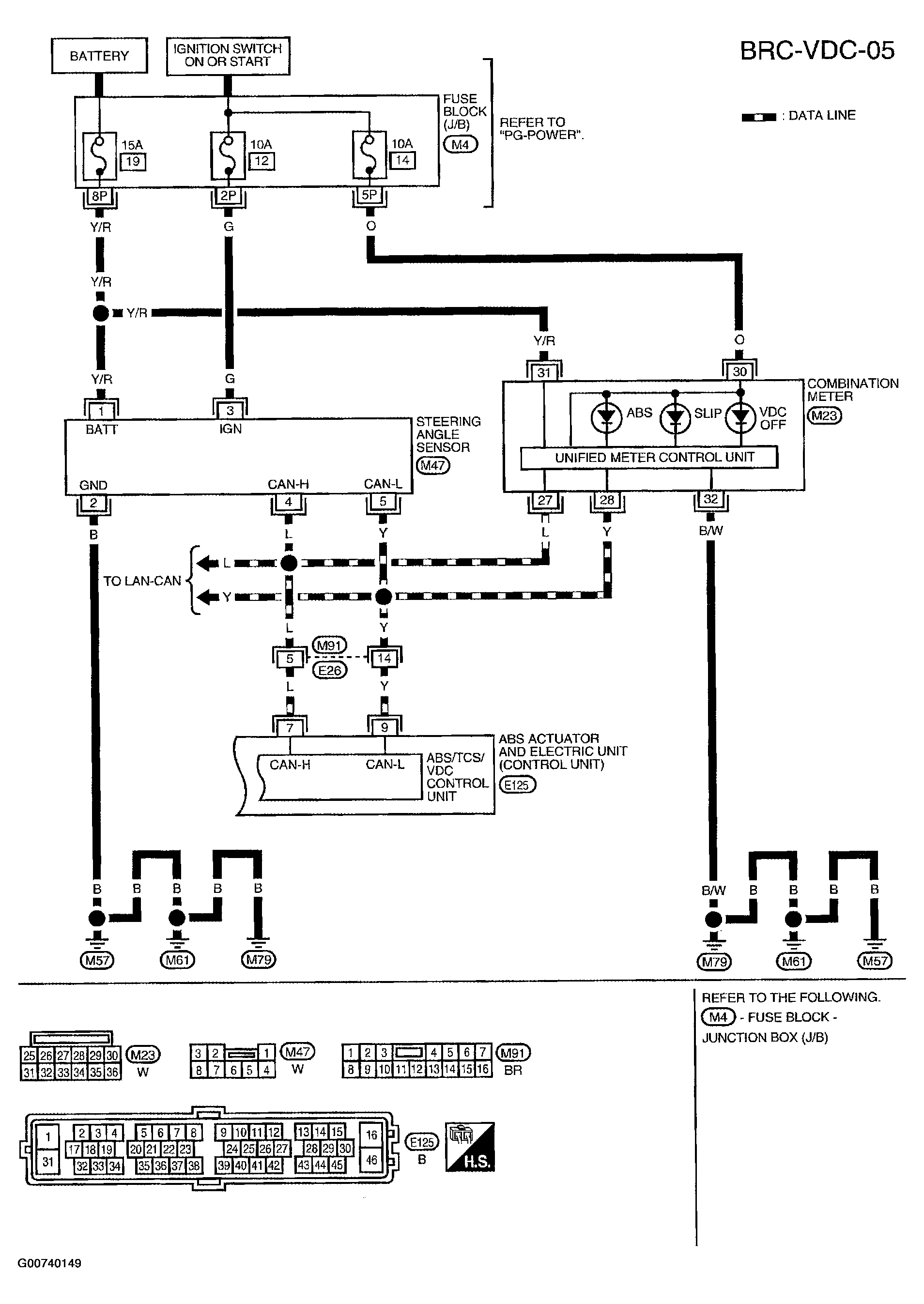

Fig 5: Wiring Diagram - BRC-VDC-05

Courtesy of NISSAN MOTOR CO., U.S.A.
