Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

perform self-diagnosis
Perform ABS actuator and electric unit (control unit) self-diagnosis.

Is "CAN COMM CIRCUIT" displayed in the self-diagnosis display items?
1. Yes: Print out the self-diagnosis results and go to 2.
2. No: INSPECTION END .
CONNECTOR INSPECTION
1. Disconnect the ABS actuator and electric unit (control unit) connector E125.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace as necessary.
CAN COMMUNICATION SYSTEM CHECK
Check the data monitor item "CAN Diagnosis Support Monitor".

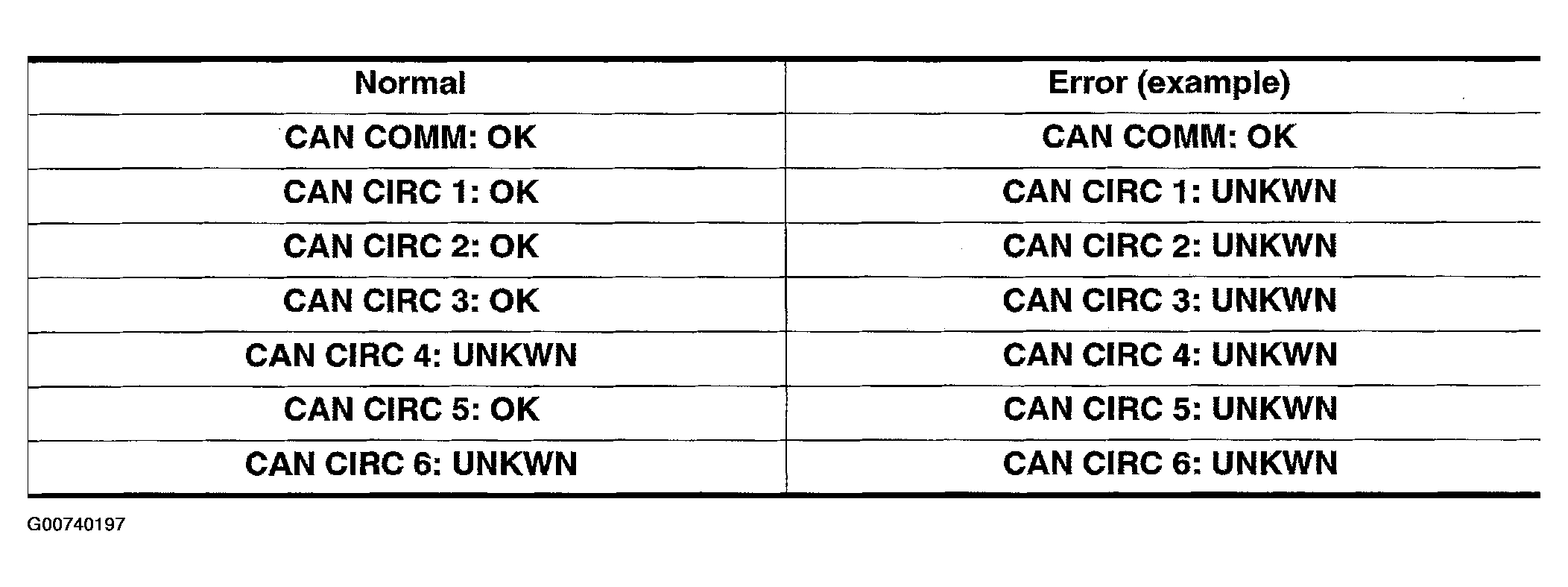

Fig 1: CAN Diagnosis Support Monitor Item Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

>> After printing out the monitor items, go to CAN system. Refer to "CAN COMMUNICATION ".
