Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.

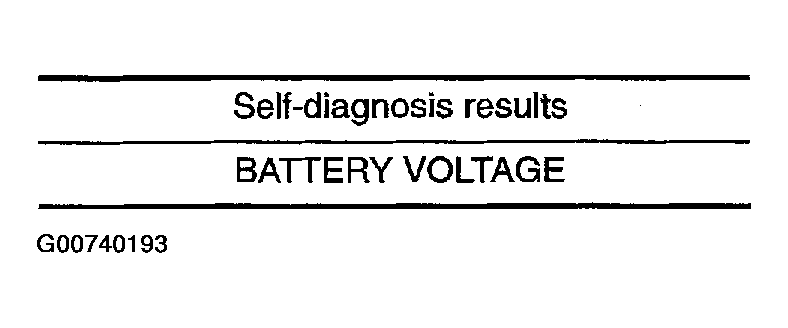

Fig 1: Self-Diagnosis Results Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Is the above displayed in the self-diagnosis display items?
1. Yes: GO TO 2.
2. No: INSPECTION END .
CONNECTOR INSPECTION
1. Disconnect the ABS actuator and electric unit (control unit) connector E125.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace as necessary.
ABS/TCS/VDC CONTROL UNIT POWER AND GROUND CIRCUIT INSPECTION
Measure the voltage and continuity between the ABS actuator and electric unit (control unit) connector E125 and ground.

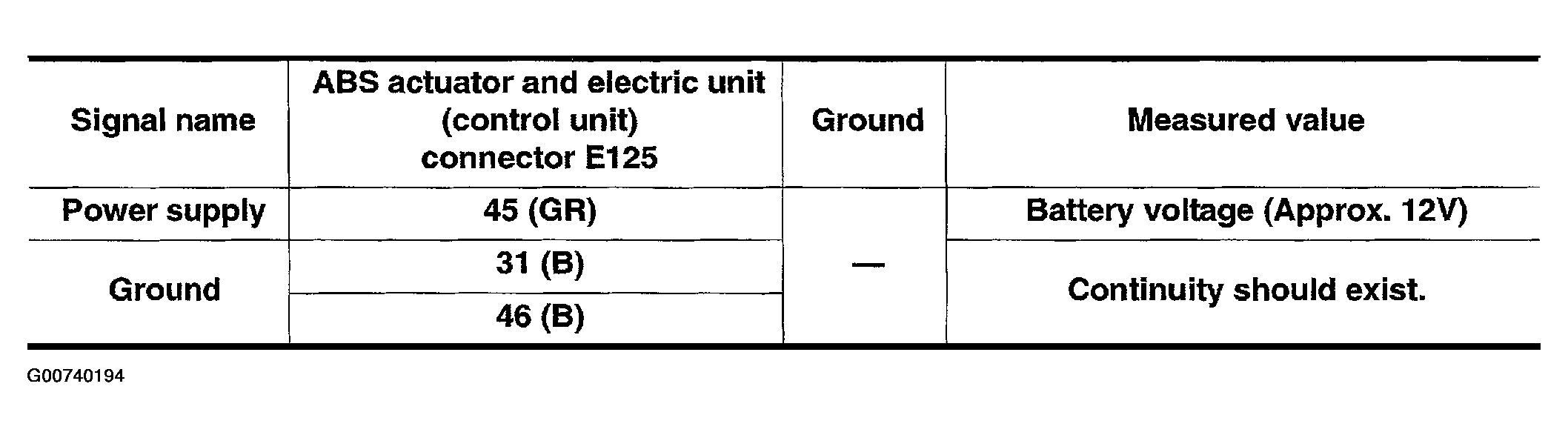

Fig 2: ABS Actuator And Electric Unit Connector E125 And Ground Voltage And Continuity Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Check the battery for loose terminals, low voltage, etc. Repair as necessary.
2. NG: Repair the circuit.
