Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

PERFORM self-diagnosis
Perform ABS actuator and electric unit (control unit) self-diagnosis.

Is "CAN COMM CIRCUIT" displayed in the self-diagnosis display items?
1. Yes: Print out the self-diagnosis results and go to 2.
2. No: INSPECTION END.
CONNECTOR INSPECTION
1. Disconnect the ABS actuator and electric unit (control unit) connector E125.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace as necessary.
CAN COMMUNICATION SYSTEM CHECK
Check the data monitor item "CAN Diagnosis Support Monitor".

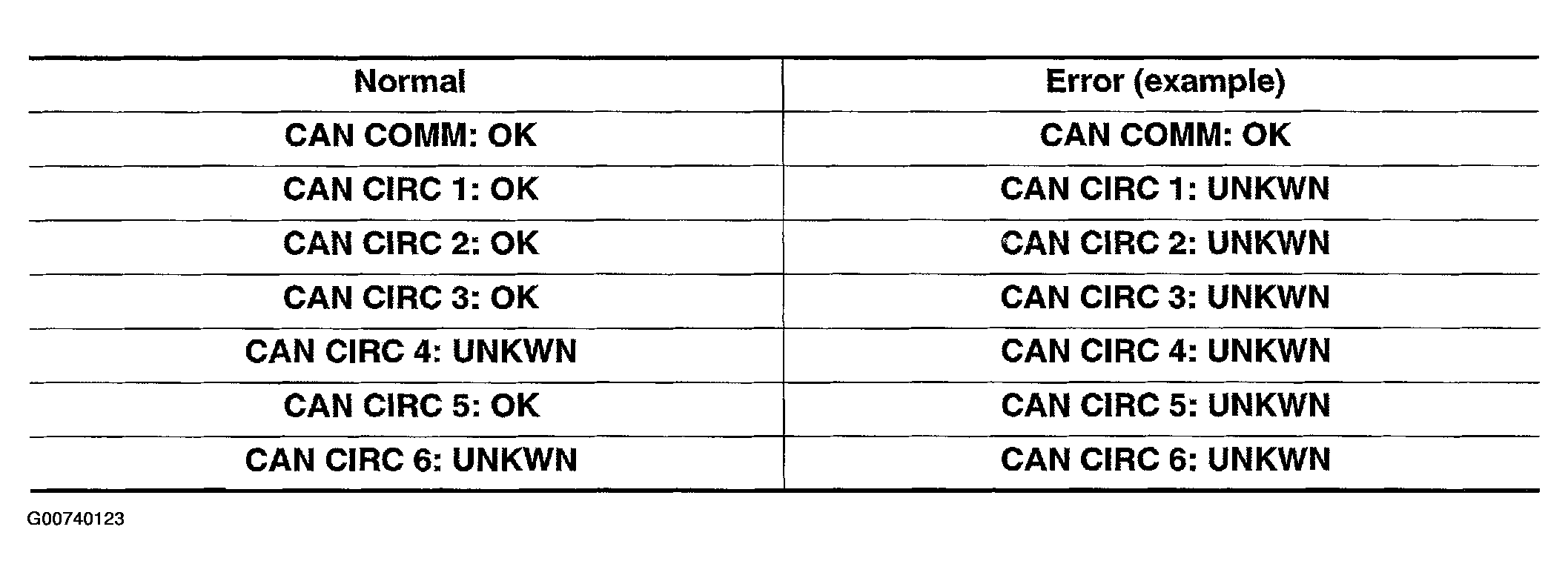

Fig 1: CAN Diagnosis Support Monitor Item Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

After printing out the monitor items, go to CAN system. Refer to "CAN COMMUNICATION ".
