Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CONNECTOR
1. Disconnect BCM harness connectors M18, M19 and M20.
2. Check terminals for damage or loose connections.
Inspection results OK?
1. OK: GO TO 2.
2. NG: Repair or replace damaged parts.

CHECK POWER SUPPLY CIRCUIT (BAT)

Check voltage between BCM harness connector M19 terminal 55 (W/B) and ground.

BCM HARNESS CONNECTOR M19 VOLTAGE SPECIFICATION

Terminals			Voltage (Approx.)
(+)		(-)
Connector	Terminal (Wire color)	Ground	12 V
M19	55 (W/B)

OK or NG

OK: GO TO 3.
NG: Check BCM power supply circuit for open or short.

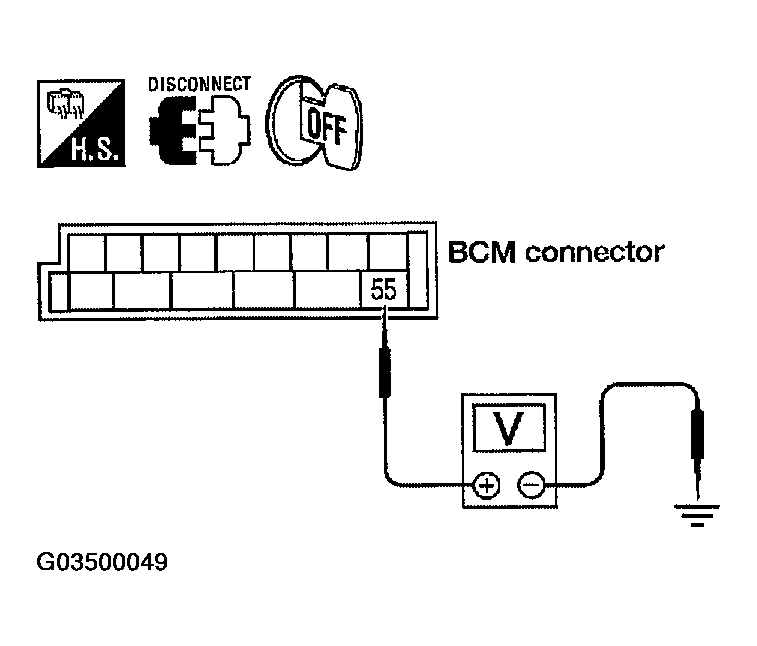

Fig 1: Checking Voltage Between BCM Harness Connector M19 Terminal 55 (W/B) And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK POWER SUPPLY CIRCUIT (IGN)

Turn ignition switch ON.
Check voltage between BCM harness connector M18 terminal 38 (R) and ground.

BCM HARNESS CONNECTOR M18 VOLTAGE SPECIFICATION

Terminals			Voltage (Approx.)
(+)		(-)
Connector	Terminal (Wire color)	Ground	12 V
M18	38 (R)

OK or NG

OK: GO TO 4.
NG: Check BCM power supply circuit for open or short.

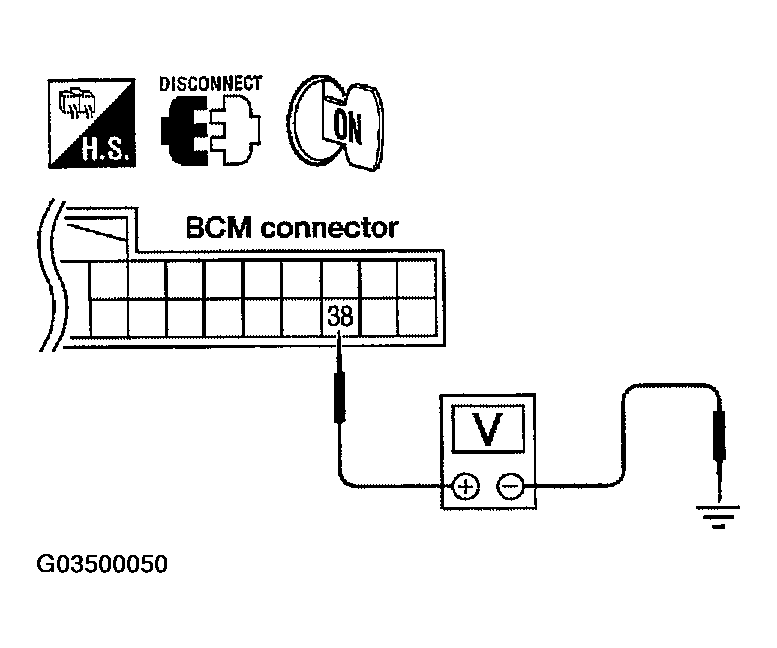

Fig 2: Checking Voltage Between BCM Harness Connector M18 Terminal 38 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK GROUND CIRCUIT

Check continuity between BCM harness connector M19 terminals 49 (B), 52 (BAN) and ground.

BCM HARNESS CONNECTOR CONTINUITY CONDITIONS

Terminals			Continuity
(+)		(-)
Connector	Terminal (Wire color)	Ground	Yes
M19	49 (B)
	52 (B/W)

OK or NG

OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
NG: Repair or replace BCM ground circuit.

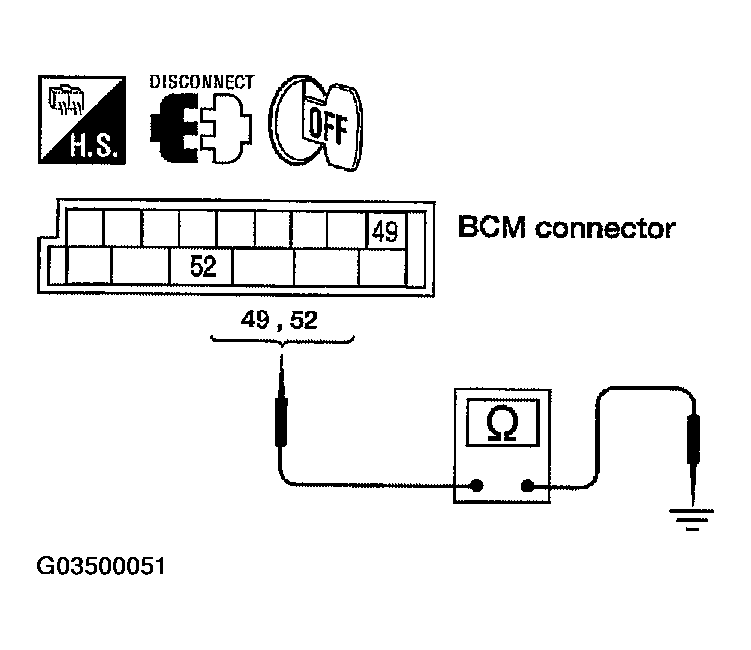

Fig 3: Checking Continuity Between BCM Harness Connector M19 Terminals 49, 52 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
