Wiring Diagram - T/WARN

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

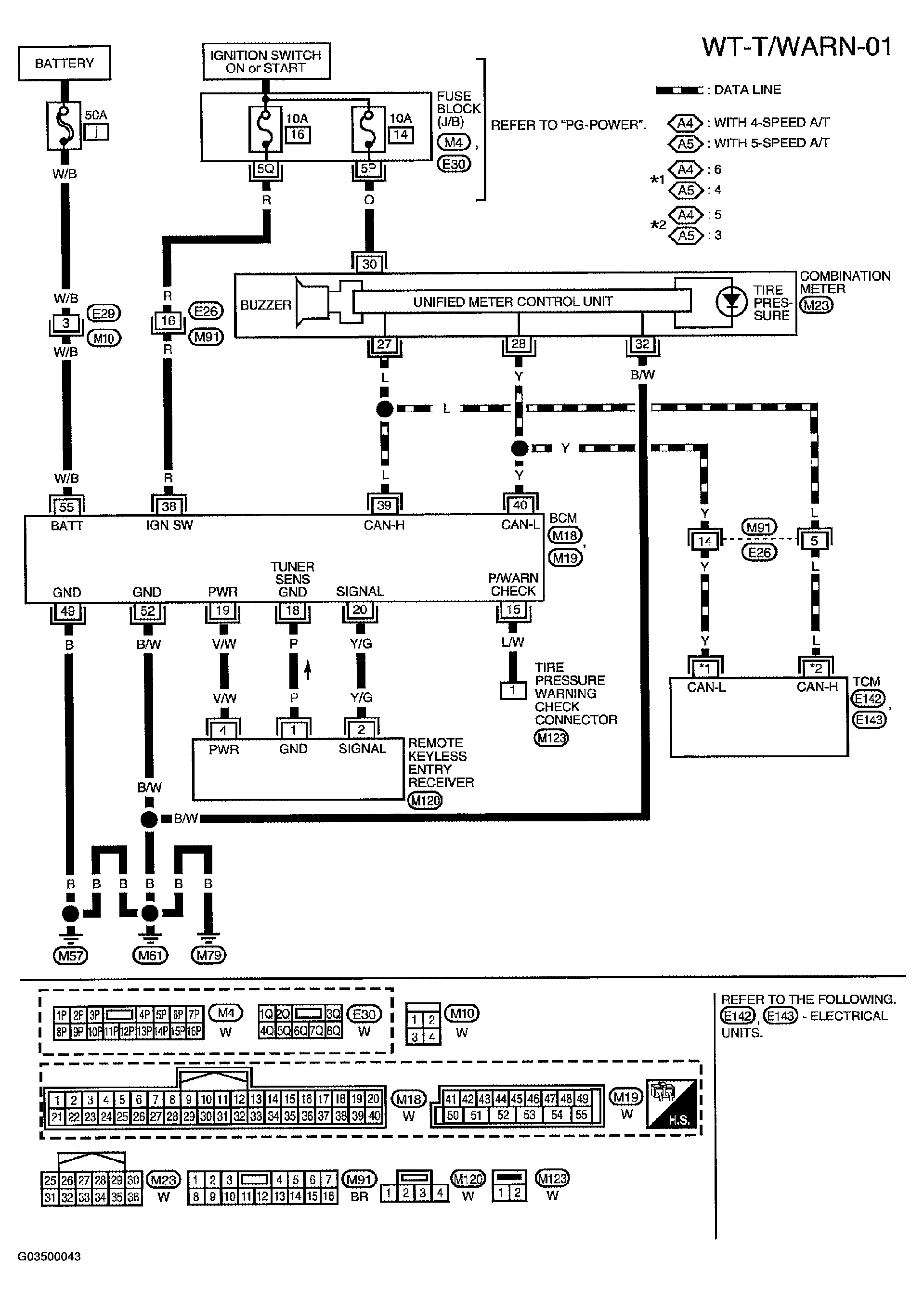

Fig 1: Wiring Diagram - WT-T/WARN-01

Courtesy of NISSAN MOTOR CO., U.S.A.
