With Transmitter Activation Tool

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

With the transmitter activation tool (J-45295) pushed against the front left transmitter, press the button for 5 seconds.
- With ignition switch ON, as the warning lamp flashes per the follow diagram, the respective transmitter then must be woken up.

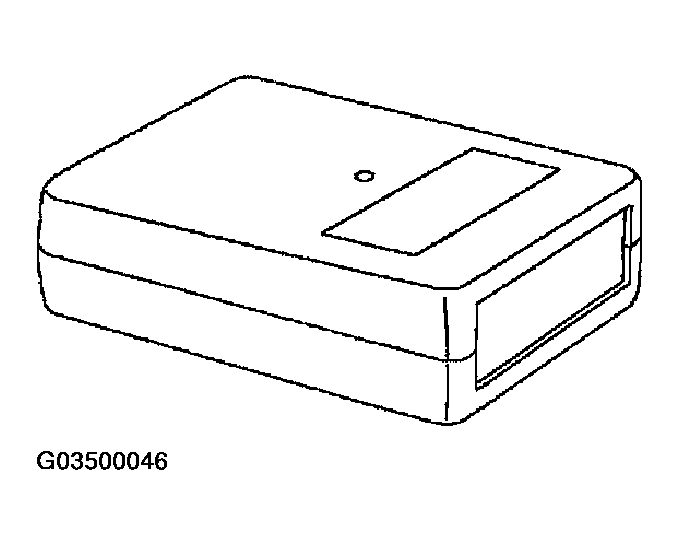

Fig 1: Identifying Transmitter Activation Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
When the BCM finishes assigning each tire ID, the BCM flashes the hazard warning lamps and trailer flasher lamps (if equipped) and sends flashing indicator status by CAN according to the following time chart. Please see details of trailer flashing lamps since the BCM controls trailer flasher lamps as brake lamps.

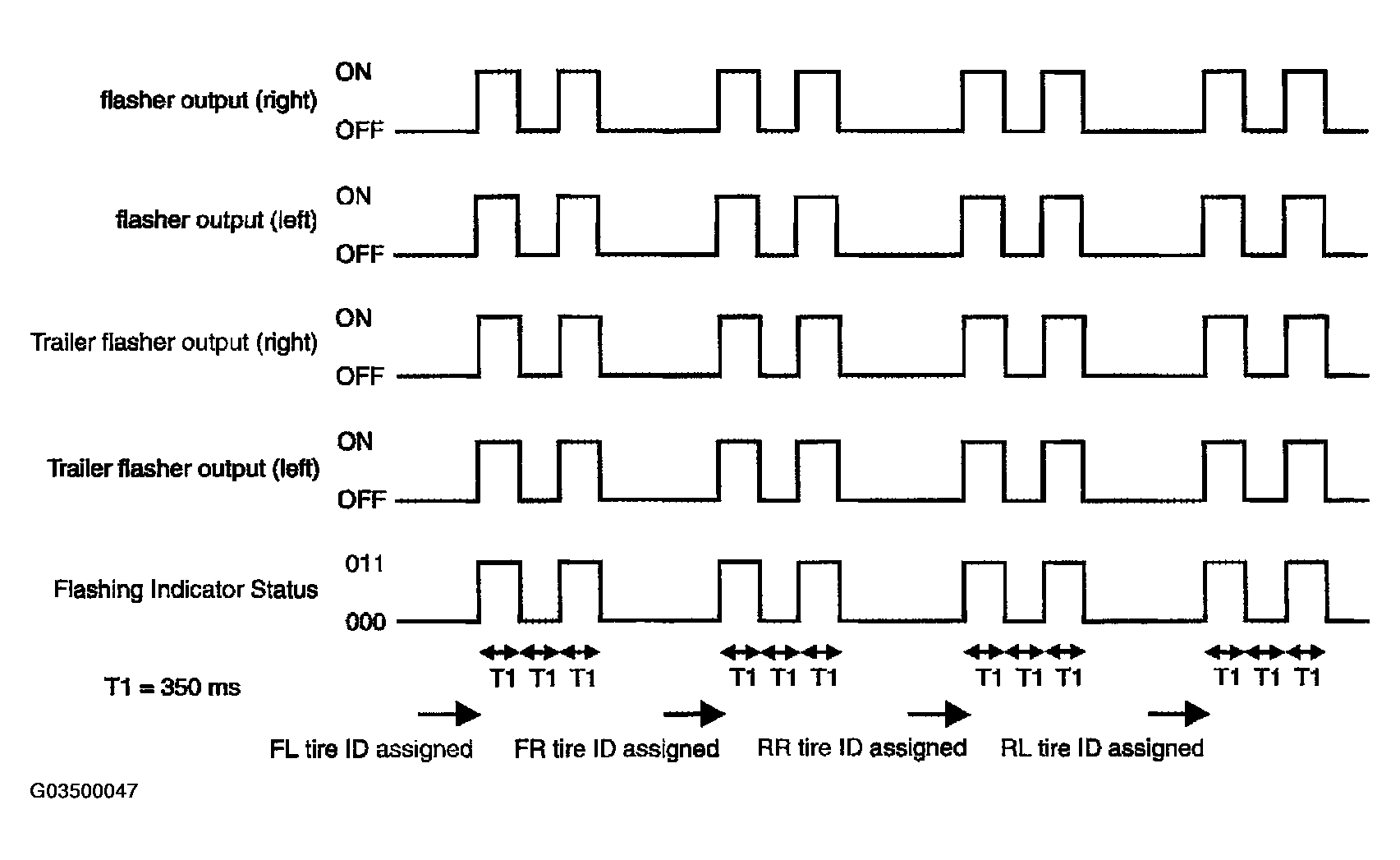

Fig 2: Flasher Indicators Blinking Pattern
Courtesy of NISSAN MOTOR CO., U.S.A.
After completing wake up of all transmitters, make sure low tire pressure warning lamp goes out.
