Id Registration With Transmitter Activation Tool

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

This procedure must be done after replacement of a low tire pressure warning transmitter, BCM, or tire rotation.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected during self-diagnosis depending on control unit which carry out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.
Select "START (NISSAN BASED VHCL)".
Touch "BCM" on "SELECT SYSTEM" screen.
NOTE: If "BCM" is not indicated, go to "CAN COMMUNICATION ".
Select "AIR PRESSURE MONITOR" on "SELECT WORK ITEM" screen.
Select "WORK SUPPORT" on "SELECT DIAG MODE" screen, and select "ID REGIST".
With the transmitter activation tool (J-45295) pushed against the front left transmitter position of the tire air valve, press the button for 5 seconds.

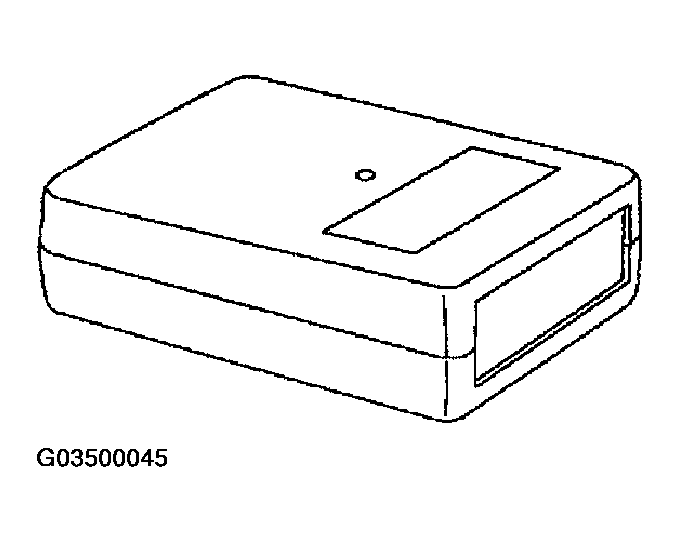

Fig 1: [Identifying Transmitter Activation Tool]
Courtesy of NISSAN MOTOR CO., U.S.A.

Register the IDs in order from FR LH, FR RH, RR RH and RR LH. When ID registration of each wheel has been completed, a buzzer sounds and the hazard warning lamps flash.

BUZZER SOUNDS AND THE HAZARD WARNING LAMPS FLASH CONDITION

Activation tire position		Buzzer	Hazard warning lamp	CONSULT-II
1	Front LH	Once	2 times flashing	"YET" --> "DONE"
2	Front RH	2 times
3	Rear RH	3 times
4	Rear LH	4 times

After completing all ID registrations, press "END" to complete the procedure.
NOTE: Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results display will not function properly.
