Aluminum Wheel

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check tires for wear and improper inflation.
  2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel runout.
  1. Remove tire from aluminum wheel and mount on a tire balance machine.
  2. Set dial indicator as shown in the illustration.

    Wheel runout (Dial indicator value):

    Refer to "SERVICE DATA "

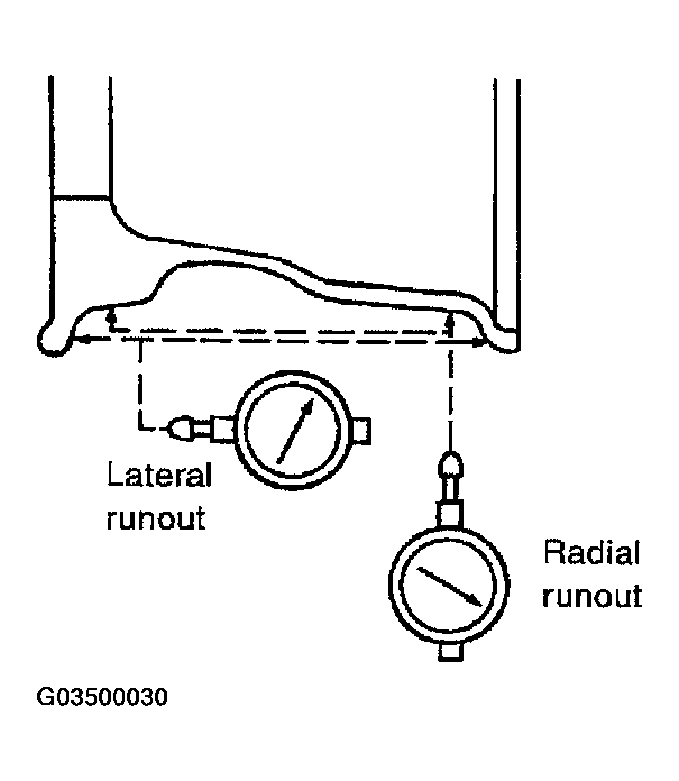

Fig 1: Checking Wheel Run Out Using Dial Indicator (Aluminum Wheel)
G03500030Courtesy of NISSAN MOTOR CO., U.S.A.
