Road Wheel Tire Assembly: Rotation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When installing wheels, tighten them diagonally by dividing the work two to three times in order to prevent the wheels from developing any distortion.
  1. Tightening torque of wheel nut:
    1. 112 N.m (11 kg-m, 83 ft-lb)

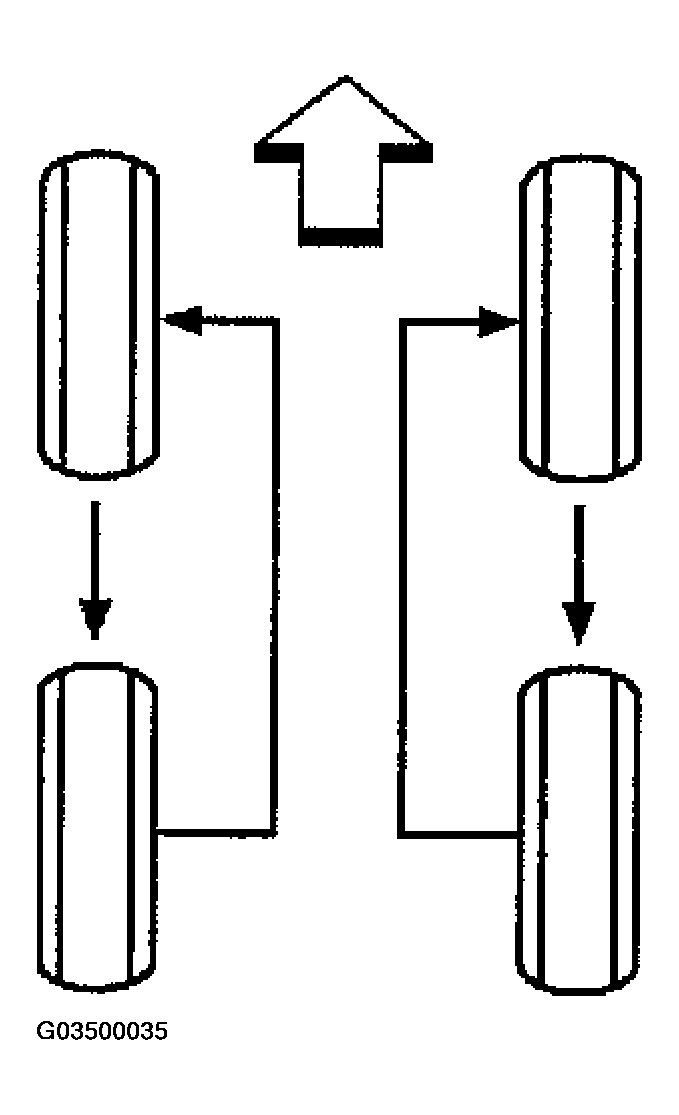

    Fig 1: Identifying Tire Rotation Pattern
    G03500035Courtesy of NISSAN MOTOR CO., U.S.A.
