Removal And Installation: Transmitter: Installation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put first side of tire onto rim.

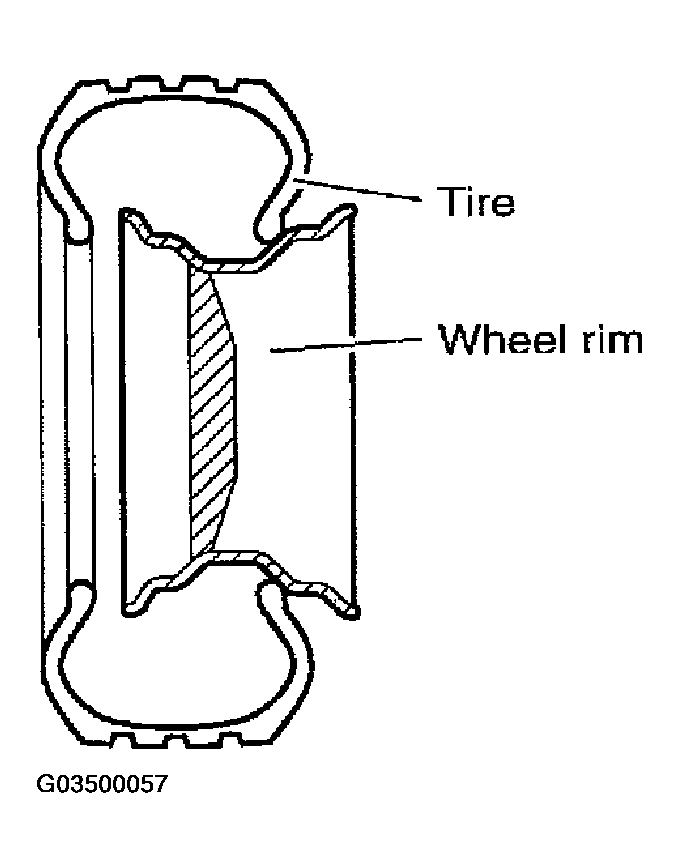

    Fig 1: Putting First Side Of Tire Onto Rim
    G03500057Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Mount transmitter on rim and tighten nut to the specification shown.

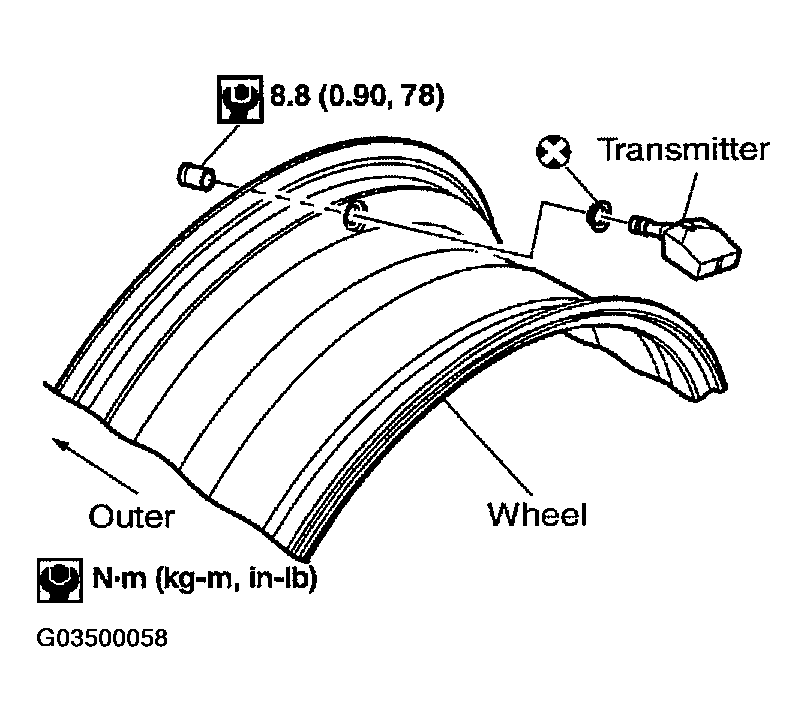

    Fig 2: Installing Transmitter (1 Of 2)
    G03500058Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place wheel on turntable of tire machine. Ensure that transmitter is 270 degrees from mounting head when second side of tire is fitted.
    NOTE: Do not touch transmitter at mounting head.

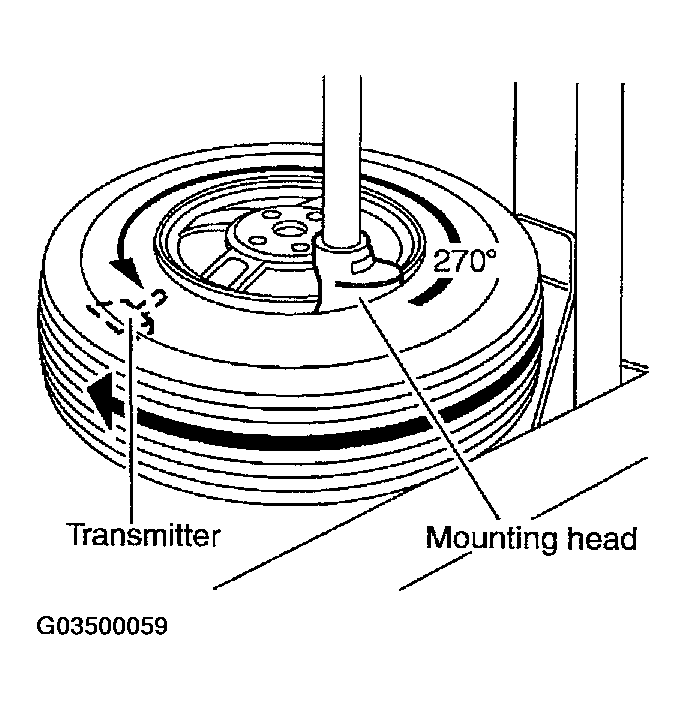

    Fig 3: Installing Transmitter (2 Of 2)
    G03500059Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Lubricate tire well and fit second side of tire as normal. Ensure that tire does not rotate relative to rim.
  5. Inflate tire and fit to appropriate wheel position.
