Symptom Chart

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Numbers are arranged in order of inspection.

Perform inspections starting with number one and work up.

CAUTION:
  • Do not remove or disassemble any RE5F22A model transaxle parts unless specified to do so in AT section.
  • Condition for "on vehicle" only.

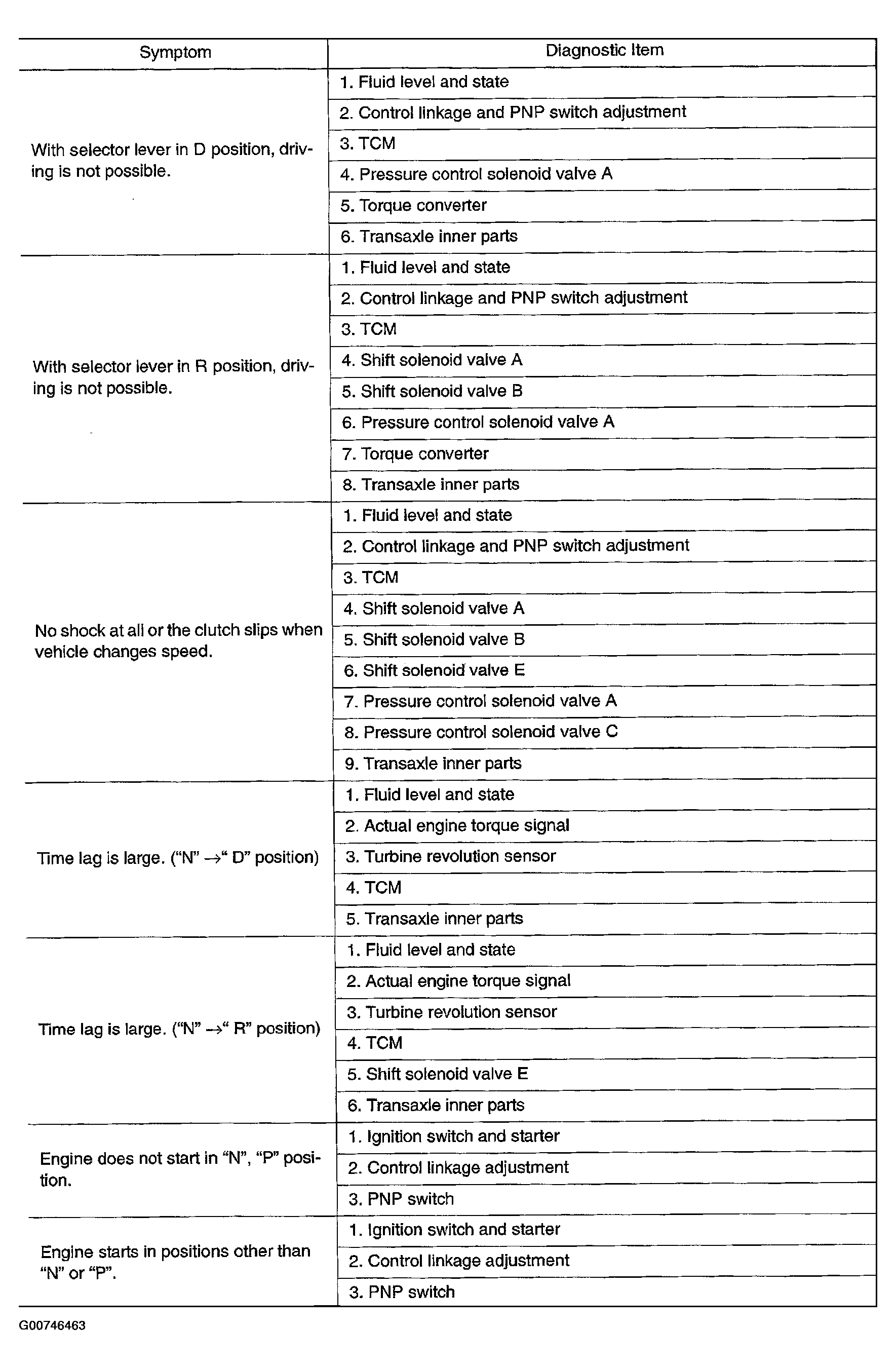

Fig 1: Symptom Chart (1 Of 6)
G00746463Courtesy of NISSAN MOTOR CO., U.S.A.

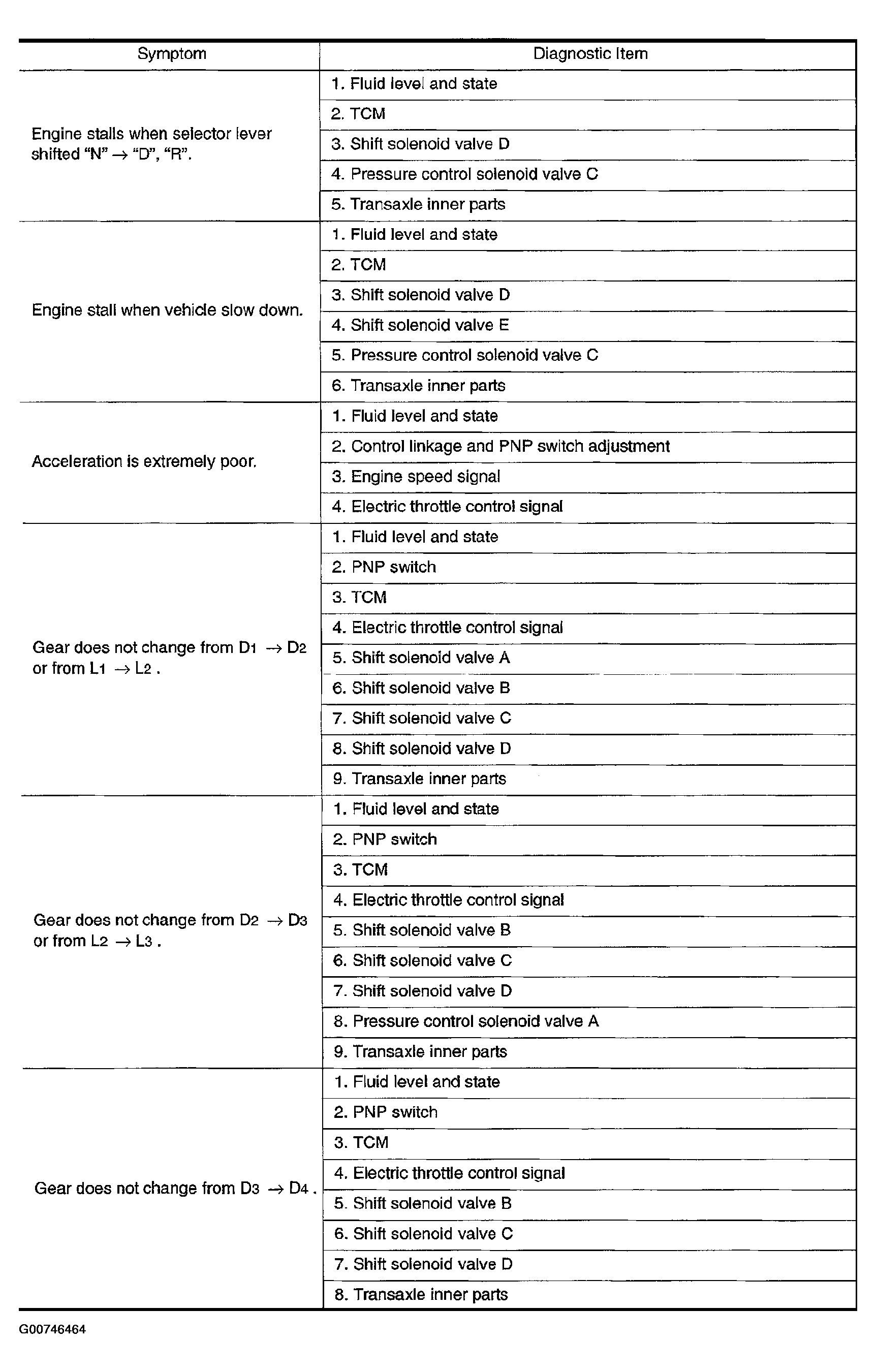

Fig 2: Symptom Chart (2 Of 6)
G00746464Courtesy of NISSAN MOTOR CO., U.S.A.

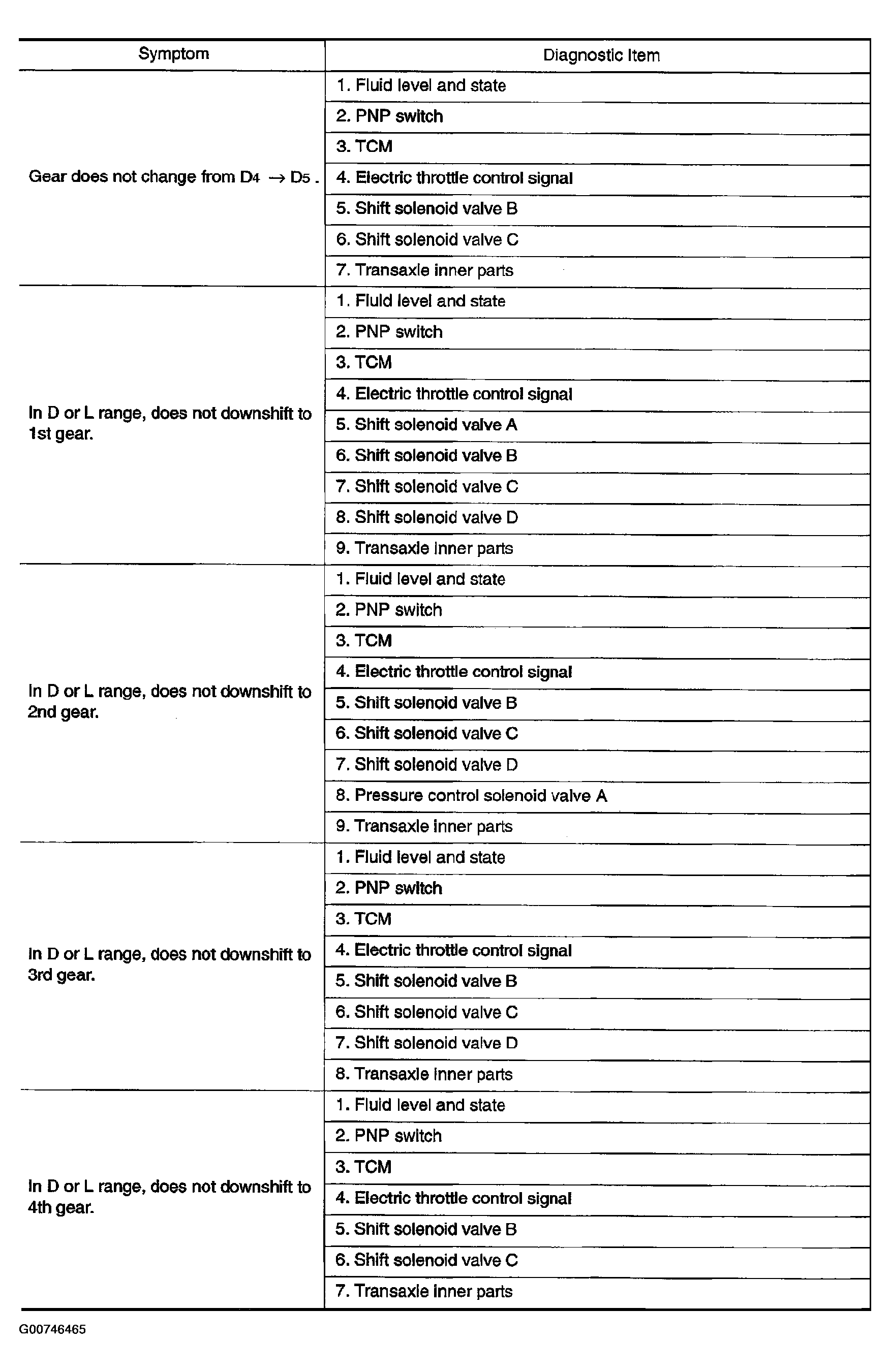

Fig 3: Symptom Chart (3 Of 6)
G00746465Courtesy of NISSAN MOTOR CO., U.S.A.

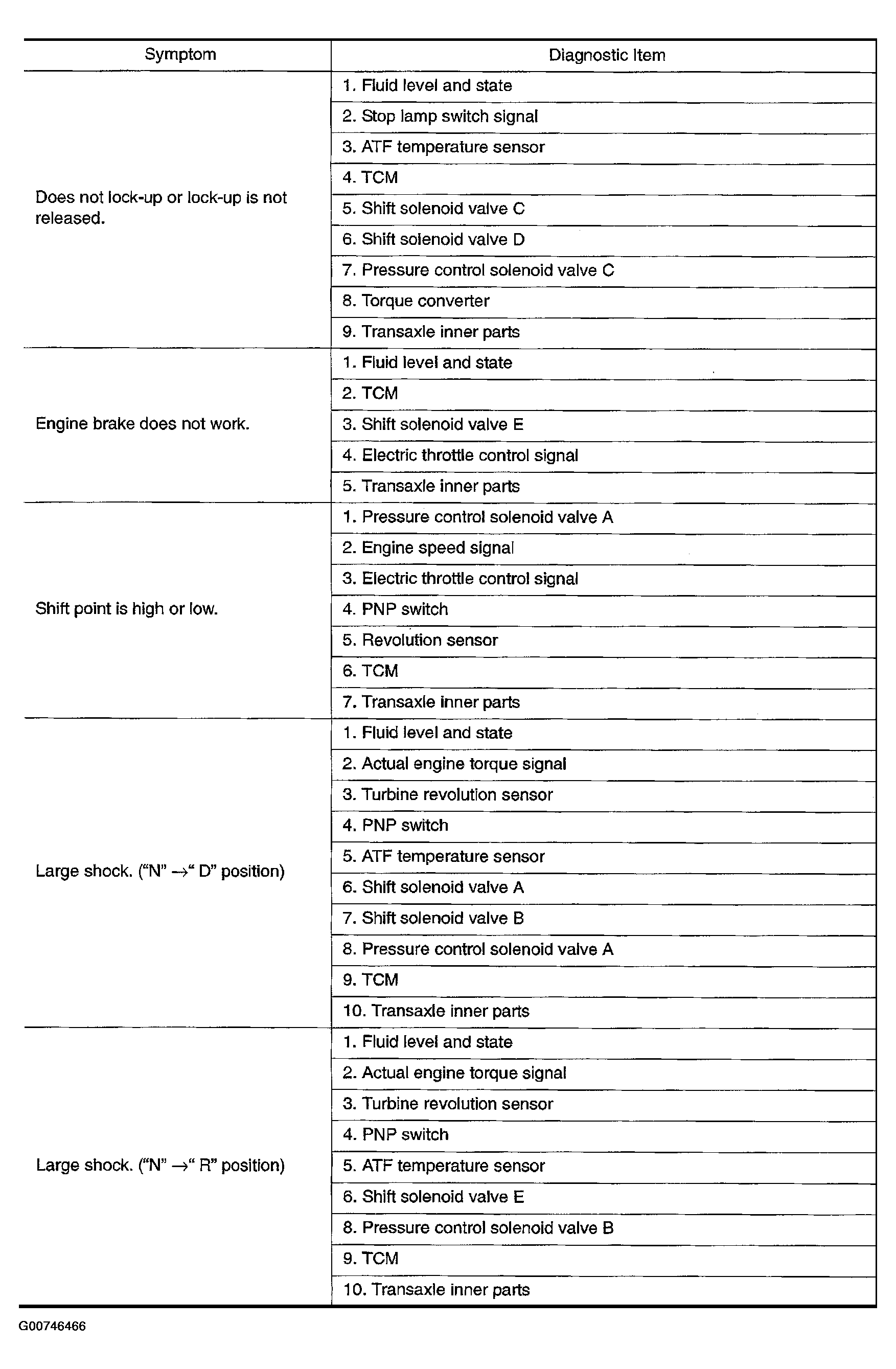

Fig 4: Symptom Chart (4 Of 6)
G00746466Courtesy of NISSAN MOTOR CO., U.S.A.

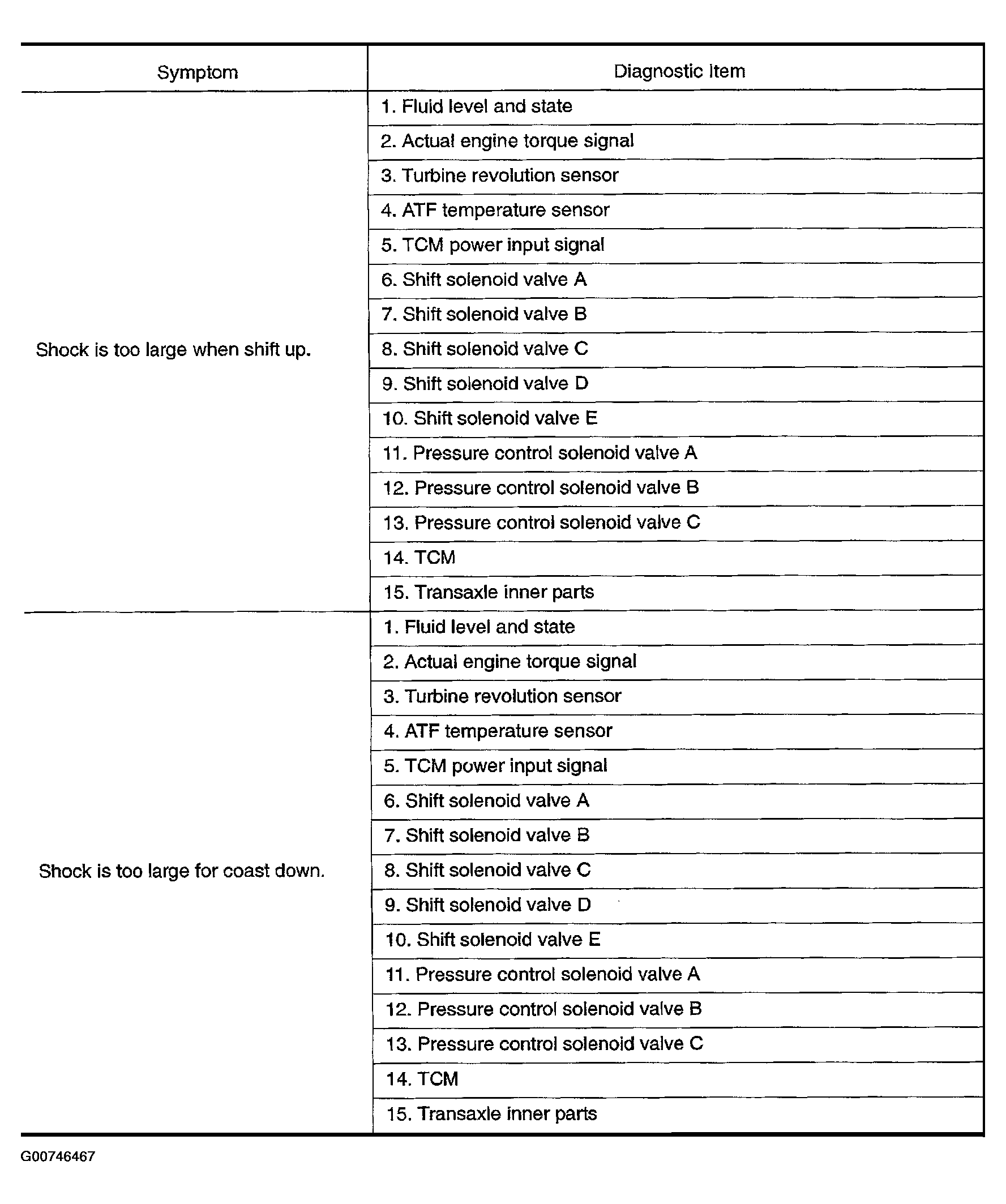

Fig 5: Symptom Chart (5 Of 6)
G00746467Courtesy of NISSAN MOTOR CO., U.S.A.

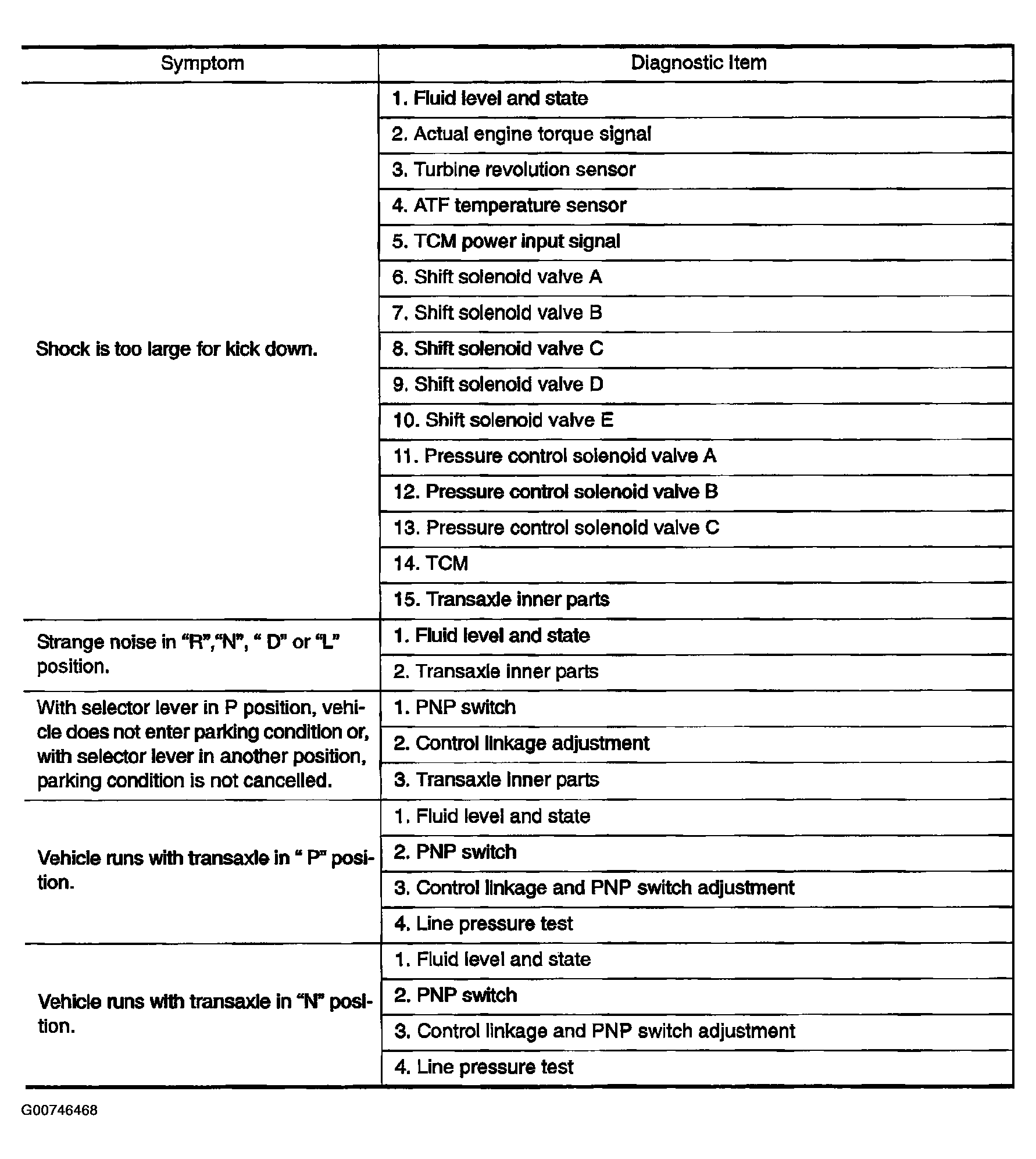

Fig 6: Symptom Chart (6 Of 6)
G00746468Courtesy of NISSAN MOTOR CO., U.S.A.
