Vehicle Speed When Performing And Releasing Complete Lock-Up

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

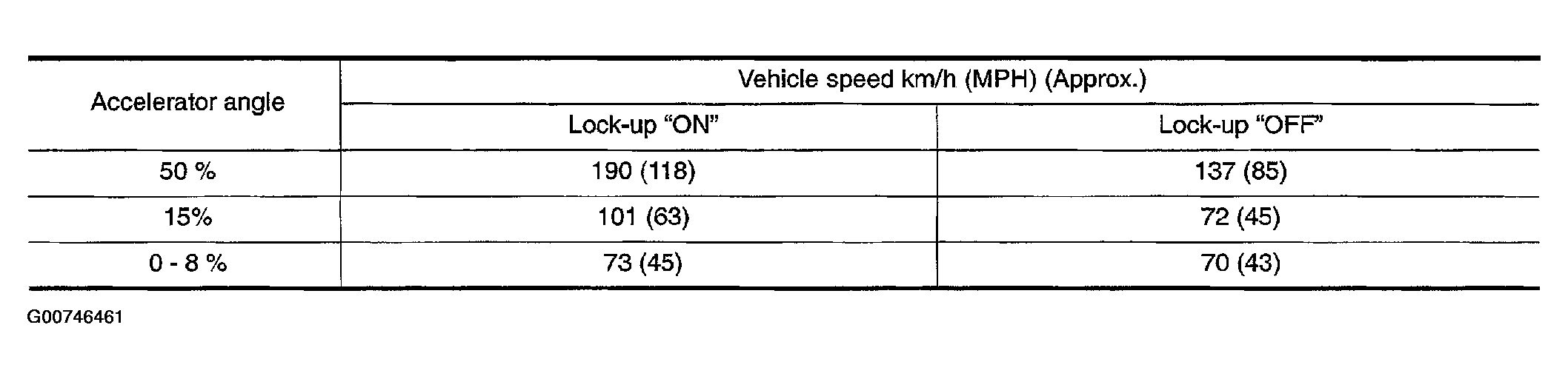

Fig 1: Vehicle Speed When Performing And Releasing Complete Lock-Up Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Lock-up vehicle speed indicates the speed in D position.
Perform lock-up inspection after warming up engine.
Lock-up vehicle speed may vary depending on the driving conditions and circumstances.
