Fluid condition check

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the fluid condition.

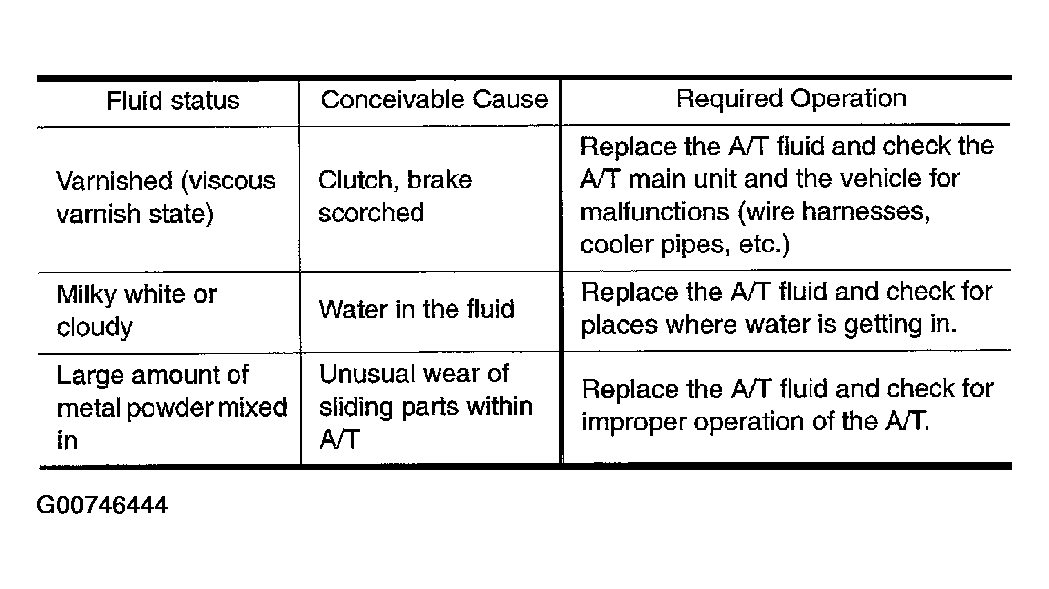

Fig 1: Fluid Condition Specification
G00746444Courtesy of NISSAN MOTOR CO., U.S.A.

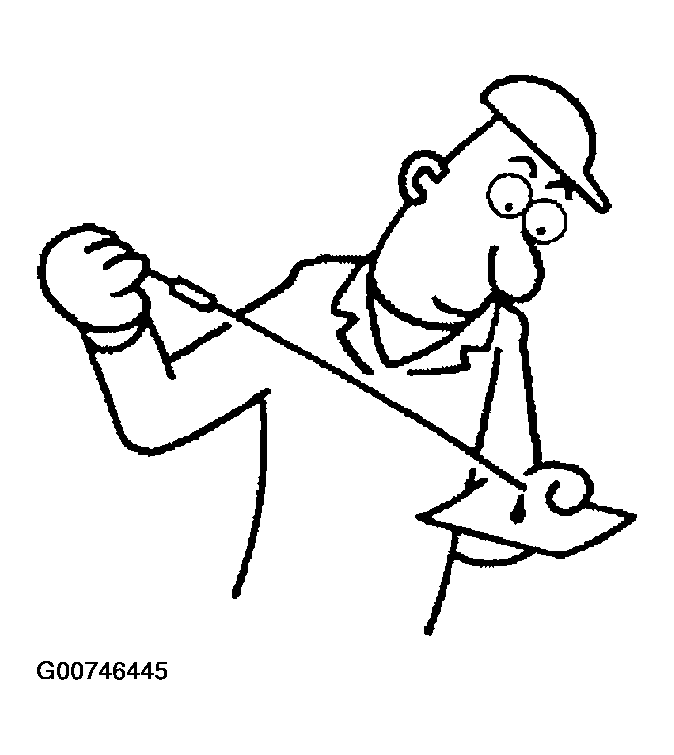

Fig 2: Inspecting Fluid Condition
G00746445Courtesy of NISSAN MOTOR CO., U.S.A.
