Display item list

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

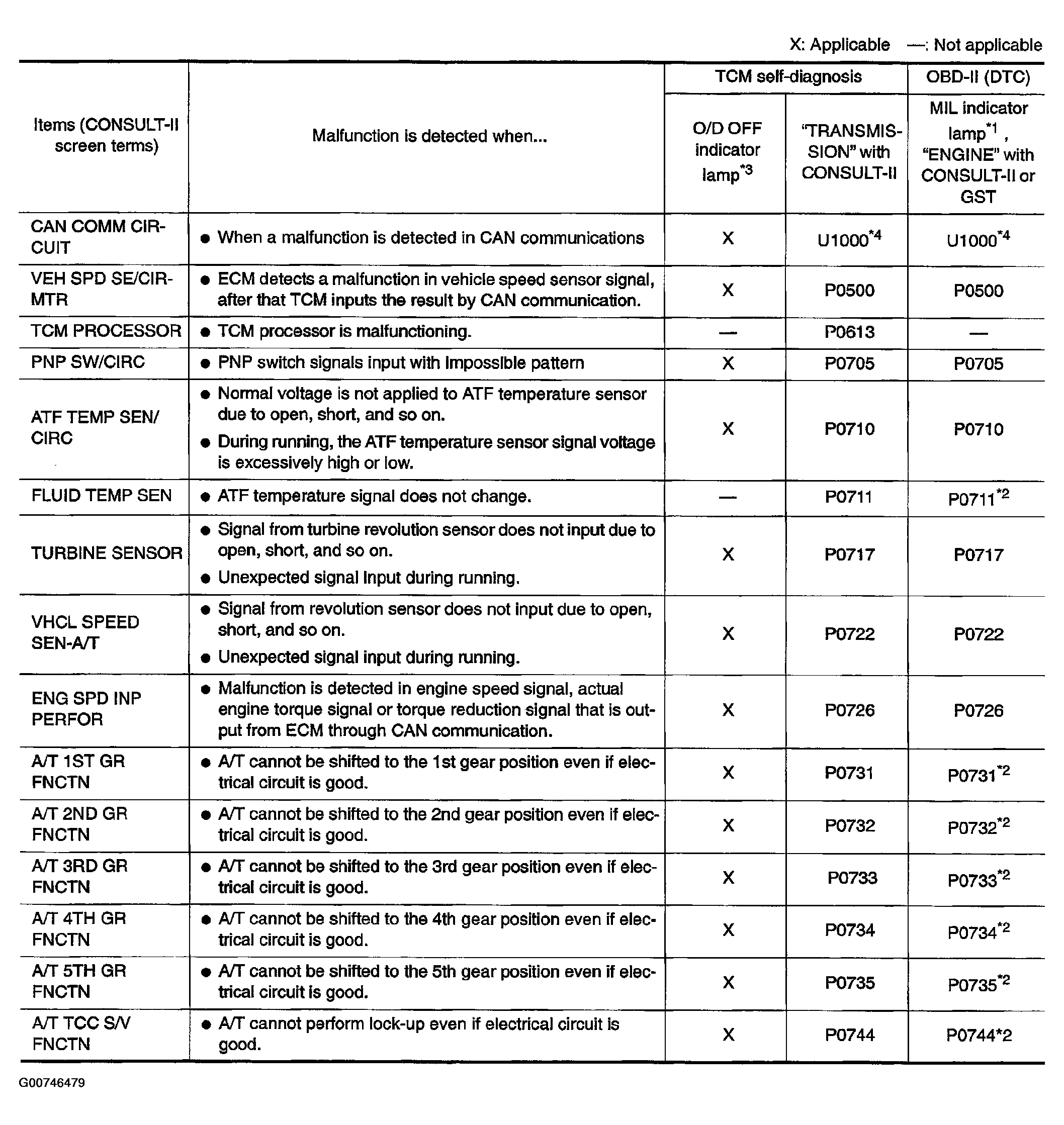

Fig 1: Identifying Display Item List (1 Of 2)
G00746479Courtesy of NISSAN MOTOR CO., U.S.A.

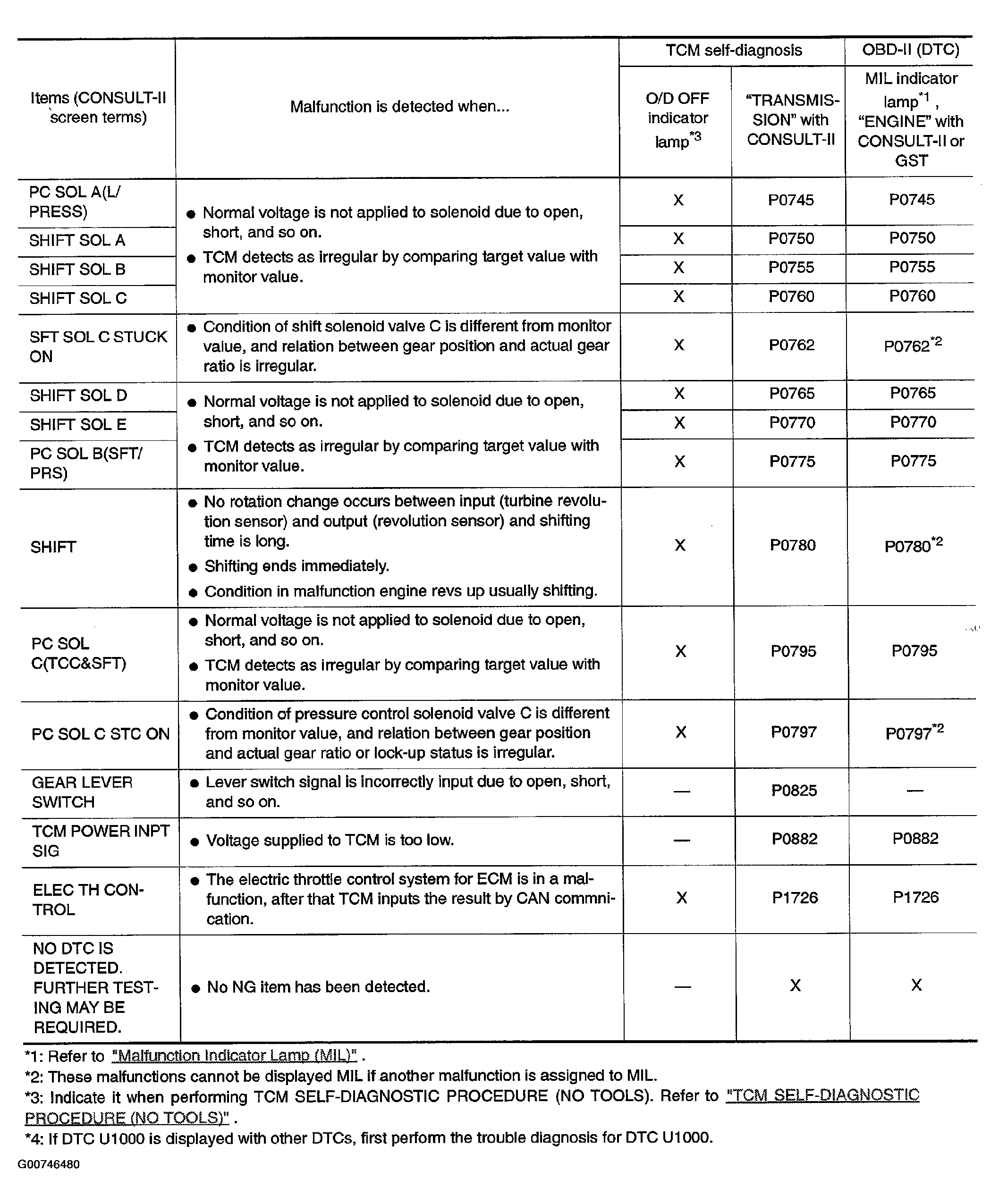

Fig 2: Identifying Display Item List (2 Of 2)
G00746480Courtesy of NISSAN MOTOR CO., U.S.A.
