Consult-II Setting Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

For details, refer to the separate "CONSULT-II Operations Manual".
1. Turn ignition switch "OFF".
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in driver instrument panel (lower).
3. Turn ignition switch "ON".

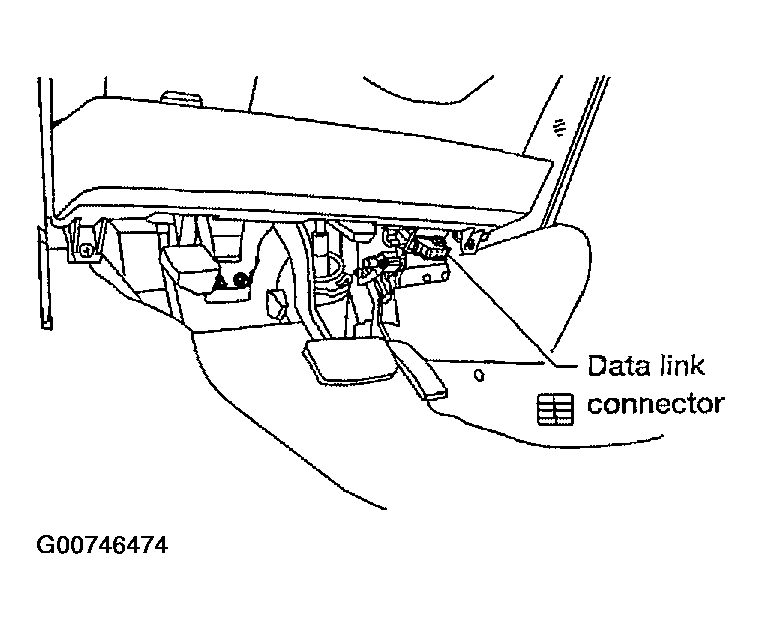

  Fig 1: Identifying Data Link Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Touch "START (NISSAN BASED VHCL)".

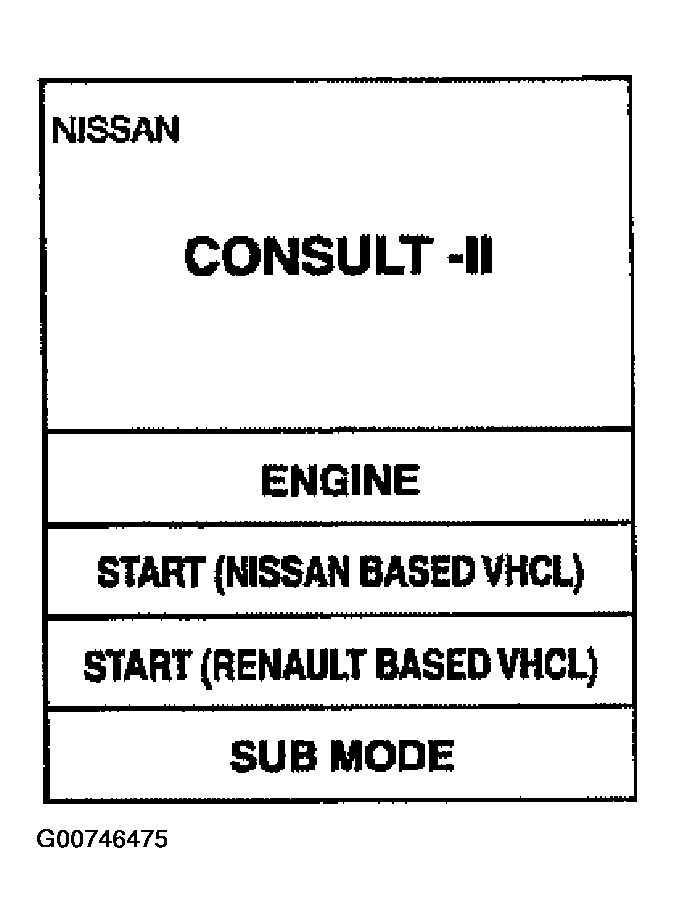

  Fig 2: CONSULT-II Display - Start (Nissan Based Vehicle)
  Courtesy of NISSAN MOTOR CO., U.S.A.
5. Touch "TRANSMISSION".
  If "TRANSMISSION" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".
6. Perform each diagnostic test mode according to each service procedure.

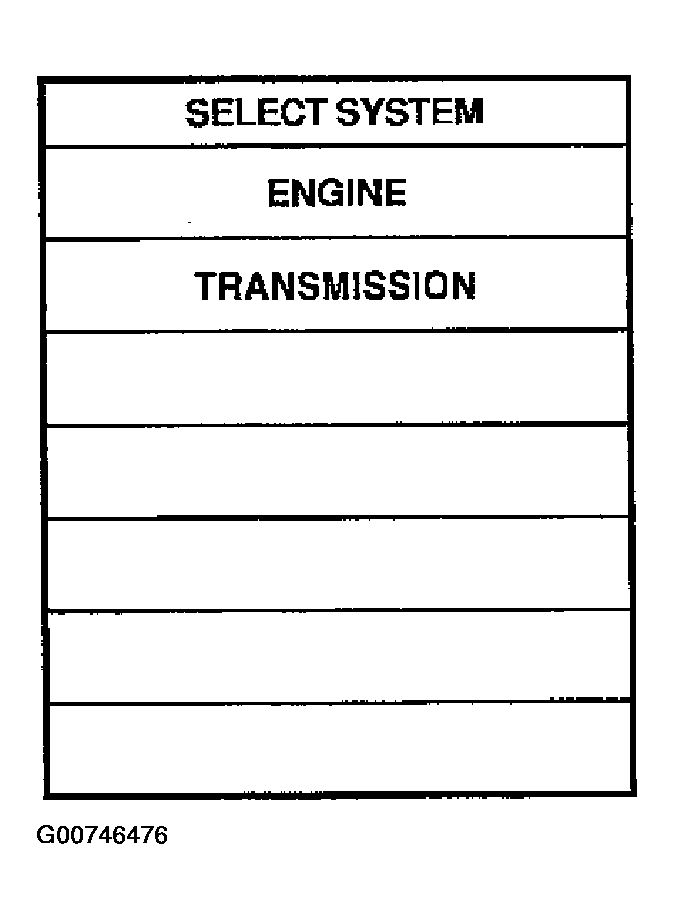

Fig 3: CONSULT-II Display - Transmission
Courtesy of NISSAN MOTOR CO., U.S.A.
