Solenoid Valves

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

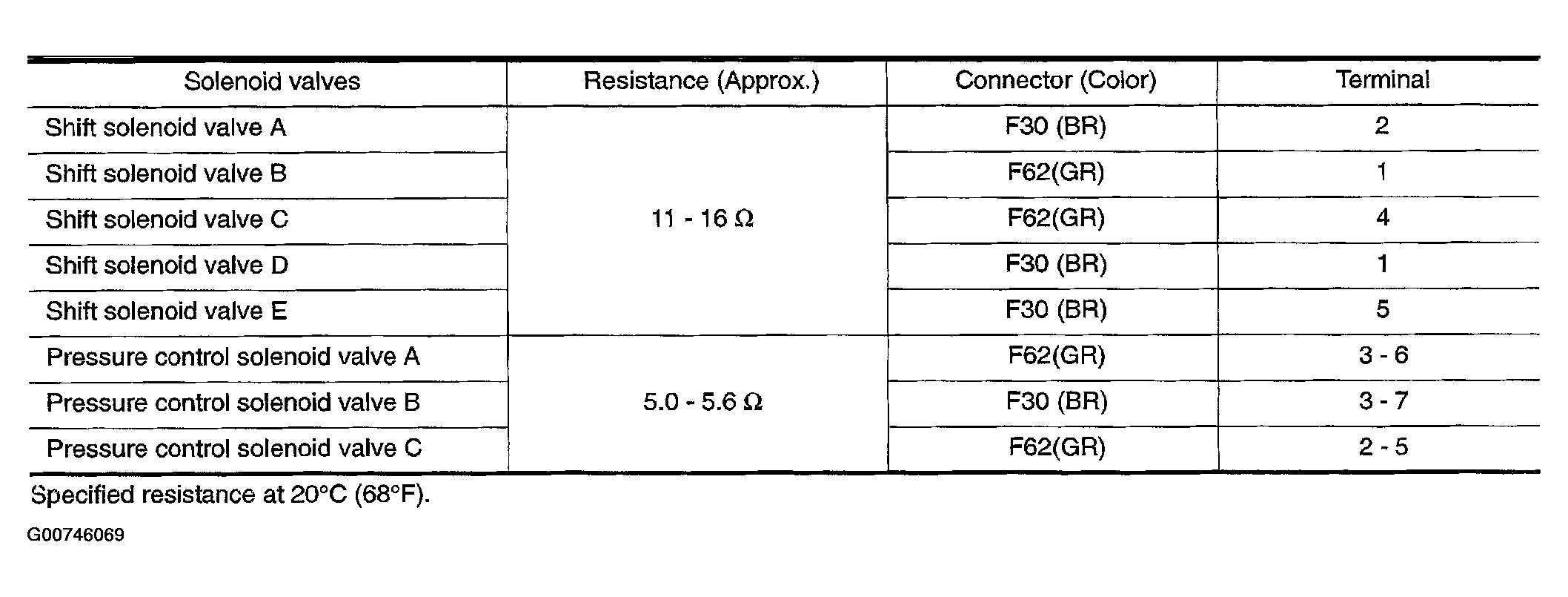

Fig 1: Solenoid Valves Resistance Specifications
G00746069Courtesy of NISSAN MOTOR CO., U.S.A.

Specified resistance at 20 °C (68 ° F).
