Shift Solenoid Valves

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

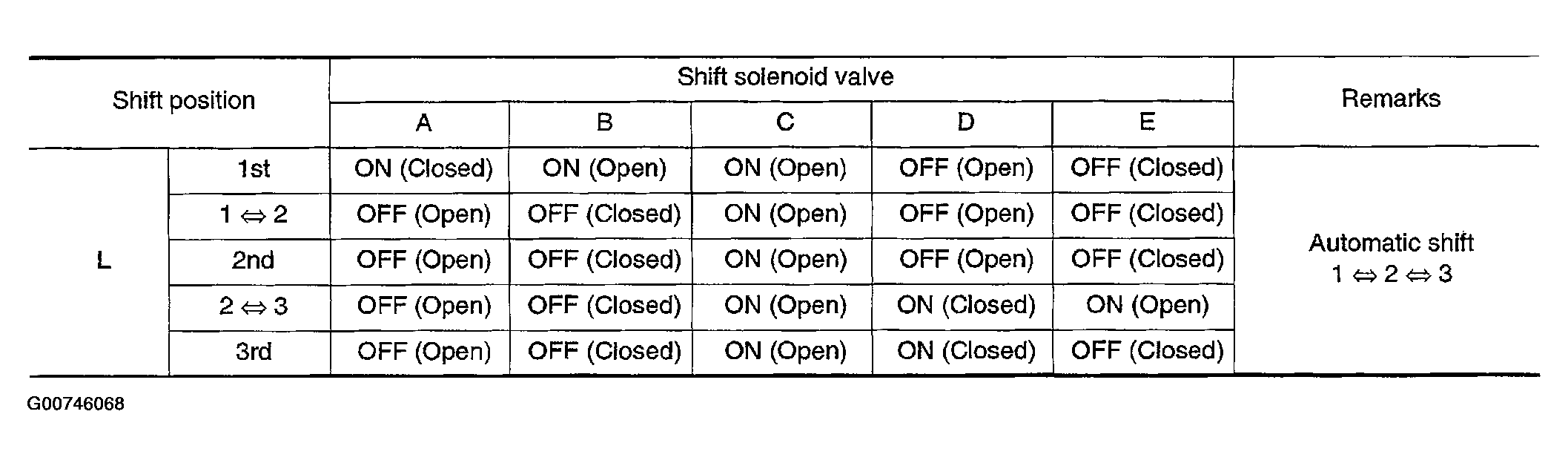

Fig 1: Shift Solenoid Valves Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

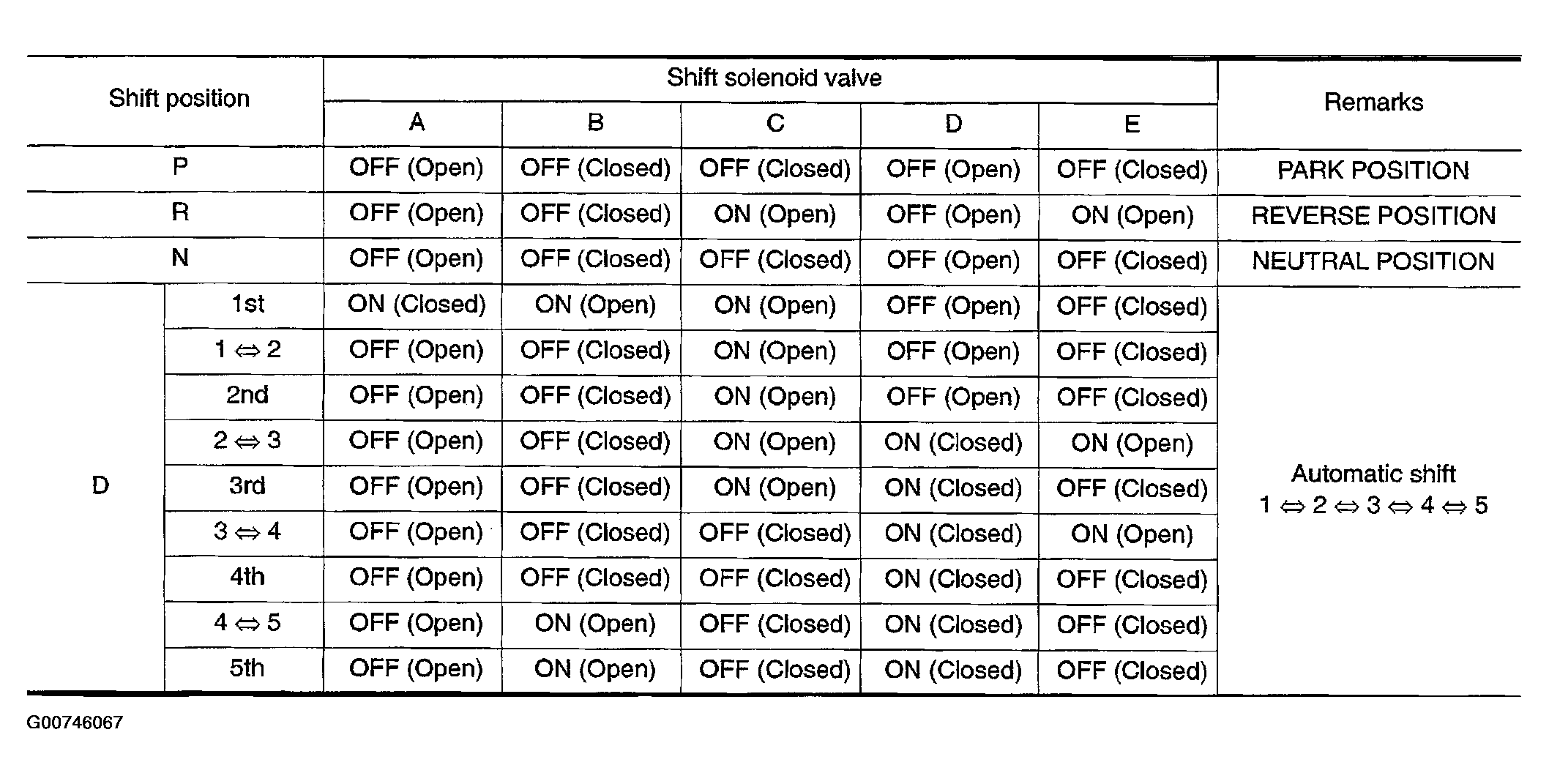

Fig 2: Shift Solenoid Valves Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: When shifting D to L position or lever switch sets in "ON" position (indicated O/D OFF indicator lamp), down shift permission control is activated. Refer to "DOWN SHIFT PERMISSION CONTROL ".
