Section 1056 (Automatic Transaxle Overhaul & Diagnostics): Re5F22A: Overhaul: Components

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

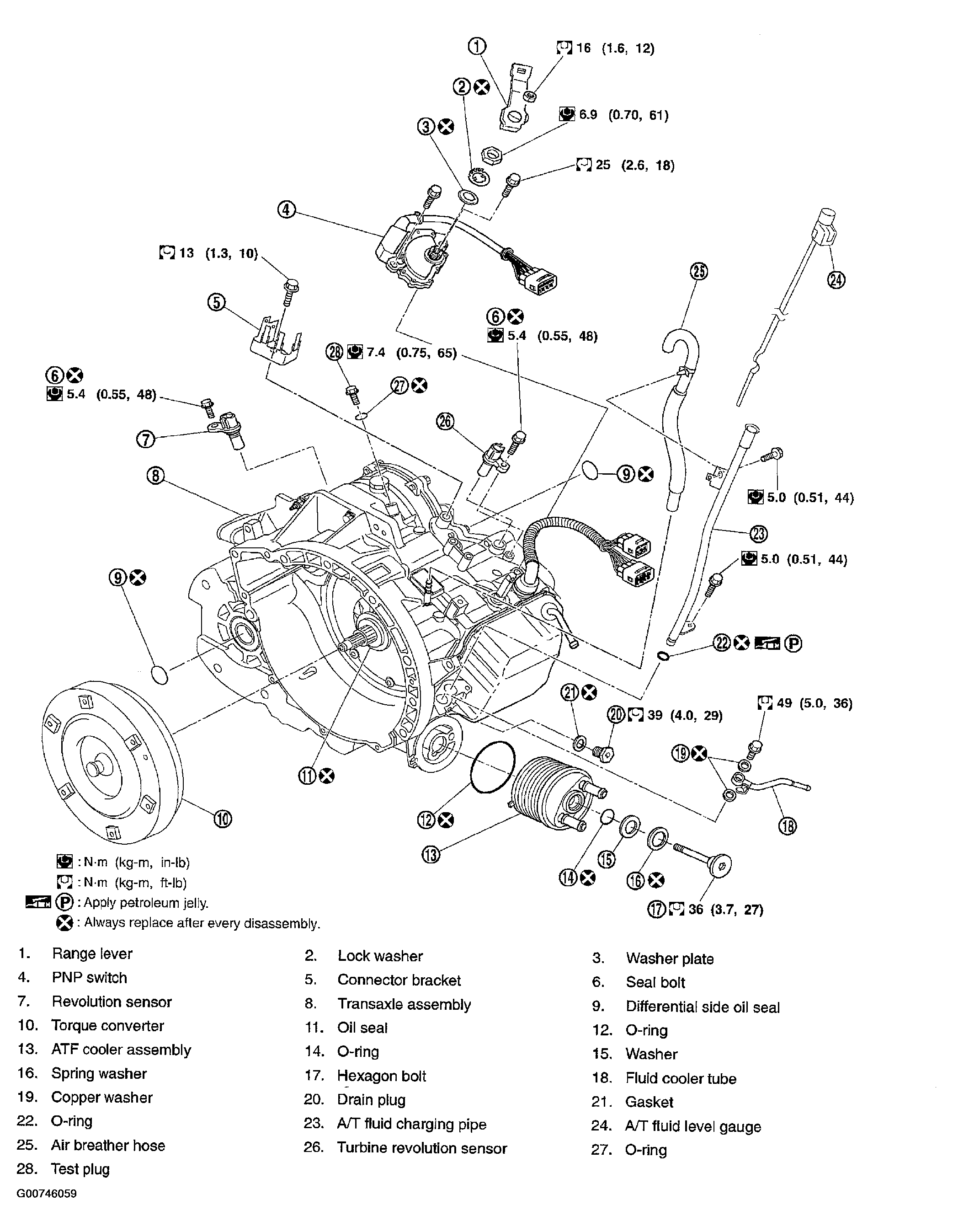

Fig 1: Identifying Overhaul Components

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Replace 8 and 10 as a set.
