Turbine Revolution Sensor Replacement

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove battery and bracket.
  2. Disconnect electrical connector.
  3. Remove bolt, and turbine revolution sensor from A/T.
  4. Installation is in the reverse order of removal.

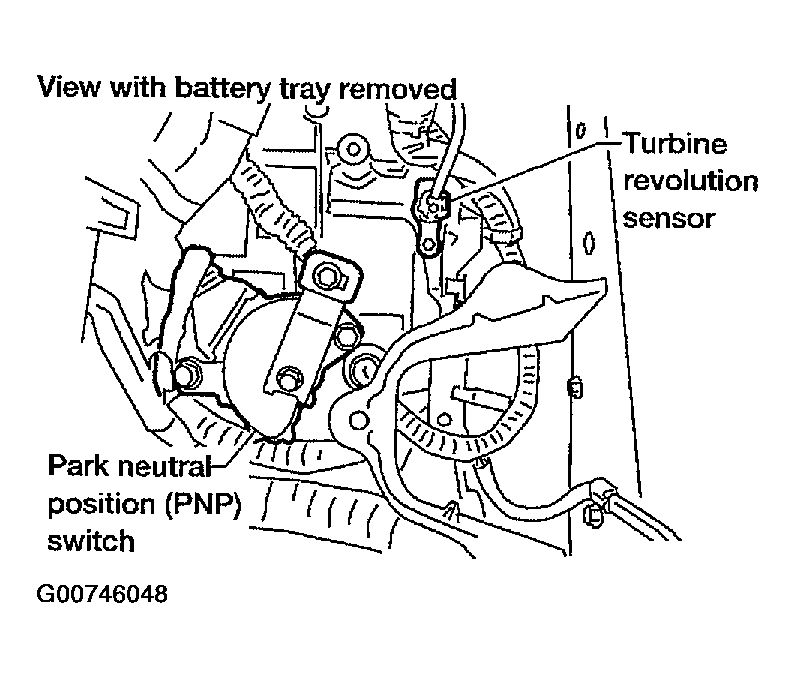

    Fig 1: Removing Turbine Revolution Sensor From A/T
    G00746048Courtesy of NISSAN MOTOR CO., U.S.A.
