Revolution Sensor Replacement

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove intake air duct.
  2. Disconnect electrical connector.
  3. Remove revolution sensor from A/T.
  4. Installation is in the reverse order of removal.

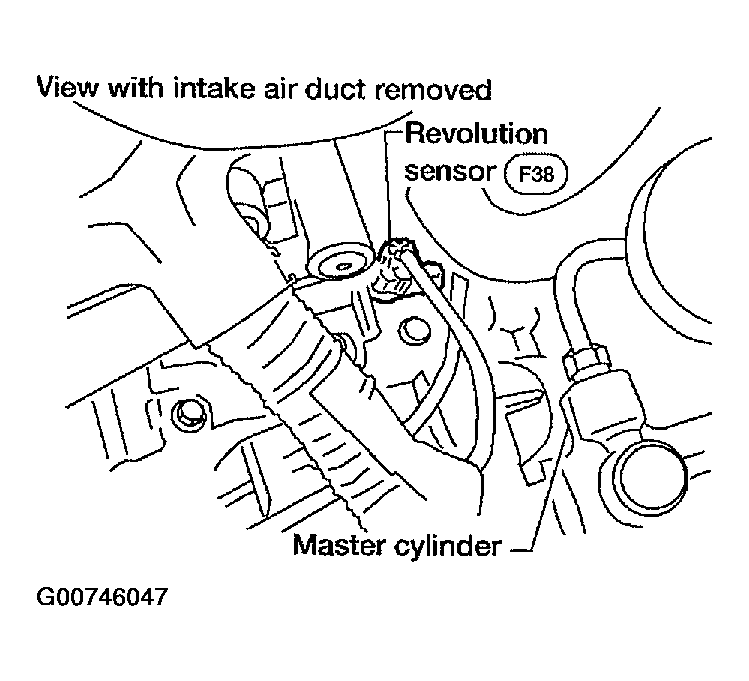

    Fig 1: Removing Revolution Sensor From A/T
    G00746047Courtesy of NISSAN MOTOR CO., U.S.A.
