ATF Cooler Valve: Notes
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

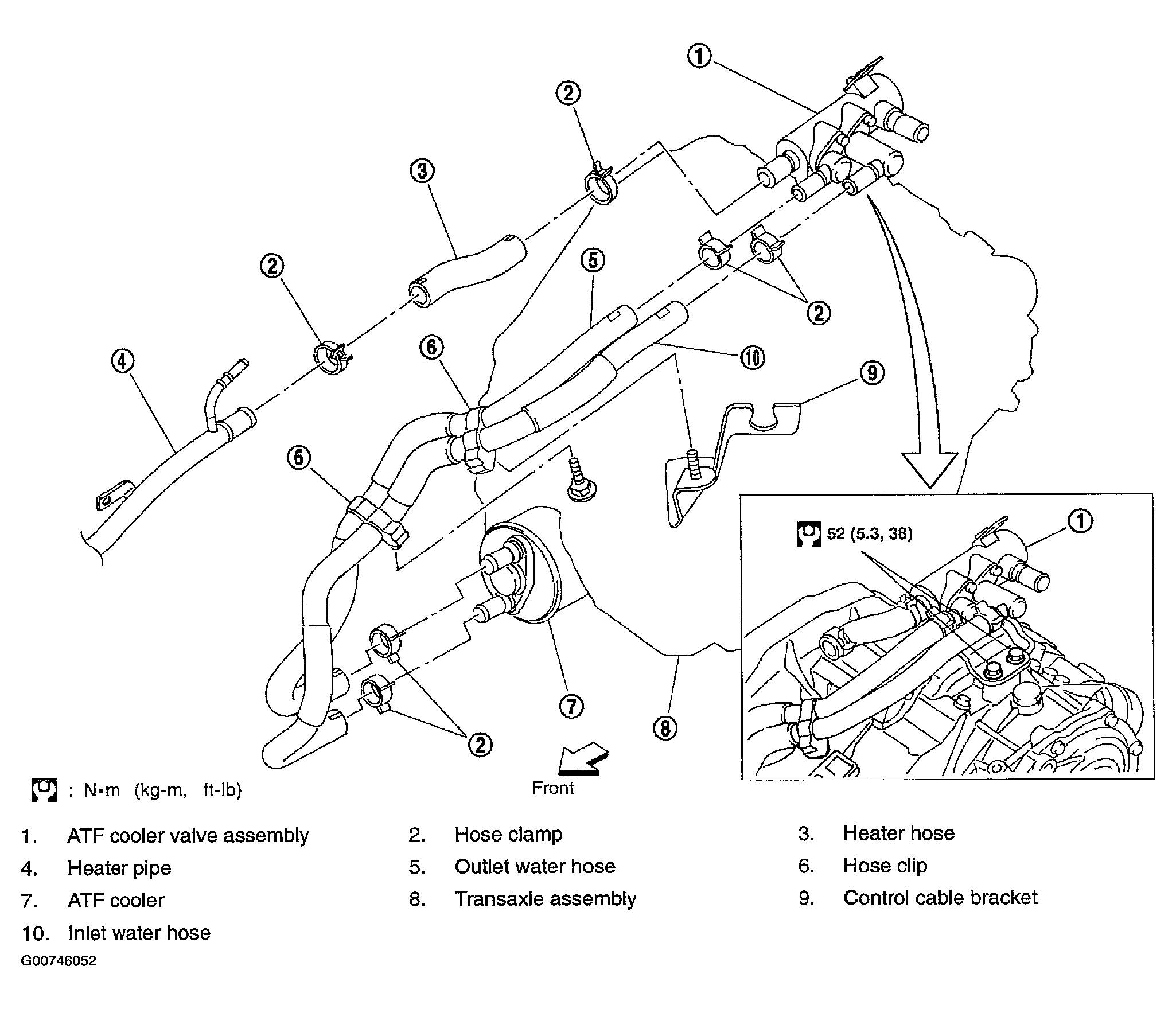

Refer to the figure for ATF cooler valve and hoses removal and installation information.
CAUTION:
Mounting direction of hose clamps and paint mark direction of water hoses should be same as shown in the figure.
Courtesy of NISSAN MOTOR CO., U.S.A.
