Component Inspection

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

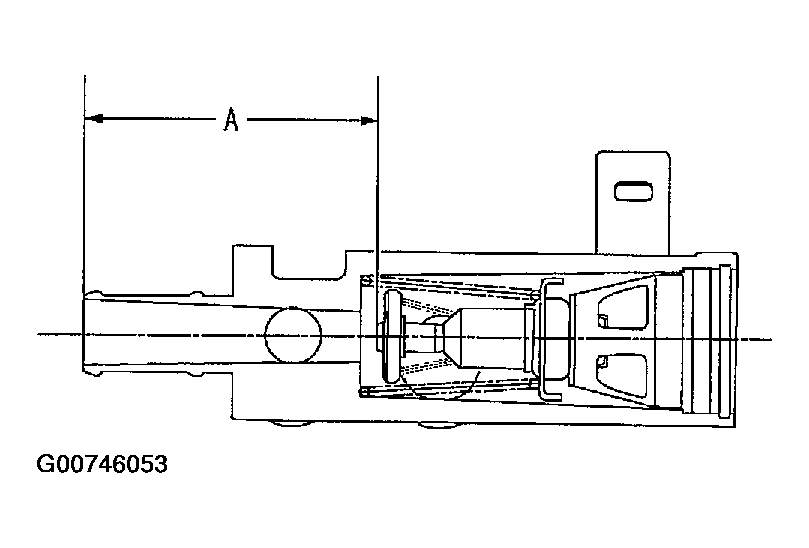

Make sure that ATF cooler valve is fully opened at room temperature.
Dimension "A": More than 72.0 mm (2.835 in)

A: Distance between ATF cooler valve port end face and valve shaft end face .

Fig 1: Checking Distance Between ATF Cooler Valve Port End Face And Valve Shaft End Face
Courtesy of NISSAN MOTOR CO., U.S.A.

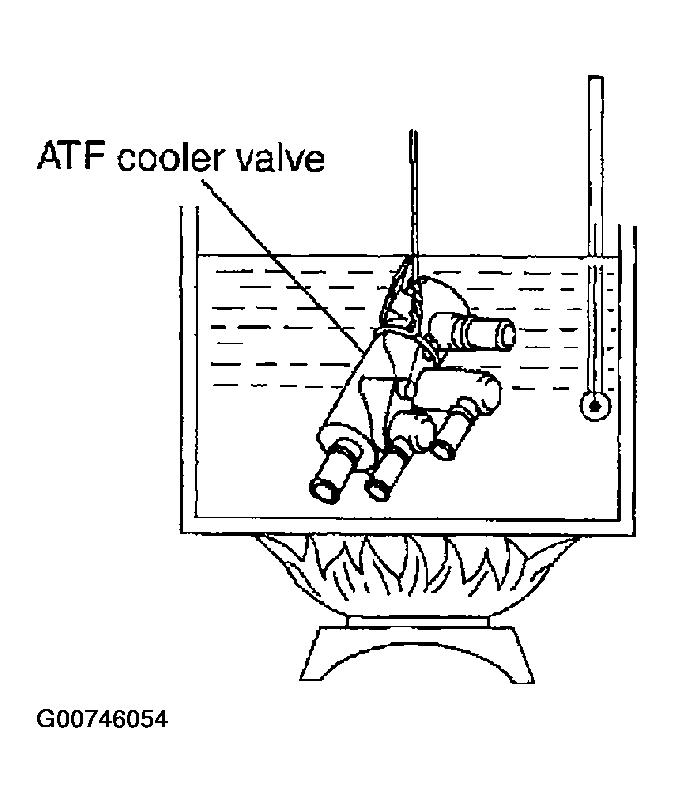

Submerge ATF cooler valve in a water-filled container, and then heat it up with temperature of over 82°C (180°F) for 10 minutes more.

Fig 2: Identifying ATF Cooler Valve
Courtesy of NISSAN MOTOR CO., U.S.A.

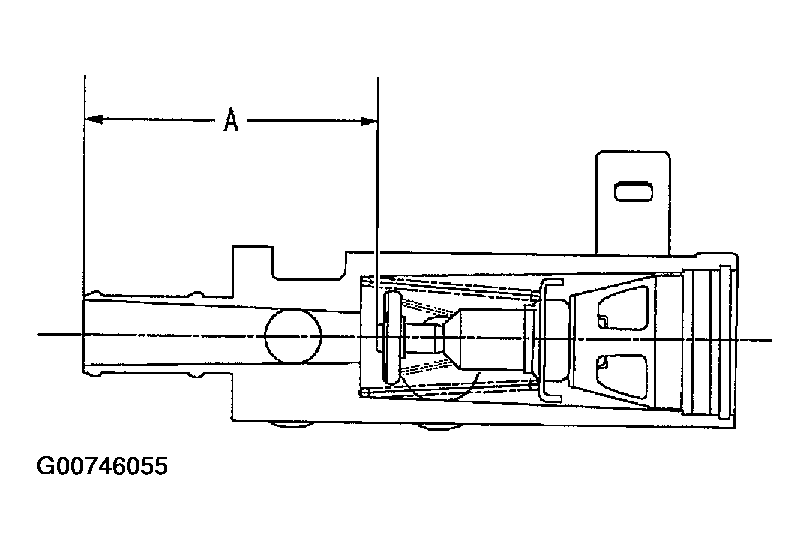

Make sure that ATF cooler valve is fully closed.
Dimension "A": Less than 66.5 mm (2.618 in)

A: Distance between ATF cooler valve port end face and valve shaft end face .

Fig 3: Checking Distance Between ATF Cooler Valve Port End Face And Valve Shaft End Face
Courtesy of NISSAN MOTOR CO., U.S.A.
