Key Interlock Cable: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unlock slider by squeezing lock tabs on slider from adjuster holder.
  2. Remove casing cap from bracket of control device and remove interlock rod from cable.

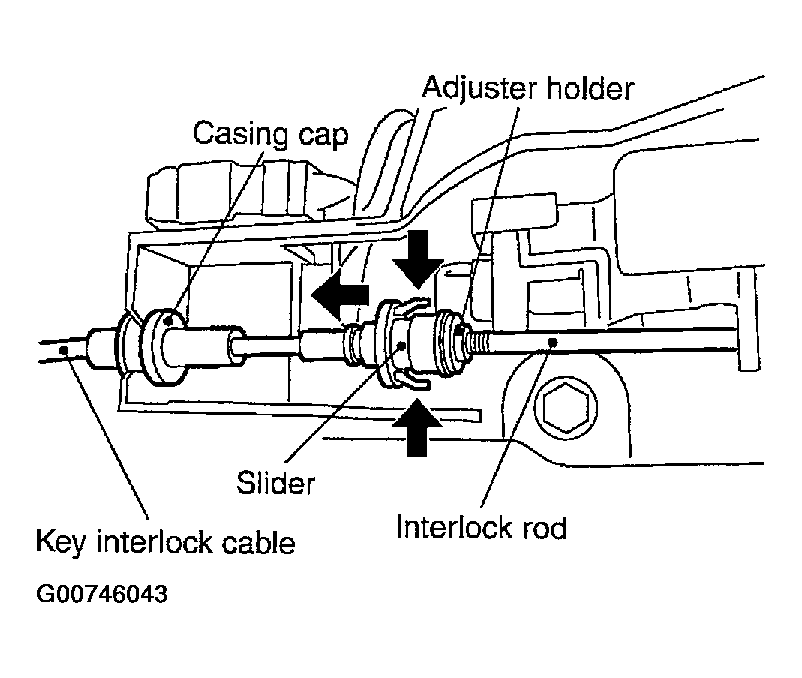

    Fig 1: Removing Casing Cap From Bracket Of Control Device
    G00746043Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove holder from key cylinder and remove key interlock cable.

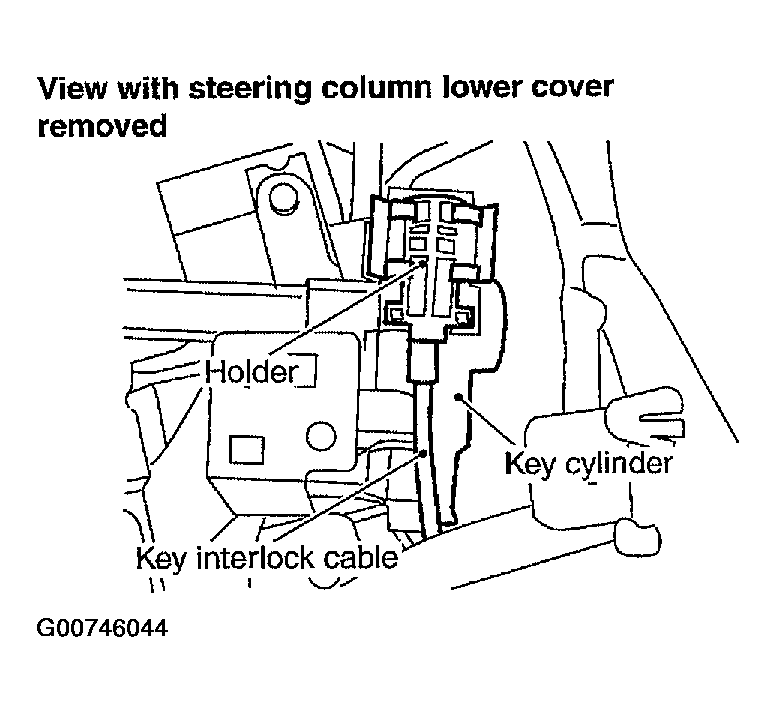

    Fig 2: Removing Holder From Key Cylinder
    G00746044Courtesy of NISSAN MOTOR CO., U.S.A.
