Wiring Diagram -- AT -- CAN

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

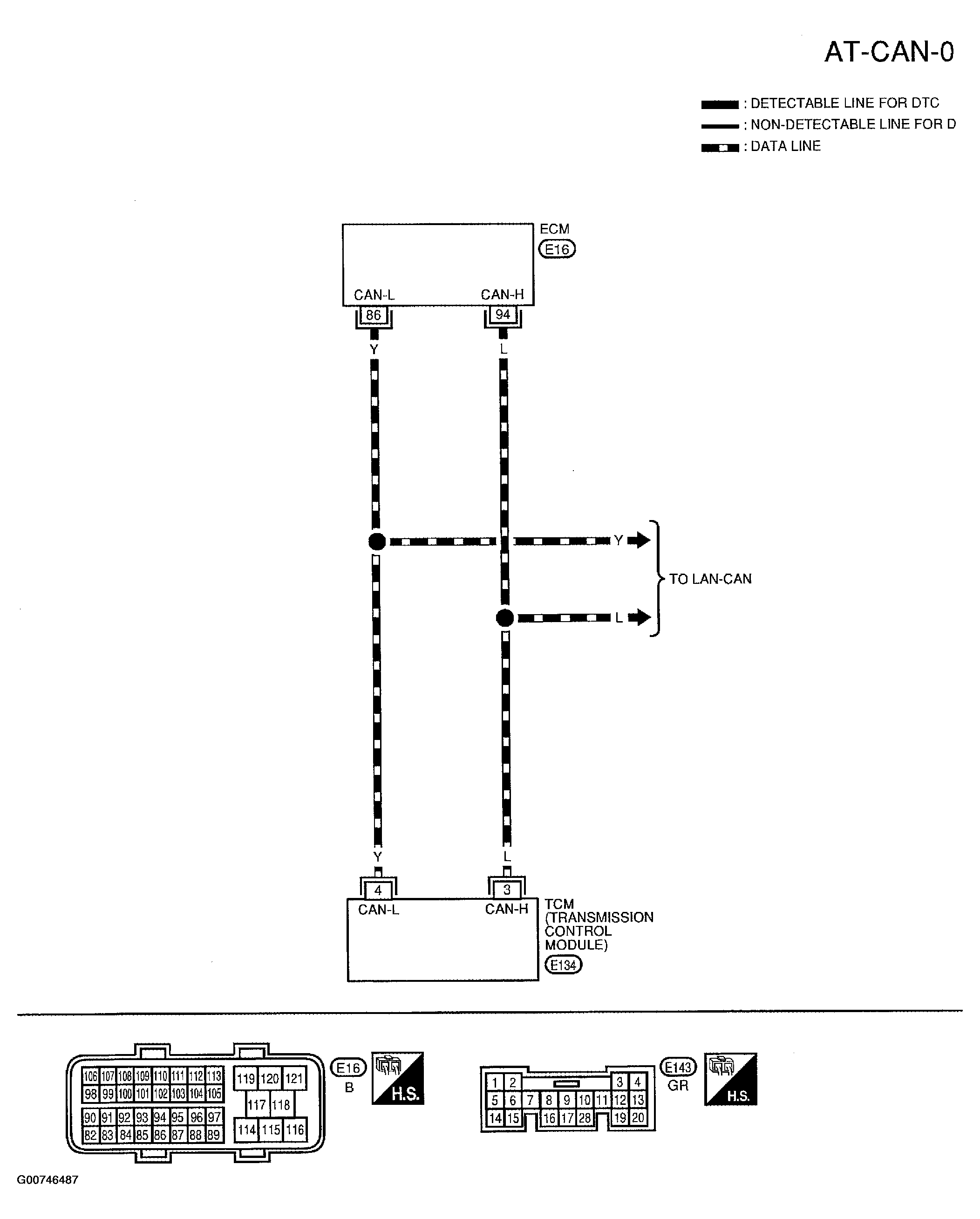

Fig 1: Wiring Diagram AT-CAN-0
G00746487Courtesy of NISSAN MOTOR CO., U.S.A.

TCM terminals and data are reference value.

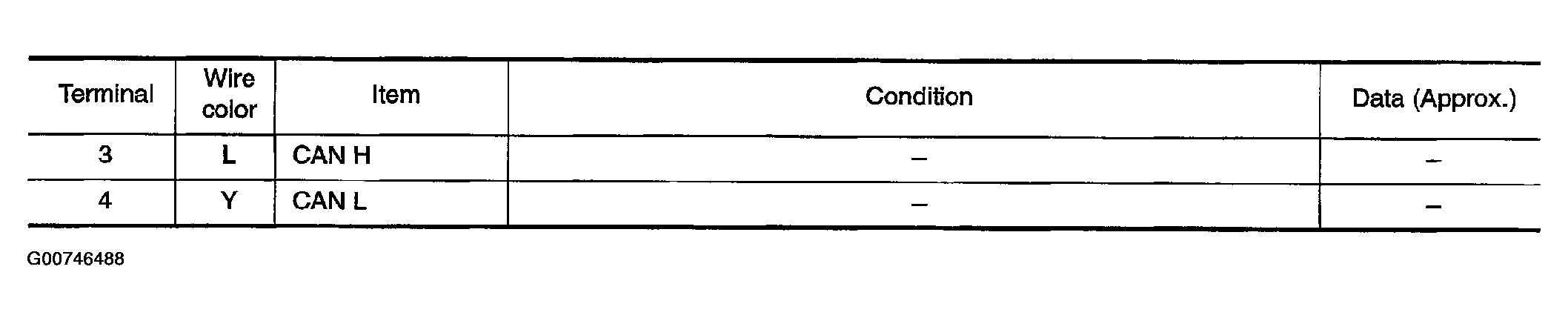

Fig 2: TCM Terminals And Data Are Reference Value
G00746488Courtesy of NISSAN MOTOR CO., U.S.A.
