Diagnostic Procedure: Notes

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch "ON" and start engine.
2. Select "SELF-DIAG RESULTS" mode for "TRANSMISSION" with in CONSULT-II.
3. The "CAN COMM CIRCUIT" is detected.

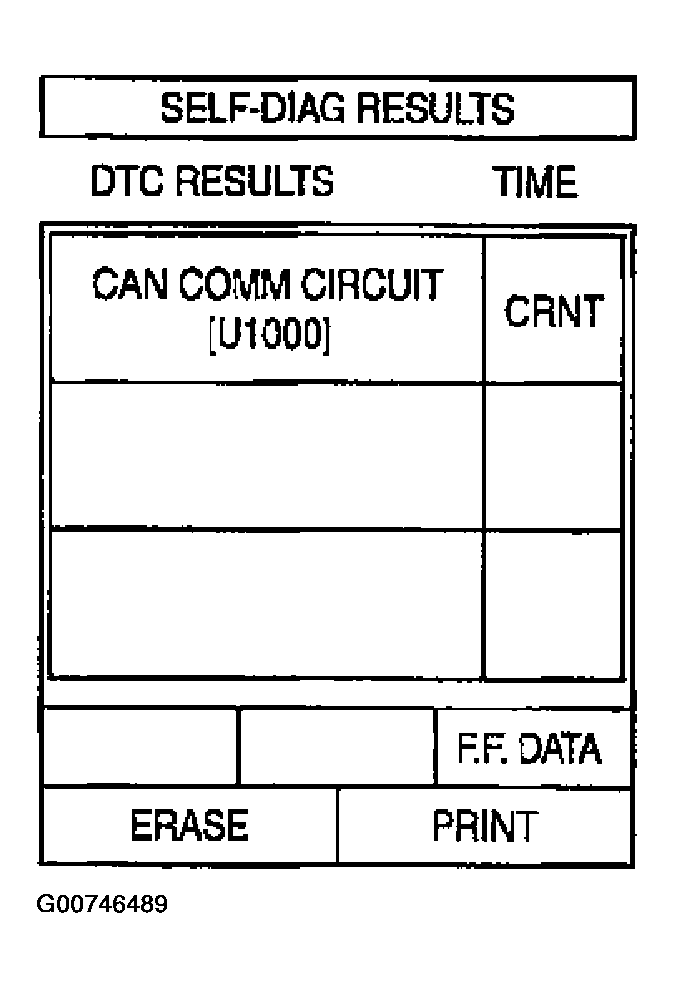

  Fig 1: CONSULT-II Display - Self-Diag Results
  Courtesy of NISSAN MOTOR CO., U.S.A.
Yes or No?
1. Yes: Print out CONSULT-II screen, GO TO 2.
2. No: INSPECTION END
CHECK CAN COMMUNICATION SIGNALS
With CONSULT-II
1. Turn ignition switch "ON" and start engine.
2. Select "CAN DIAG SUPPORT MNTR" in "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-II.
1. : Print out CONSULT-II screen, go to "CAN COMMUNICATION ".
